Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the Body ECU.

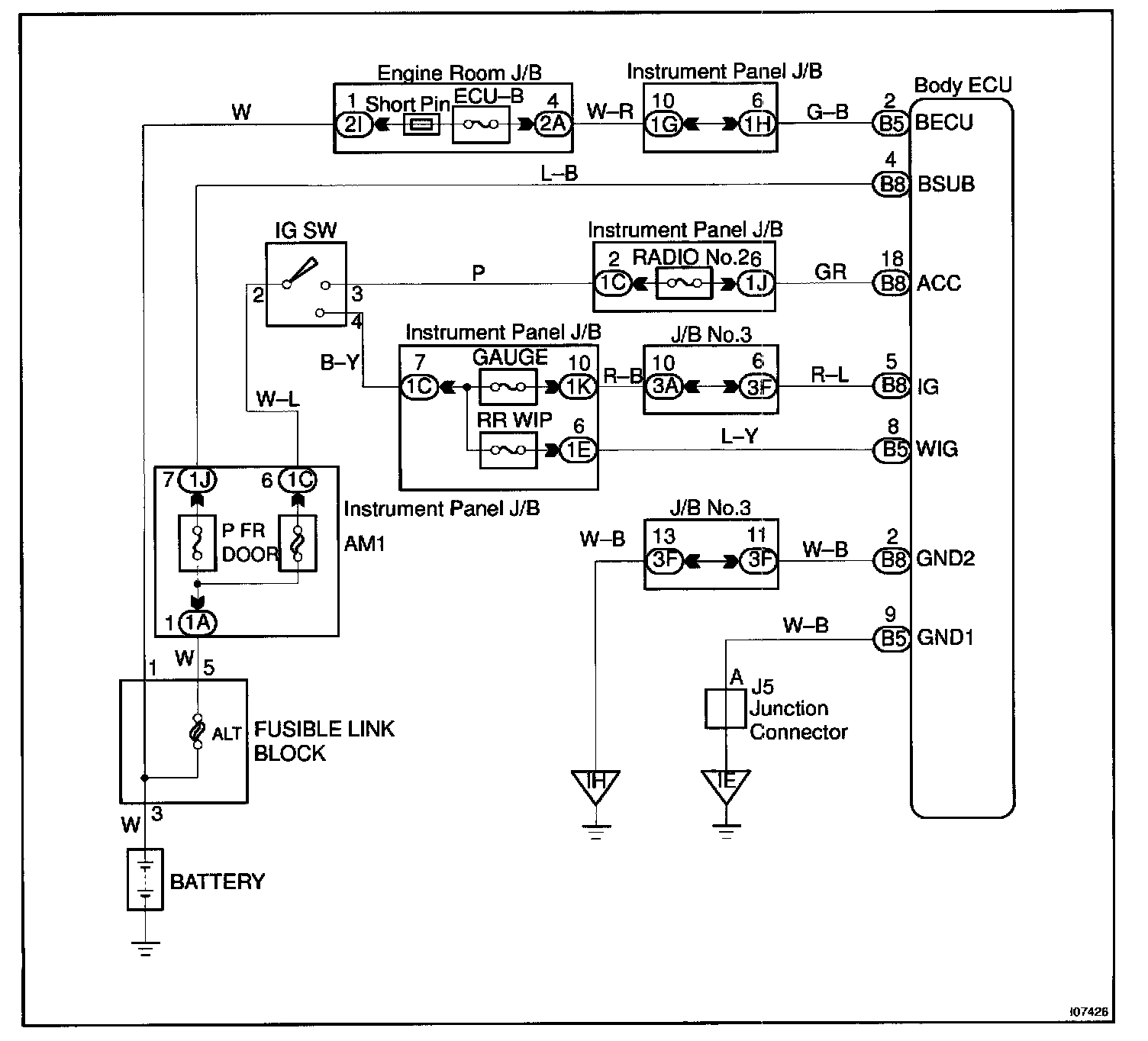

Wiring Diagram:






Steps 1 - 2:




Step 3:

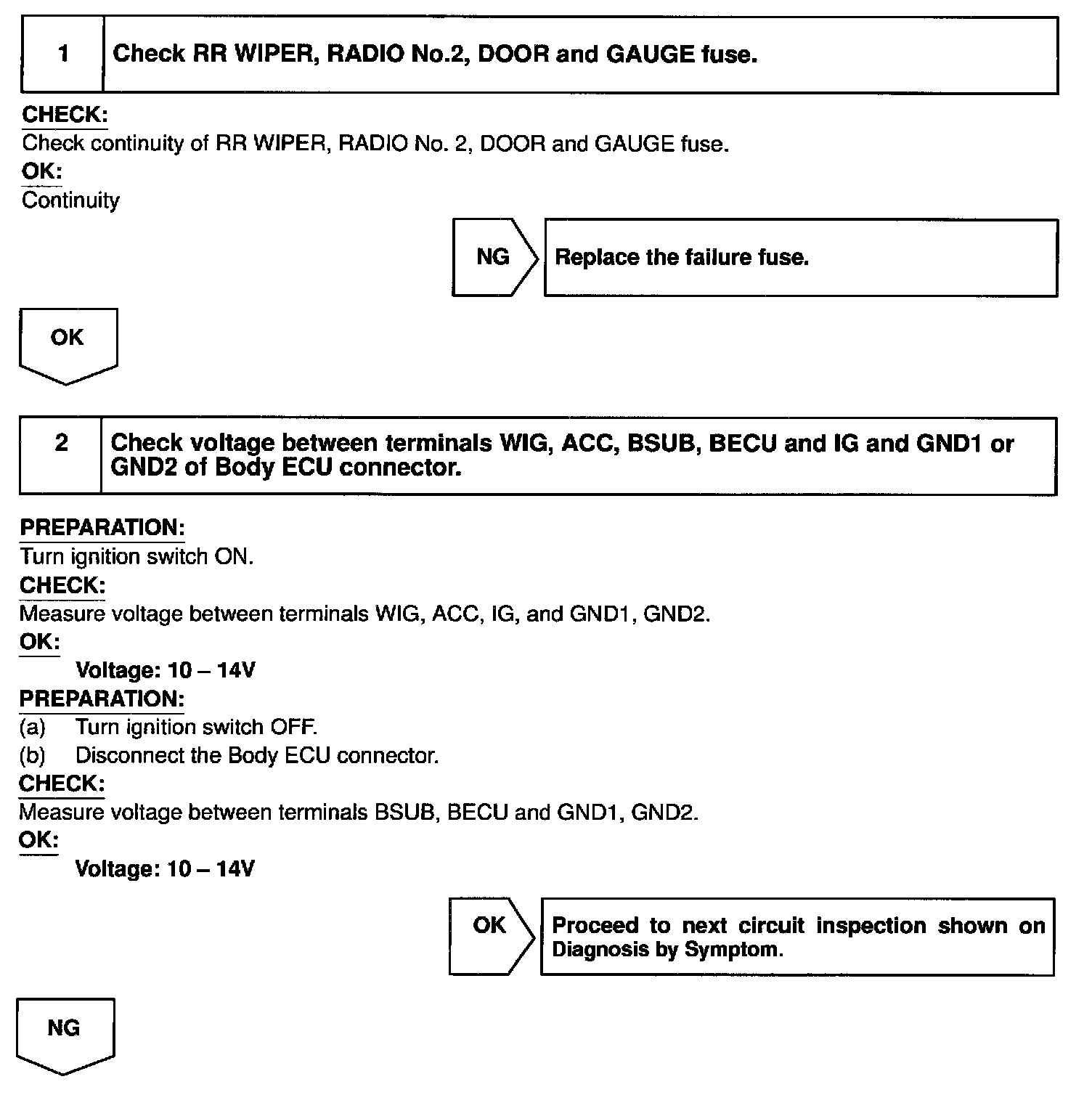

INSPECTION PROCEDURE
