Service Data

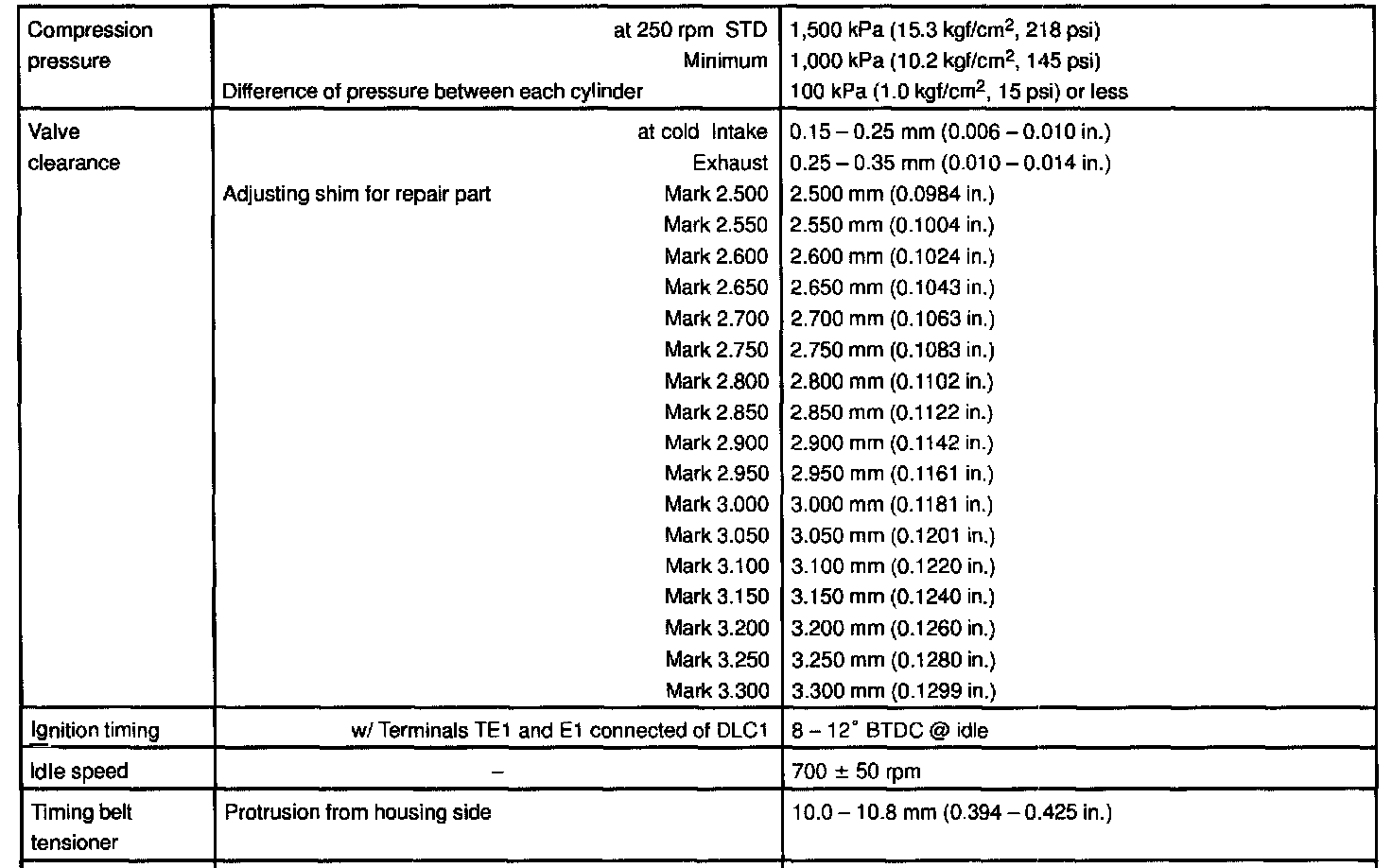

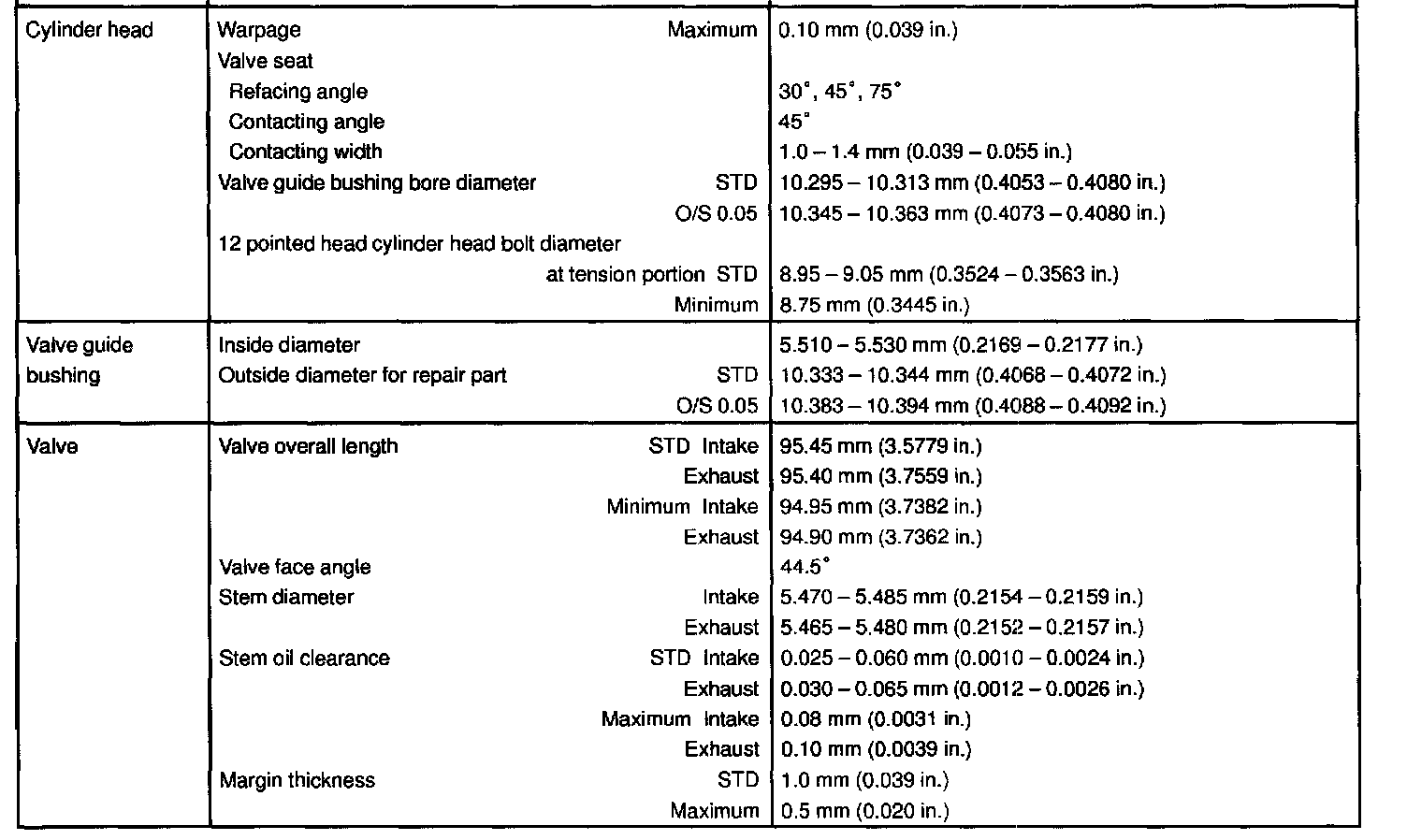

3.0L Engine Mechanical Data:

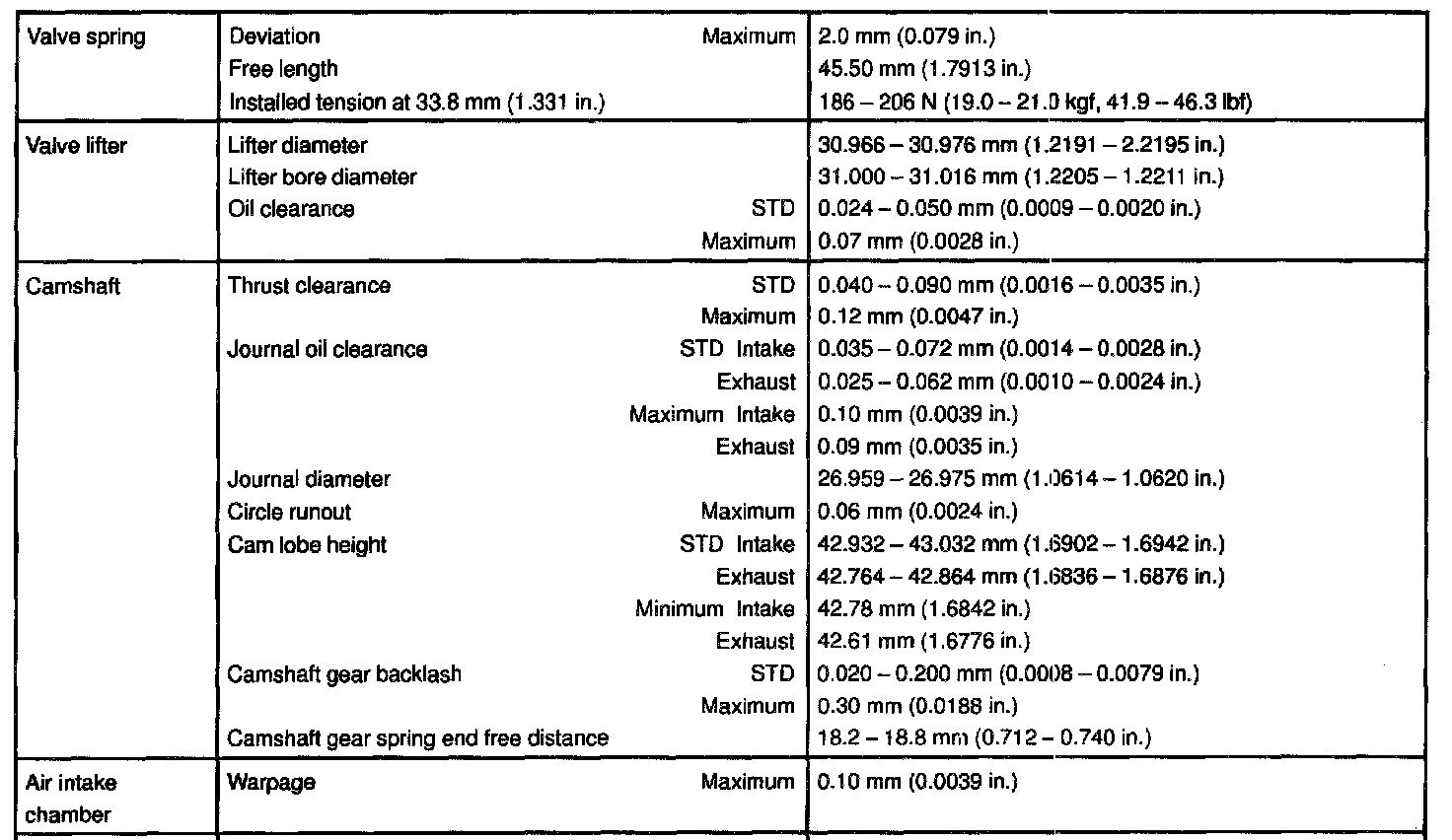

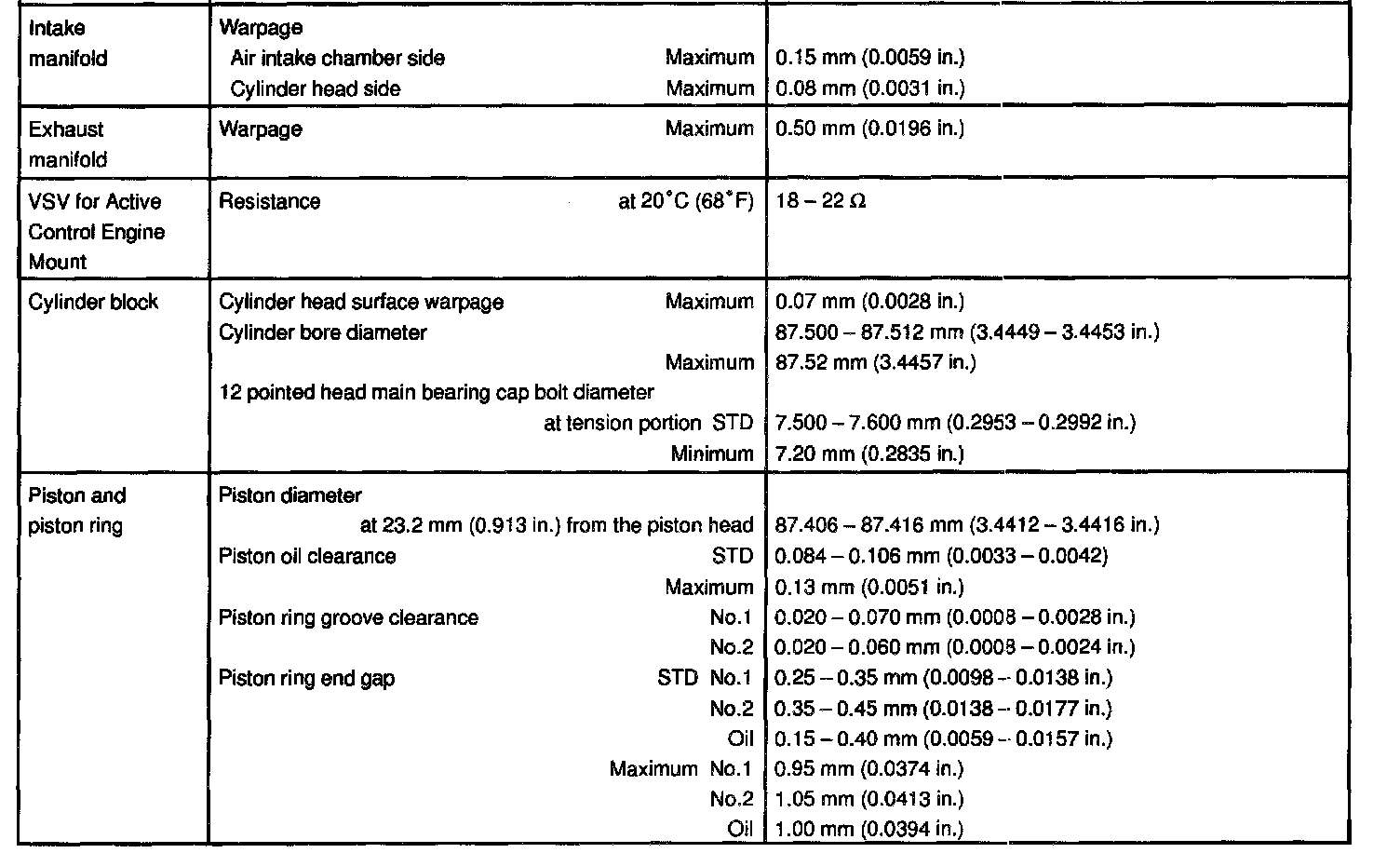

3.0L Engine Mechanical Cont.:

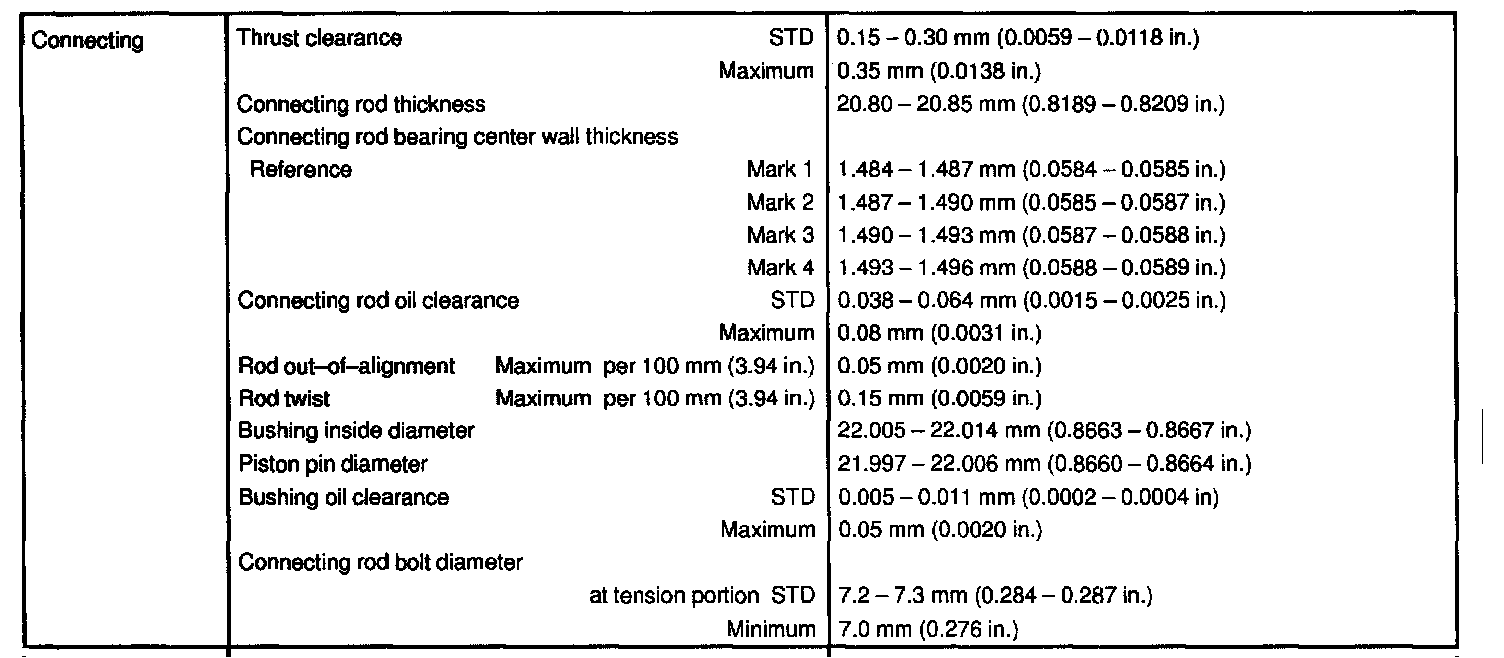

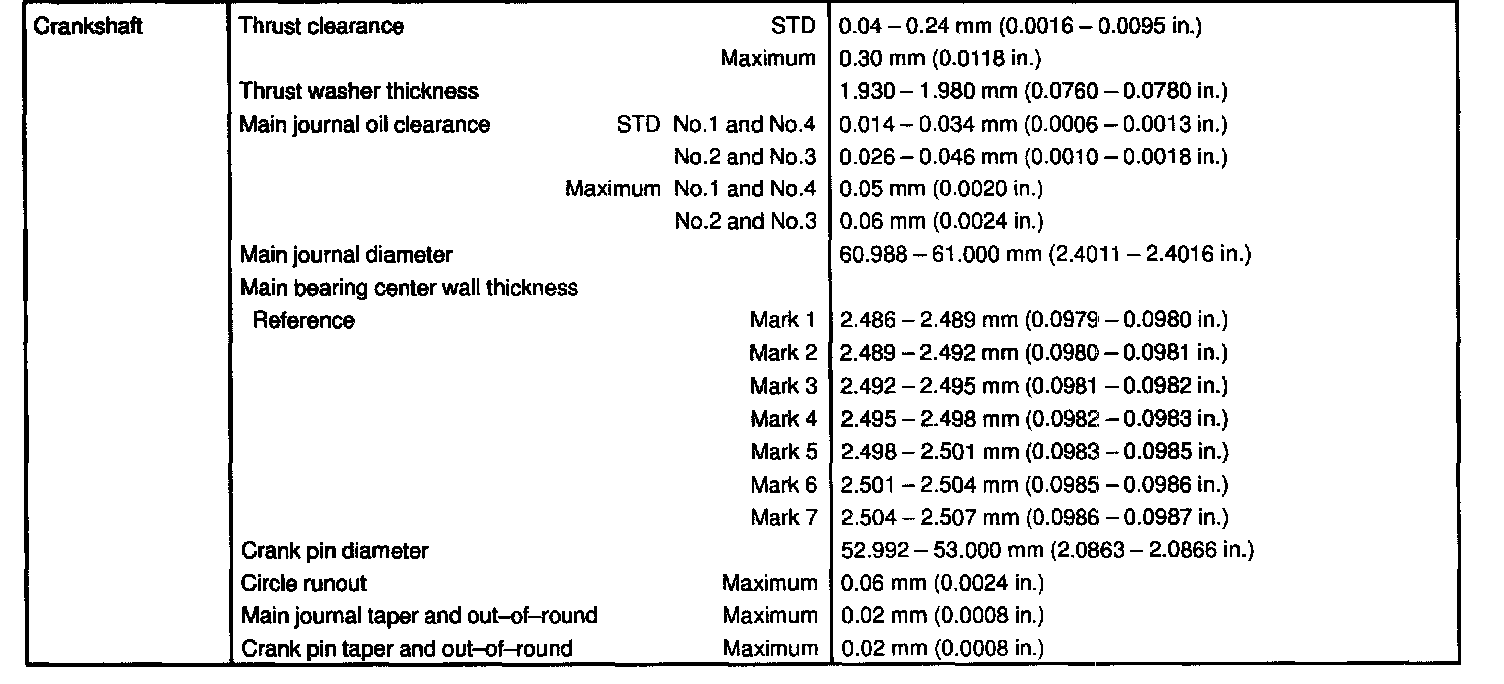

3.0L Engine Mechanical Cont.:

3.0L Engine Mechanical Cont.:

3.0L Engine Mechanical Cont.:

3.0L Engine Mechanical Cont.:

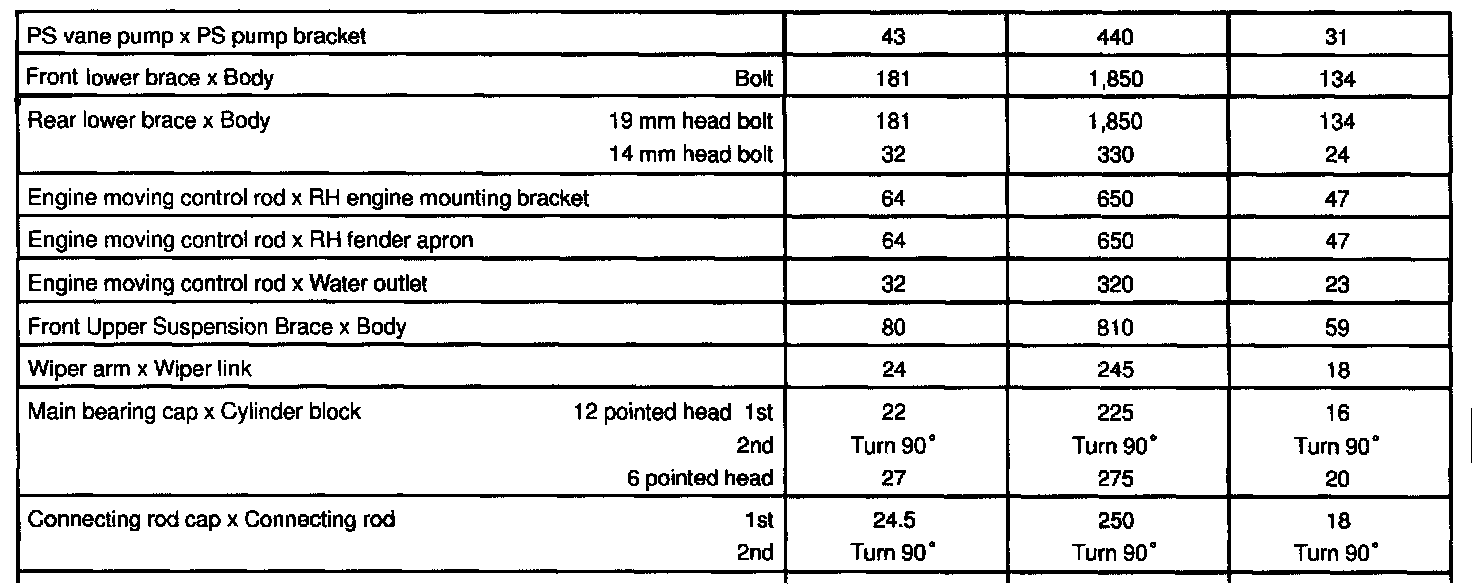

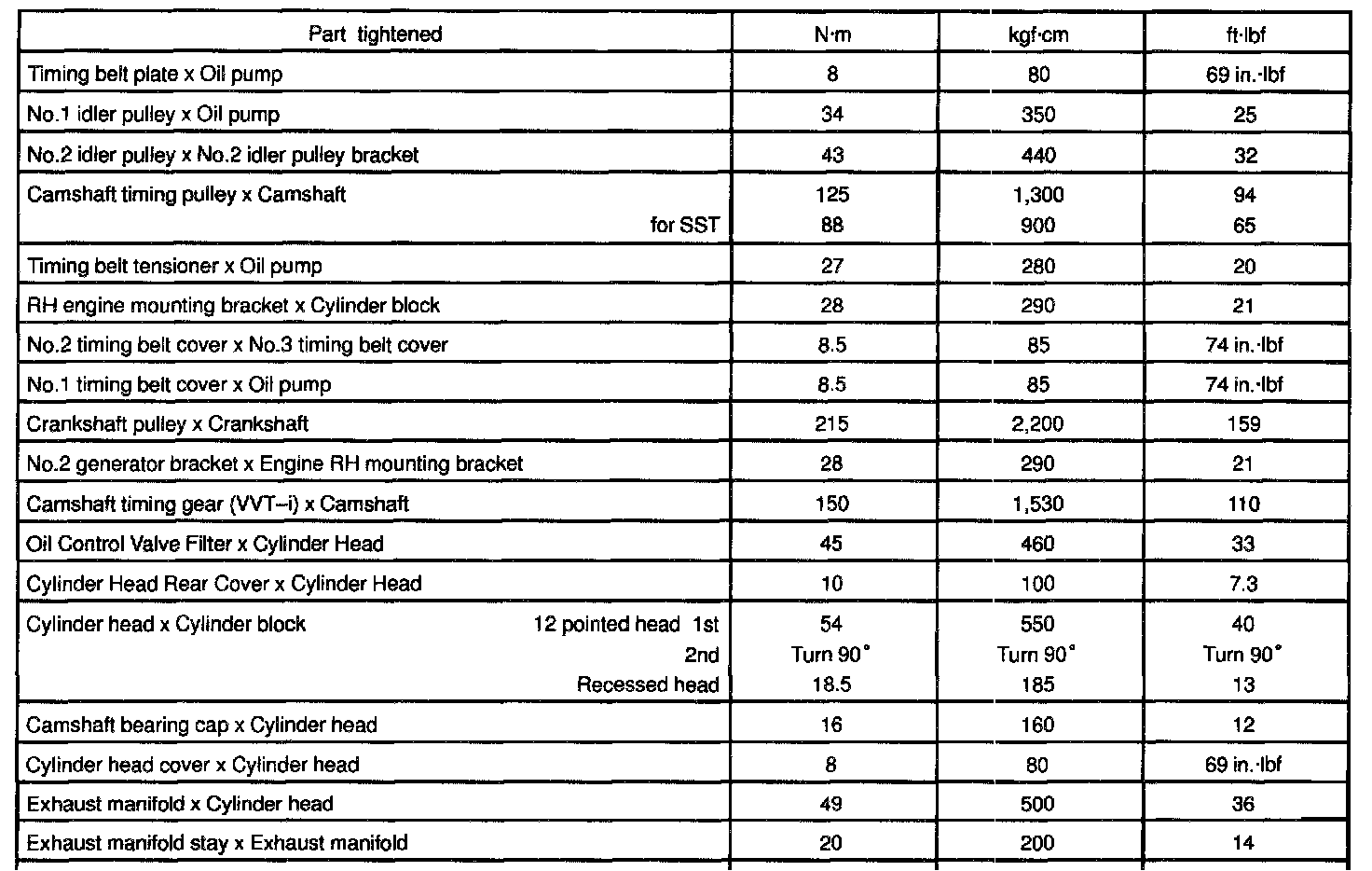

3.0L Engine Mechanical Torque:

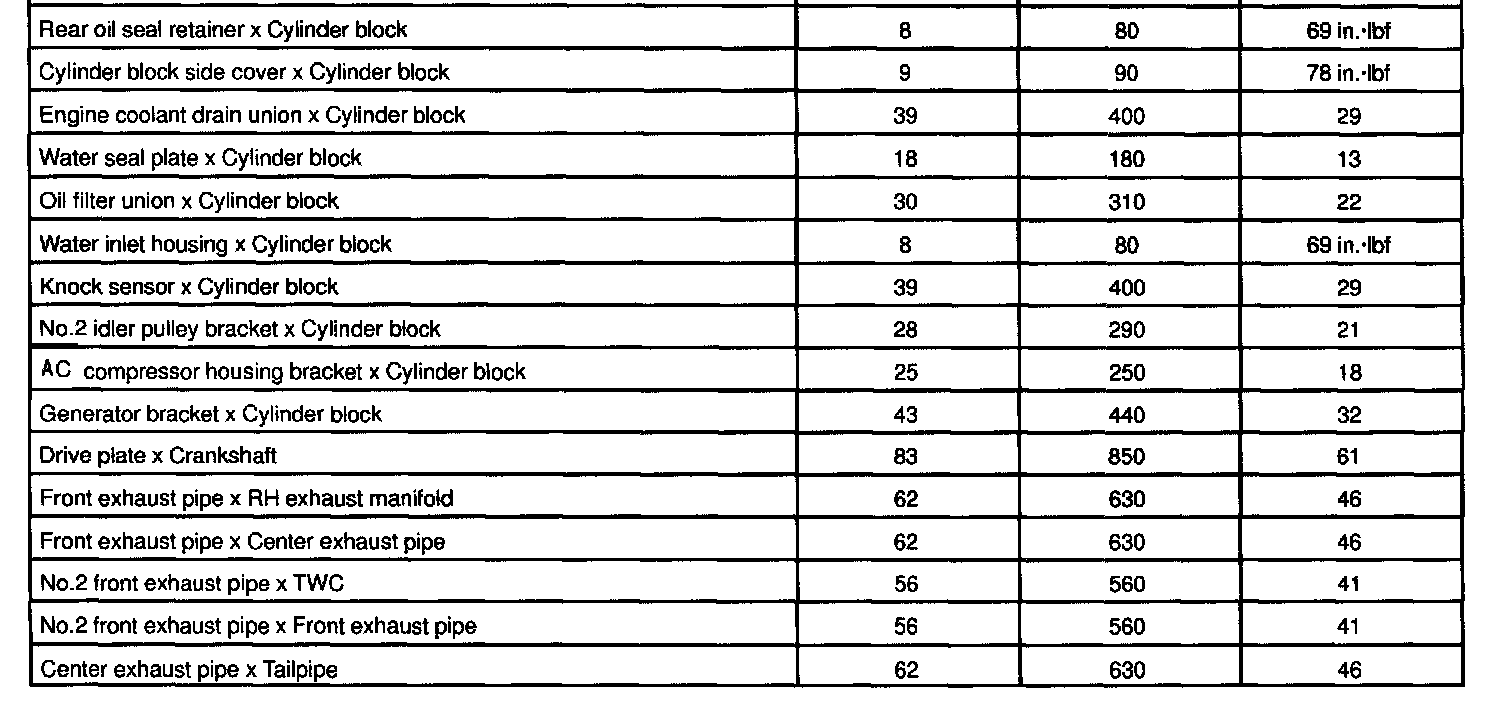

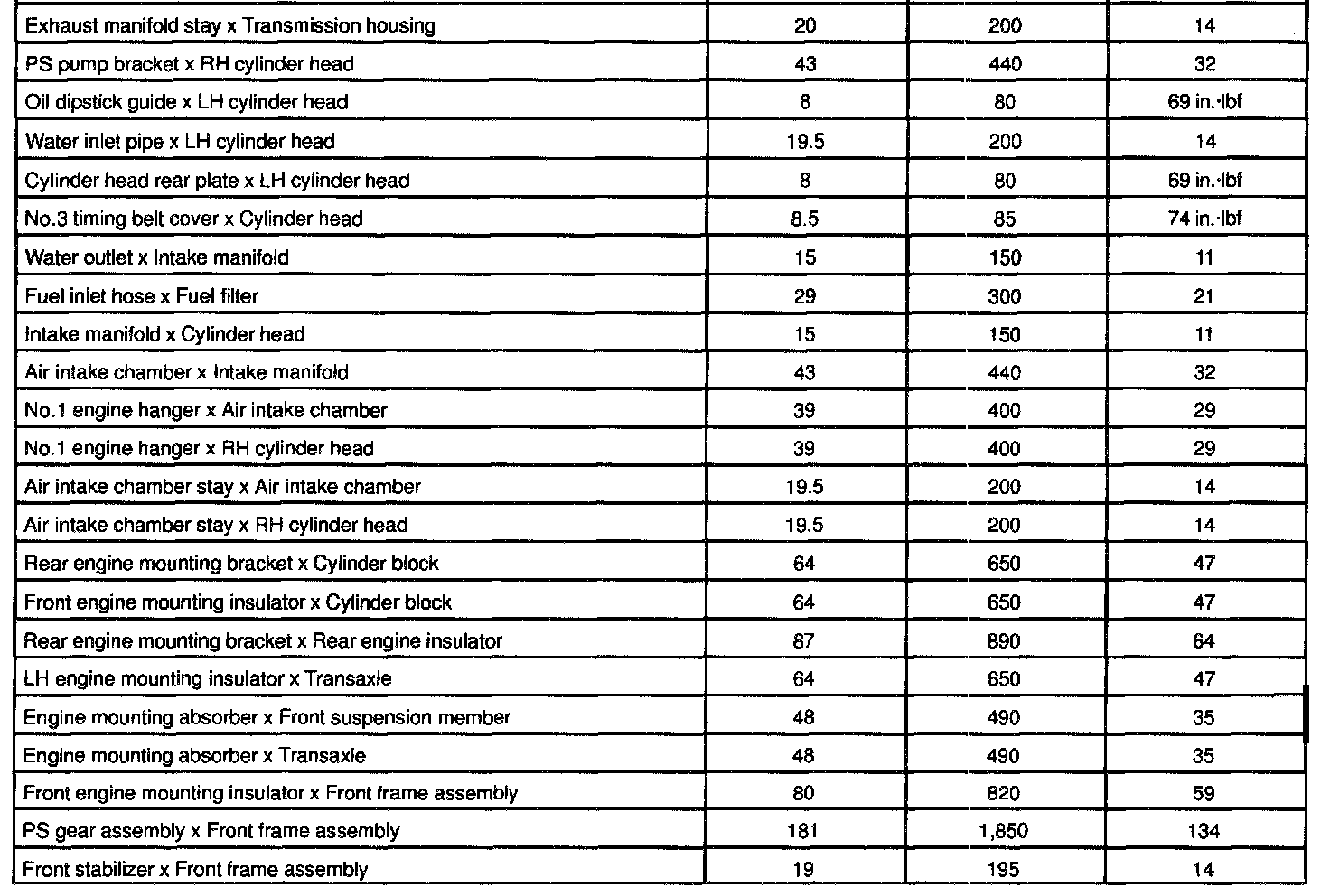

3.0L Engine Torque Cont.:

3.0L Engine Torque Cont.:

3.0L Engine Torque Cont.:

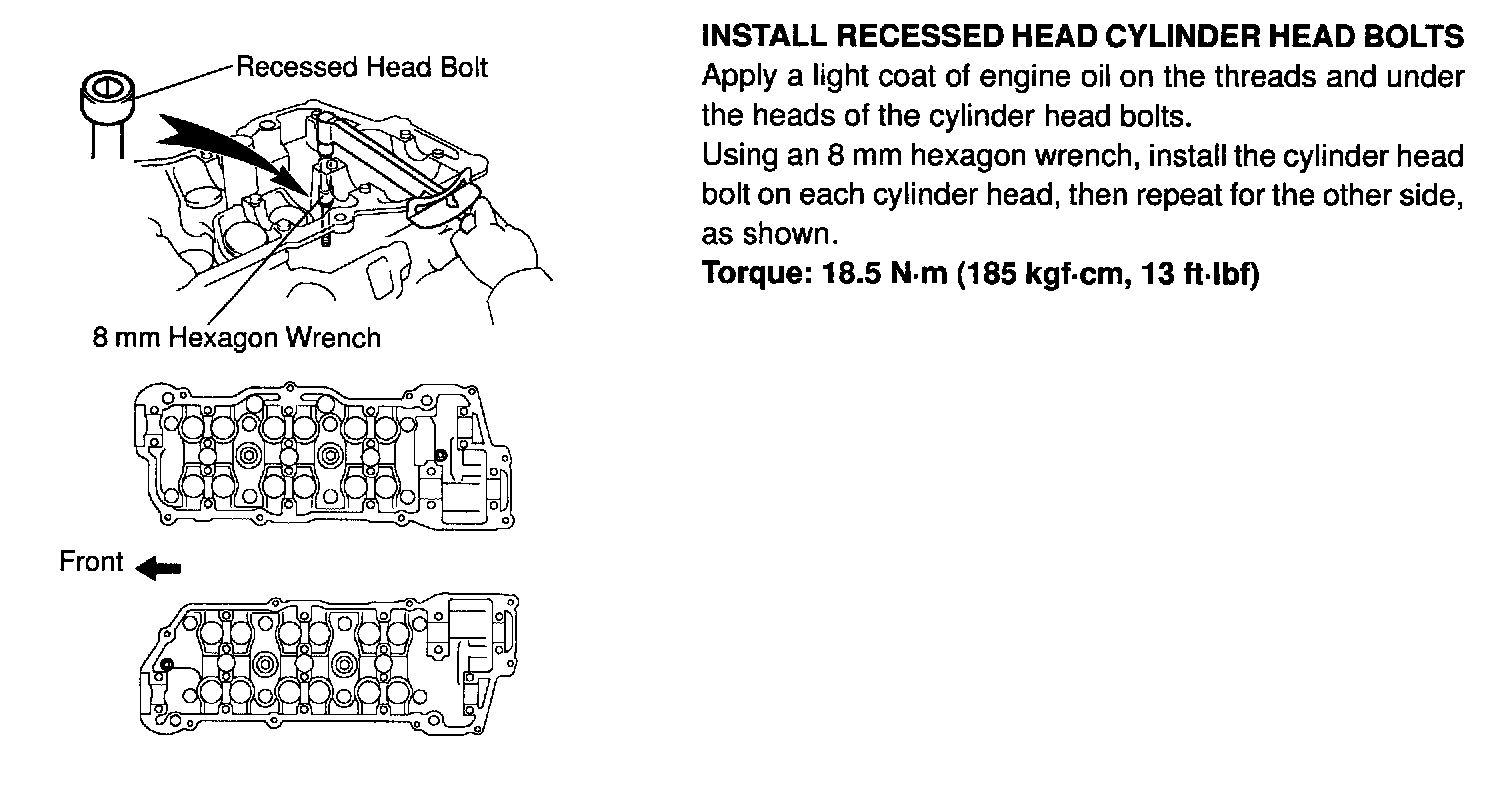

3.0L Cylinder Head Torque & Sequence:

3.0L Cylinder Head Torque & Sequence Cont.:
