Window Switch

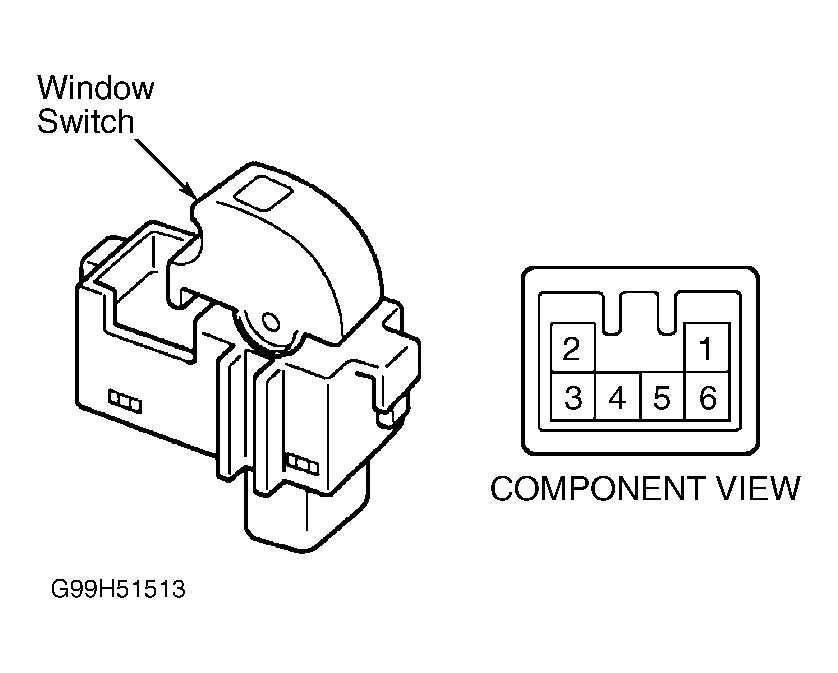

Remove window switch. Using DVOM, check for continuity between terminals of window switch. See Fig 1. Ensure continuity is as specified between appropriate terminals in indicated switch positions. See WINDOW SWITCH CONTINUITY SPECIFICATIONS table. If continuity is not as specified, replace window switch.
WINDOW SWITCH CONTINUITY SPECIFICATIONS
| Switch Position | Test Between Terminals No. | Continuity |
|---|---|---|
| UP (Auto) | 3 & 4; 3 & 6 | Yes |
| UP (Manual) | 3 & 6 | Yes |
| OFF (Neutral) | Any | No |
| DOWN (Manual) | 5 & 6 | Yes |
| DOWN (Auto) | 4 & 6; 5 & 6 | Yes |
