Illumination Circuit
CIRCUIT DESCRIPTIONReceiving the courtesy signal from either of the door ECU, the Body ECU will make the front interior light and ignition light, come on.

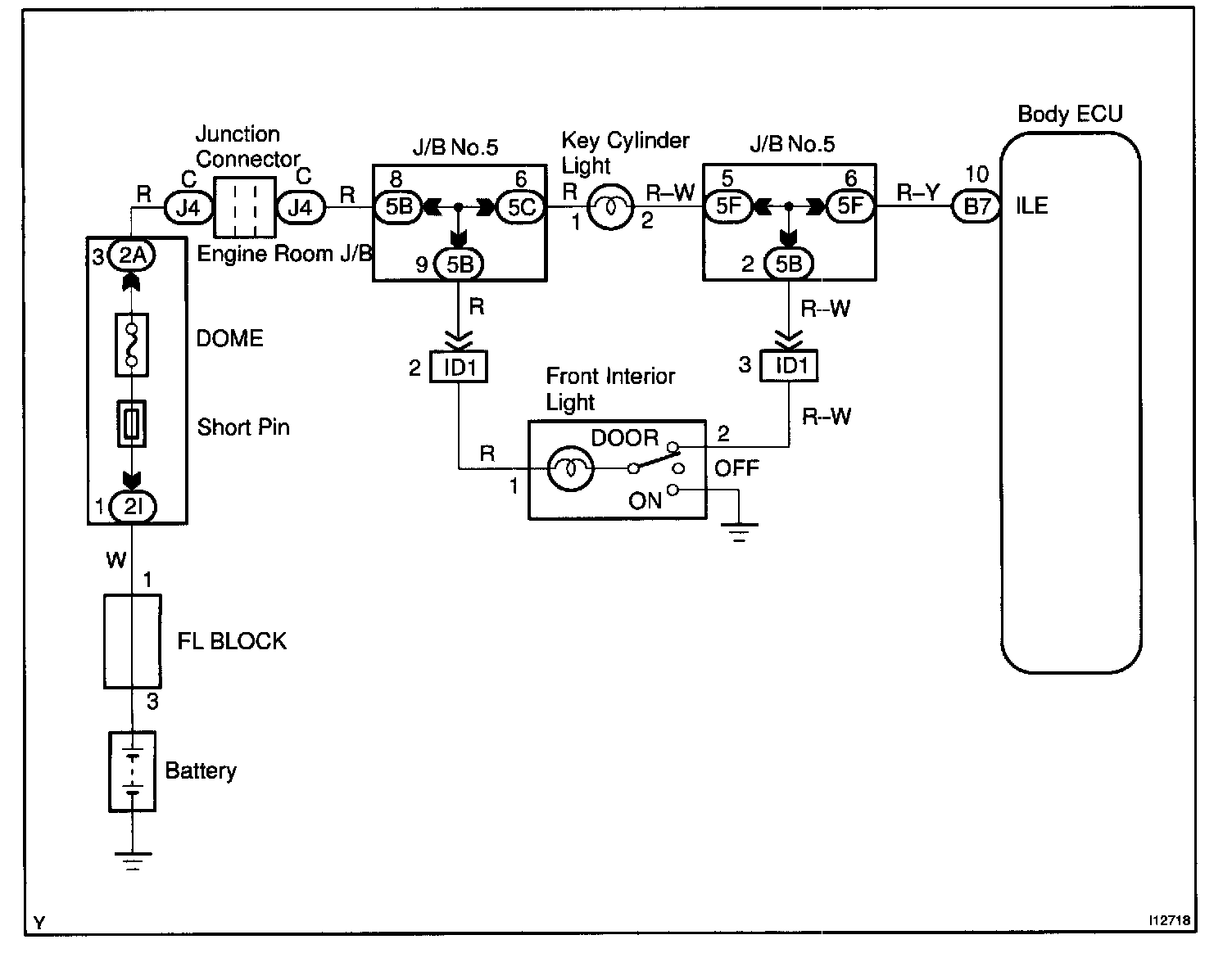

Wiring Diagram:

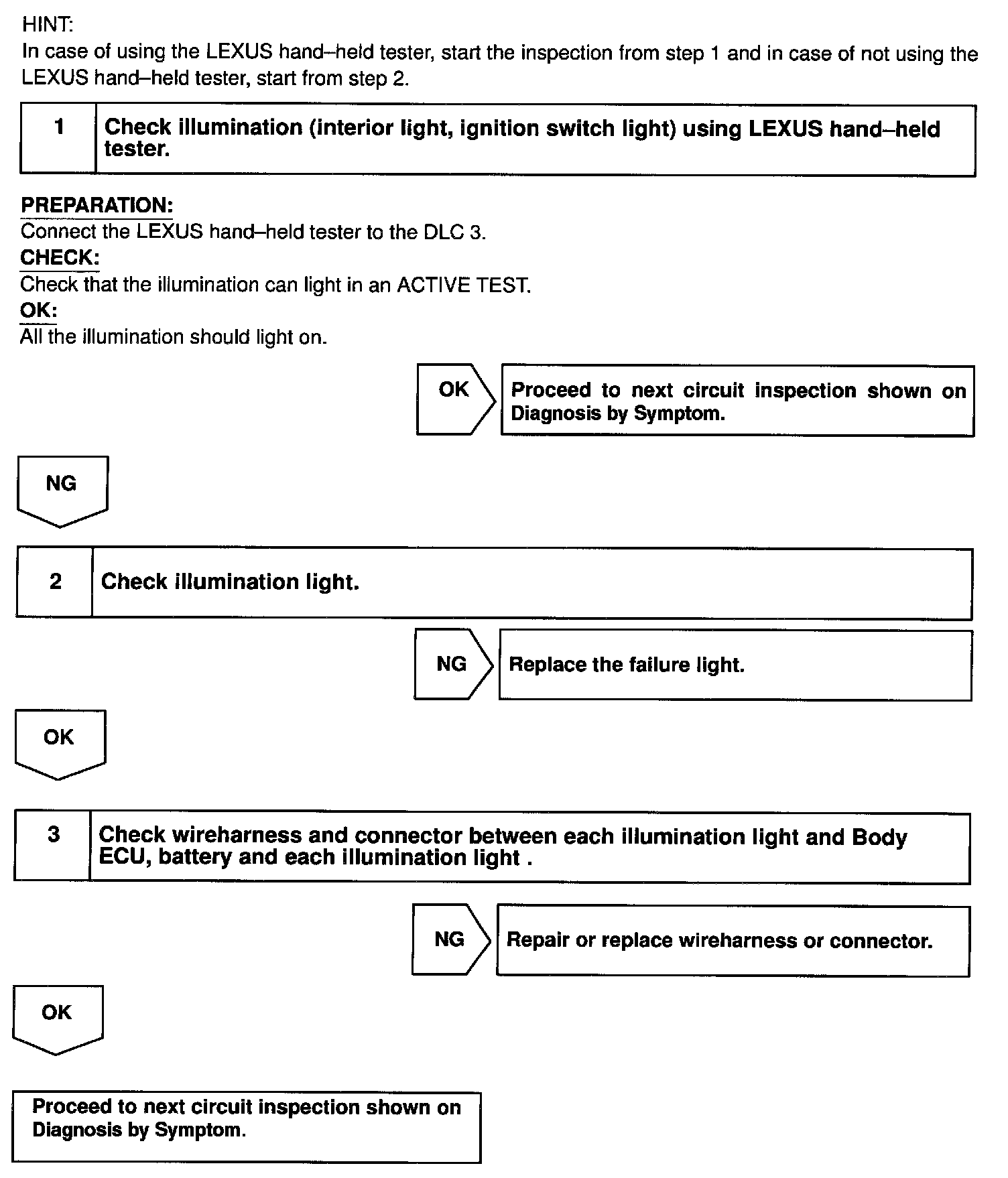

Steps 1 - 3:
INSPECTION PROCEDURE
Receiving the courtesy signal from either of the door ECU, the Body ECU will make the front interior light and ignition light, come on.
INSPECTION PROCEDURE
