Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C & Combination Meter ECU | Inside instrument cluster assembly. See Figure |

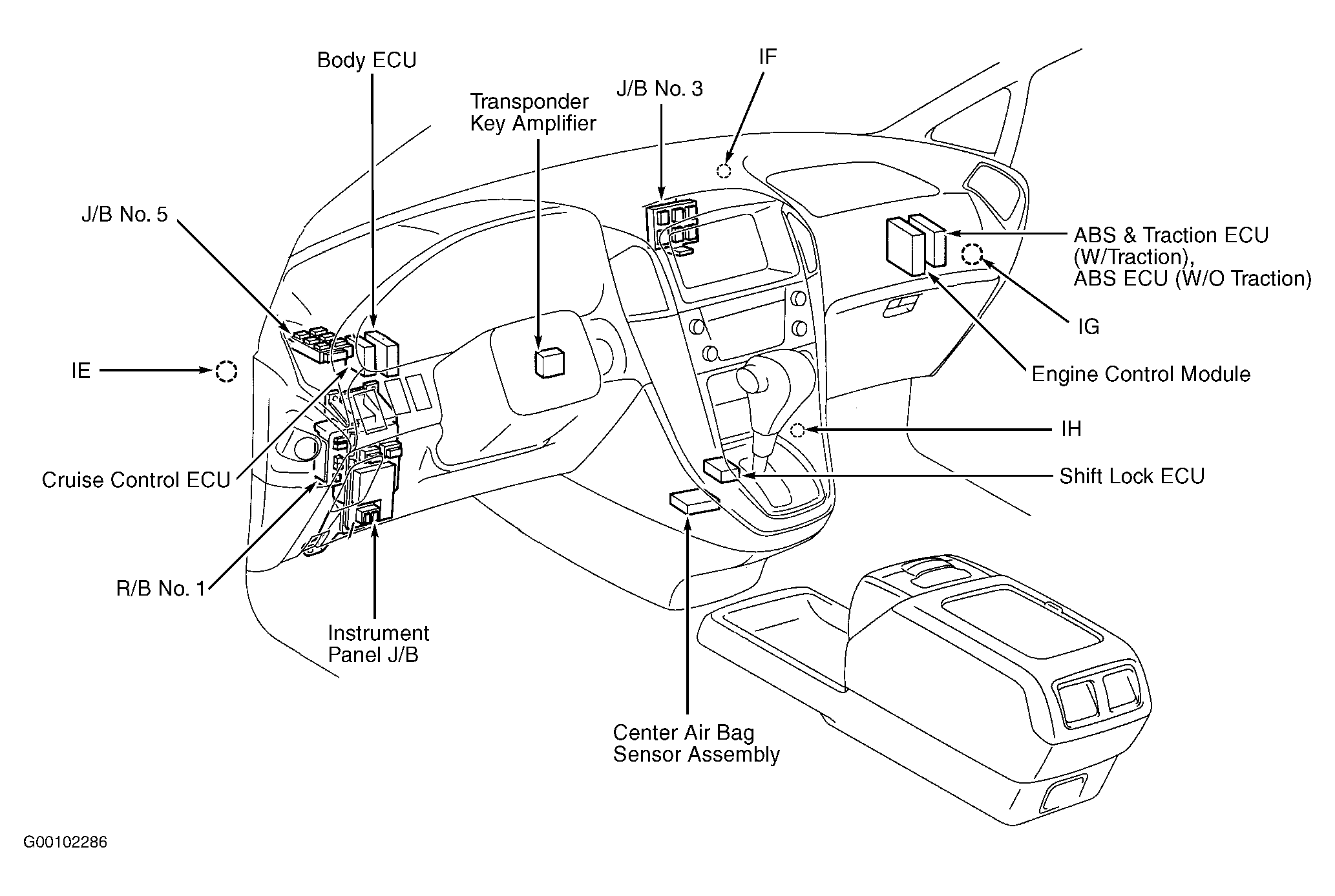

| ABS ECU (W/O Traction) | Behind right side of dash. See Figure. |
| ABS & Traction ECU (W/ Traction) | Behind right side of dash. See Figure. |
| Body ECU | Behind left side of dash. See Figure. |
| Center Air Bag Sensor Assembly | Under center of dash, forward of center console. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Driver Door ECU | In left front door. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Front Passenger Door ECU | In right front door. See Figure. |
| Moon Roof Control ECU | On front center of moon roof. See Figure. |
| Power Seat ECU | Under driver's seat. |
| Rear Door ECU (Left) | In left rear door. See Figure. |
| Rear Door ECU (Right) | In right rear door. See Figure. |
| Shift Lock ECU | Under center console, beside shift lever. See Figure. |
| Wireless Door Lock ECU | In center of vehicle. See Figure. |
