Data Link Connector: Locations

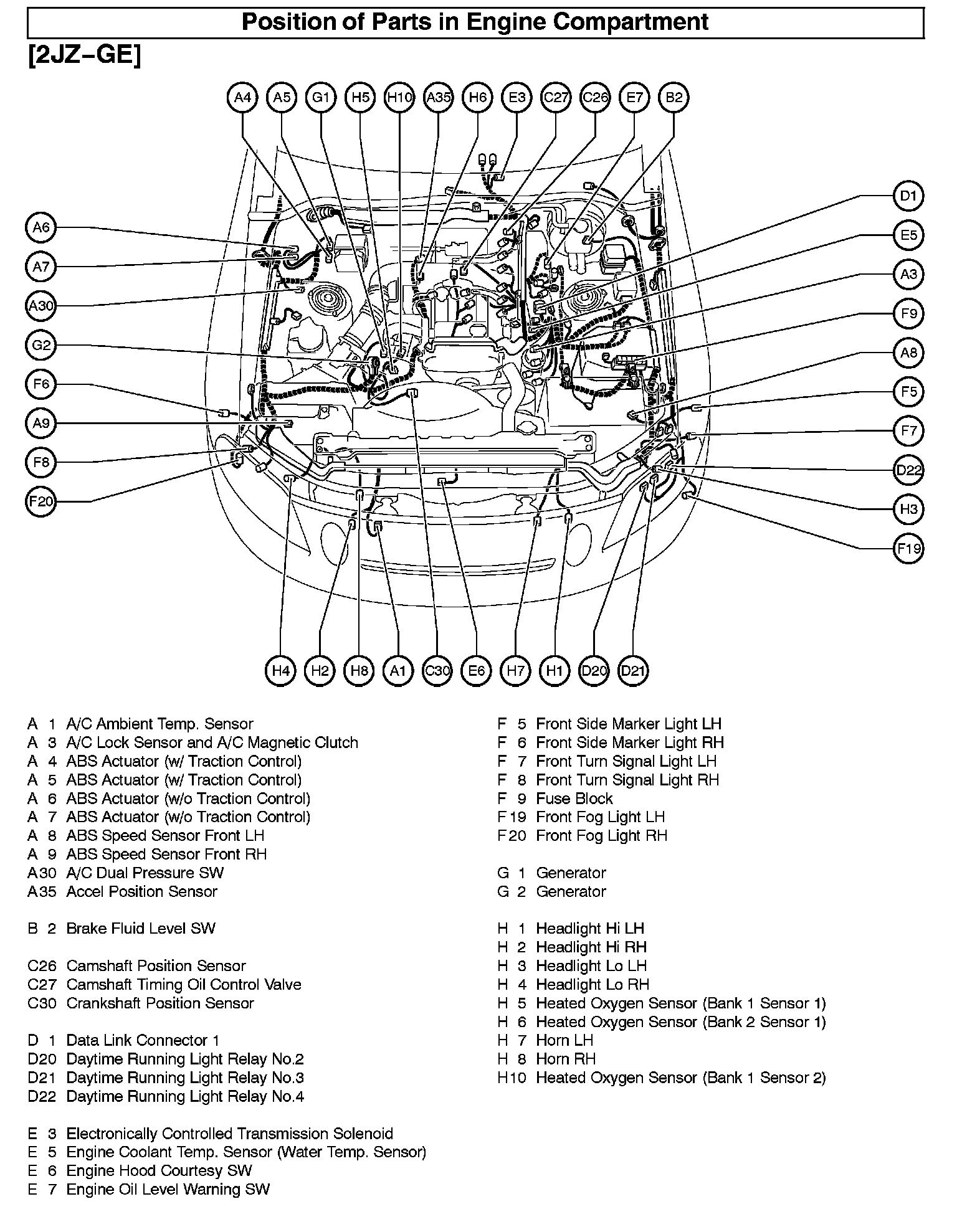

Position Of Parts In Engine Compartment (2JZ-GE):

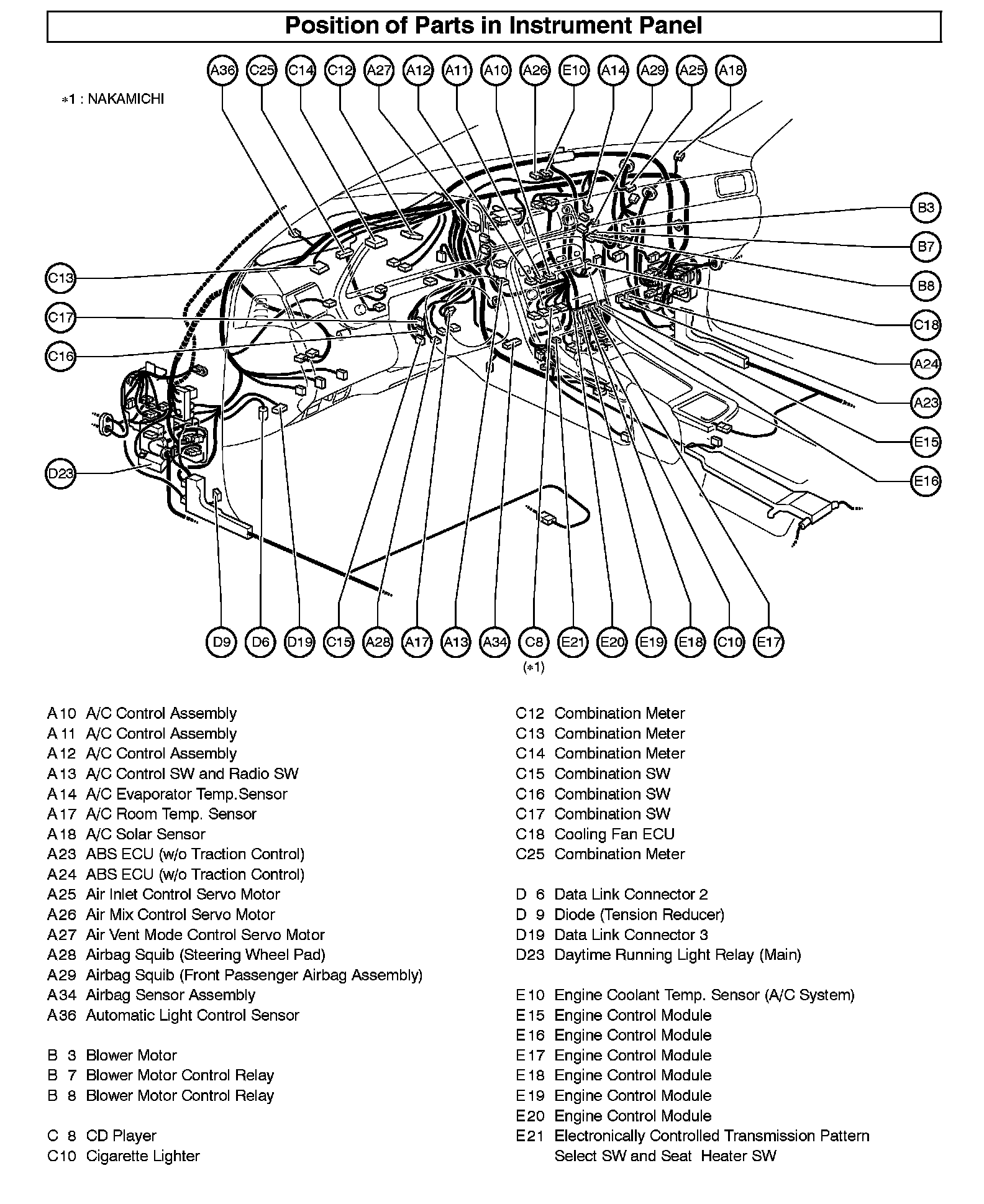

Position Of Parts In Instrument Panel:
