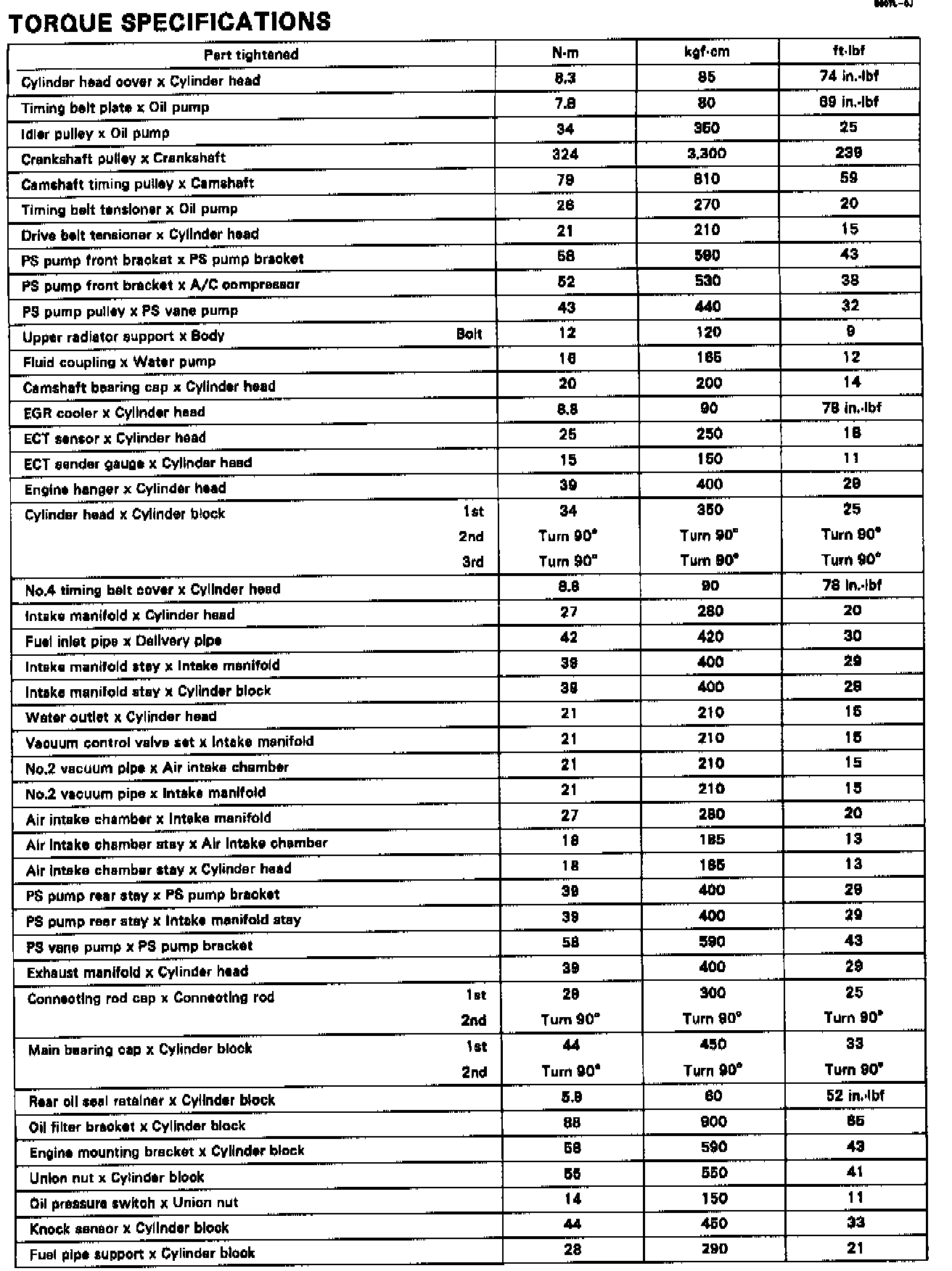

Torque Specification

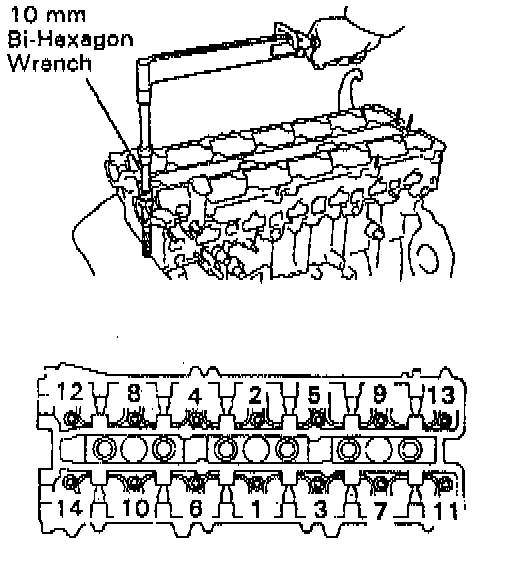

Cylinder Head Bolt Tightening Sequence
Torque:
1st Step 34 Nm (25 ft. lbs.)
2nd Step Turn the cylinder head bolts 90°
3rd Step Turn the cylinder head bolts an additional 90°
