| A/C Compressor Bolt/Nut |
38 (52) |
| Camshaft Bearing Cap Bolt |
15 (20) |
| Camshaft Sprocket Bolt |
60 (81) |
| Center Bearing Bolt |
| GS300 |
27 (37) |
| SC300 |
36 (49) |
| Connecting Rod Cap Bolt |
| Step 1 |
22 (30) |
| Step 2 |
Additional 90 Degrees |
| Crankshaft Pulley Bolt |
243 (330) |
| Crankshaft Set Bolt |
60 (81) |

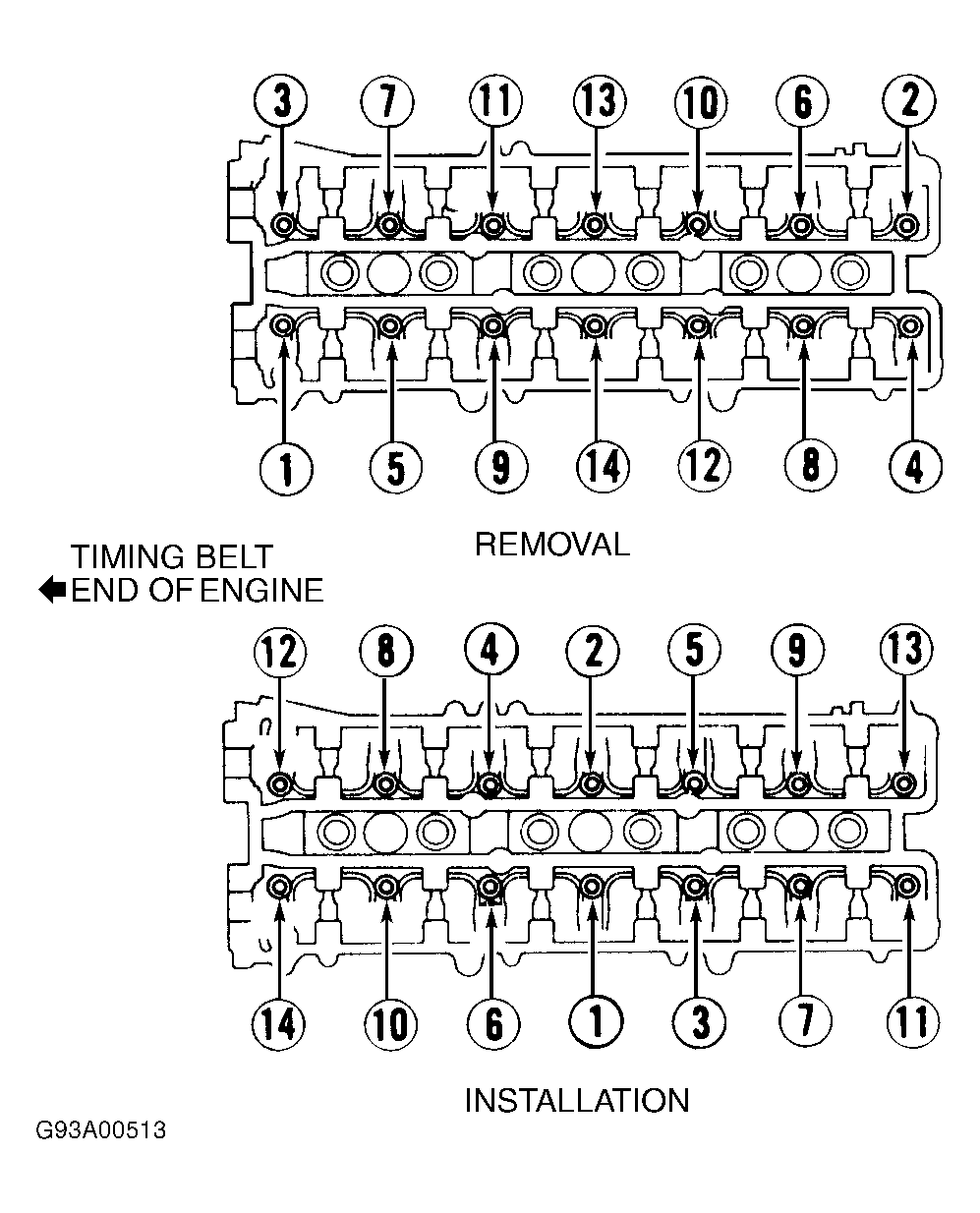

| Cylinder Head Bolt |
| Step 1 |
26 (35) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Additional 90 Degrees |
| Delivery Pipe Bolt |
15 (20) |
| Drive Belt Tensioner Bolt |
15 (20) |
| Drive Plate Mounting Bolt |
61 (83) |
| Engine Mount-To-Crossmember Nut |
| GS300 |
54 (73) |
| SC300 |
43 (58) |
| ECT Sensor |
14 (19) |
| Exhaust Manifold Nut |
30 (41) |
| Fan Clutch-To-Water Pump Nut |
12 (16) |
| Fuel Hose Inlet Union Bolt |
22 (30) |
| Fuel Inlet Pipe Bolt |
21 (28) |
| Generator Mount Bolt |
29 (39) |
| Idler Pulley Bolt |
26 (35) |
| Intake Manifold Bolt/Nut |
21 (28) |
| Intake Manifold Brace Bolt/Nut |
30 (41) |
| Intermediate Drive Shaft Companion Flange-To-Rear Drive Shaft Companion Flange Bolt (SC300 Only) |
54 (73) |
| Knock Sensor |
33 (45) |

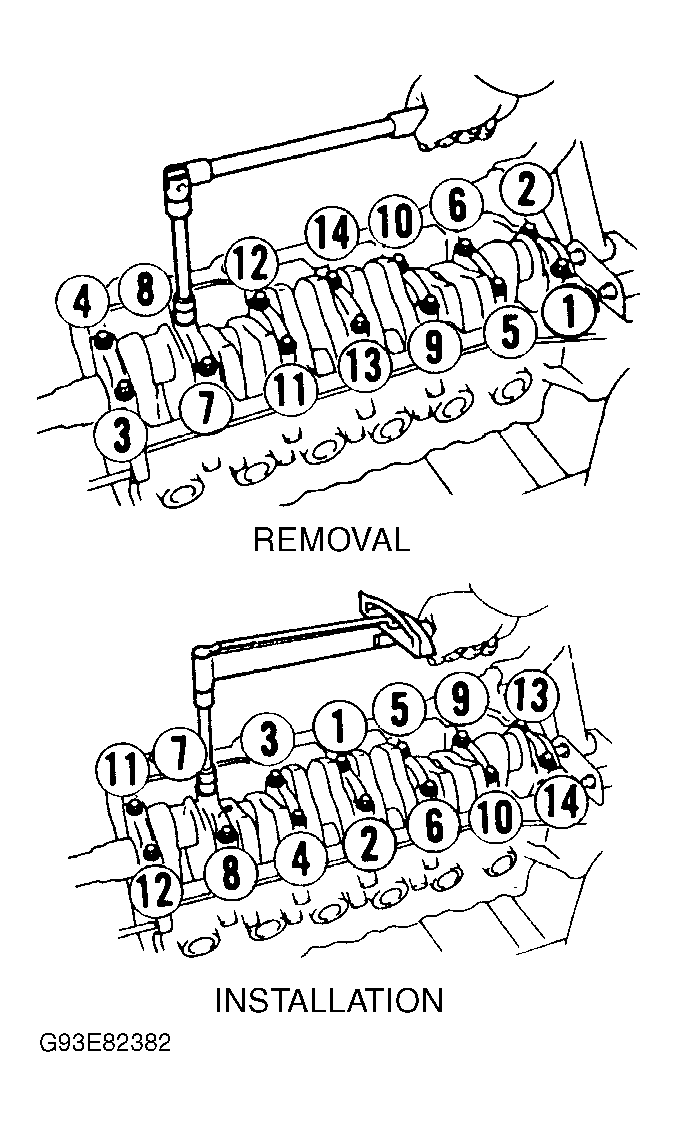

| Main Bearing Cap Bolt |
| Step 1 |
33 (45) |
| Step 2 |
Additional 90 Degrees |
| No. 1 Oil Pan Bolt |
| 12-mm Bolt |
15 (20) |
| 14-mm Bolt |
30 (41) |
| No. 2 Idler Pulley Bolt |
25 (34.5) |
| No. 2 Oil Pan Nut |
21 (28) |
| No. 2 Timing Belt Cover |
12 (16) |
| Oil Filter Bracket-To-Cylinder Block Bolt |
13 (18) |
| Oil Pump Bolt |
15 (21) |
| Power Steering Pump/Front Bracket |
| Bolt "A" |
43 (58) |
| Bolt "B" |
38 (52) |
| Power Steering Pump Rear Stay |
29 (39) |
| Spark Plug |
13 (18) |
| Straight Screw Plug |
11 (15) |
| Throttle Body Bolt |
13 (18) |
| Throttle Body Support Brace Nut |
15 (20) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Transmission Crossmember-To-Body Bolt |
33 (45) |
| Vane Pump Bolts |
43 (58) |
| Water Inlet Bolt |
13 (18) |
| Water Outlet Bolt/Nuts |
21 (28) |
| Water Pump Bolt |
13 (18) |
| INCH Lbs. (N.m) |
| Baffle Plate Bolt/Nut |
80 (9.0) |
| Control Rod Bolt |
108 (12) |
| Coolant By-Pass Outlet Bolt |
78 (8.8) |
| Crankshaft Rear Oil Seal Housing-To-Cylinder Block Bolt |
52 (5.9) |
| Fluid Coupling Nuts |
65 (7.3) |
| No. 1 & 2 Fuel Pipe Union Bolt |
78 (8.8) |
| No. 1 Oil Pan Bolt |
| 10-mm Bolt |
66 (7.5) |
| 12-mm Bolt |
248 (28) |
| No. 2 Oil Pan Bolts/Nuts |
80 (9.0) |
| No. 2 Timing Belt Cover Bolt |
71 (8.0) |
| No. 3. Timing Belt Cover Bolt |
66 (7.5) |
| No. 4 Timing Belt Cover Bolt |
71 (8.0) |
| Oil Level Sensor Bolts |
48 (5.4) |
| Oil Pump Cover Screws |
97 (11) |
| Spark Plug Wire/Clamp Bolts |
71 (8.0) |
| Transmission Mount-To-Transmission Crossmember Nut |
115 (13) |
| Valve Cover Bolt/Nut |
73 (8.2) |
