Torque Specifications
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2000 Lexus SC 400, 2000 Lexus LS 400, 2000 Lexus GS 400, 1999 Lexus SC 400, and 1999 Lexus LS 400. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor-To-Block |
36 (49) |
| A/C Compressor-To-Oil Filter Bracket |
22 (30) |
| Accelerator Cable Bracket Bolt/Nut |
13 (18) |

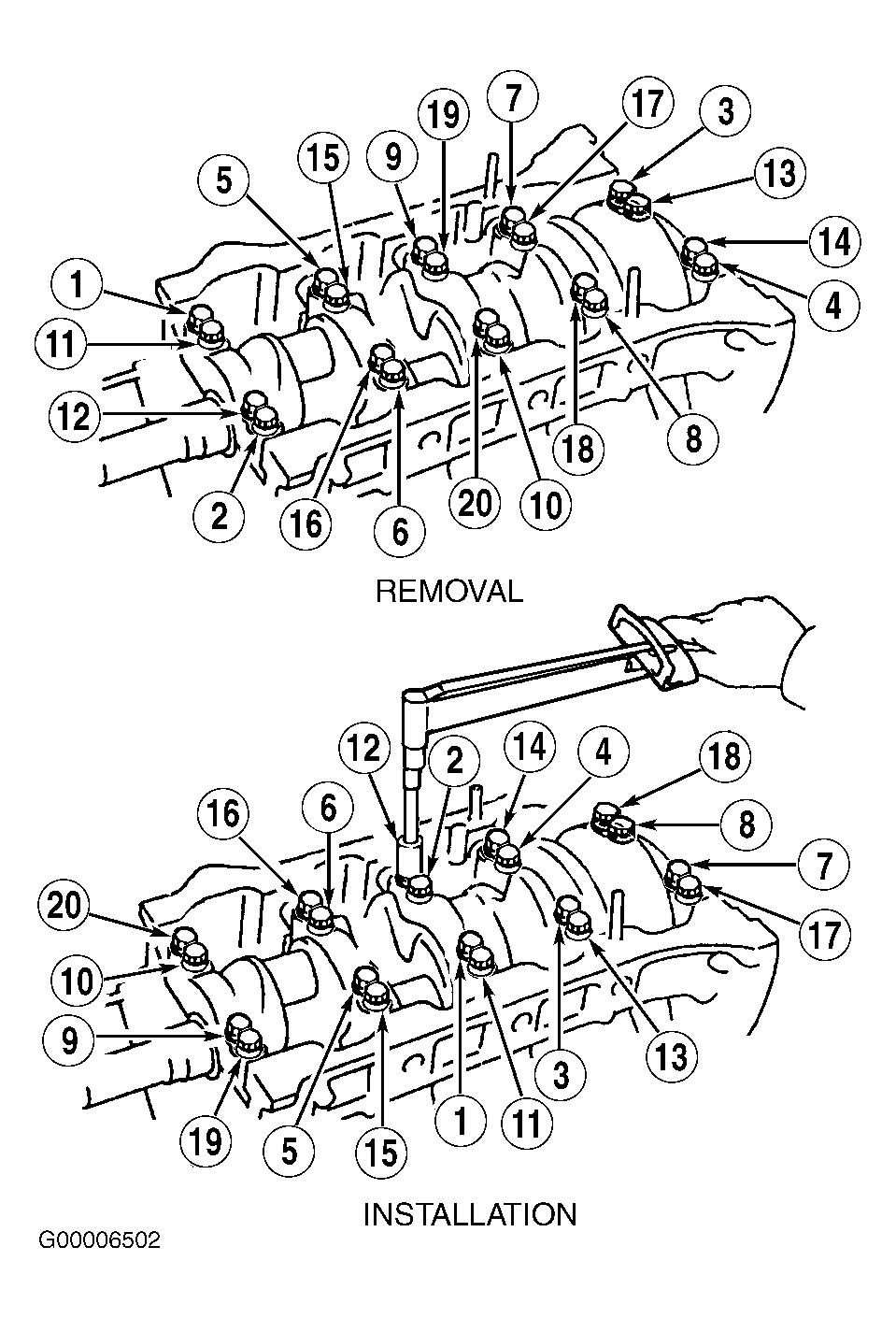

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Timing Tube |
58 (79) |
| Catalytic Converter-To-Exhaust Manifold Nut |
46 (62) |
| Catalytic Converter-To-Exhaust Pipe Bolt |
32 (43) |
| Center Exhaust Pipe Nut/Bolt |
14 (19) |
| Connecting Rod Cap Bolt |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Crankshaft Pulley Bolt |
181 (245) |

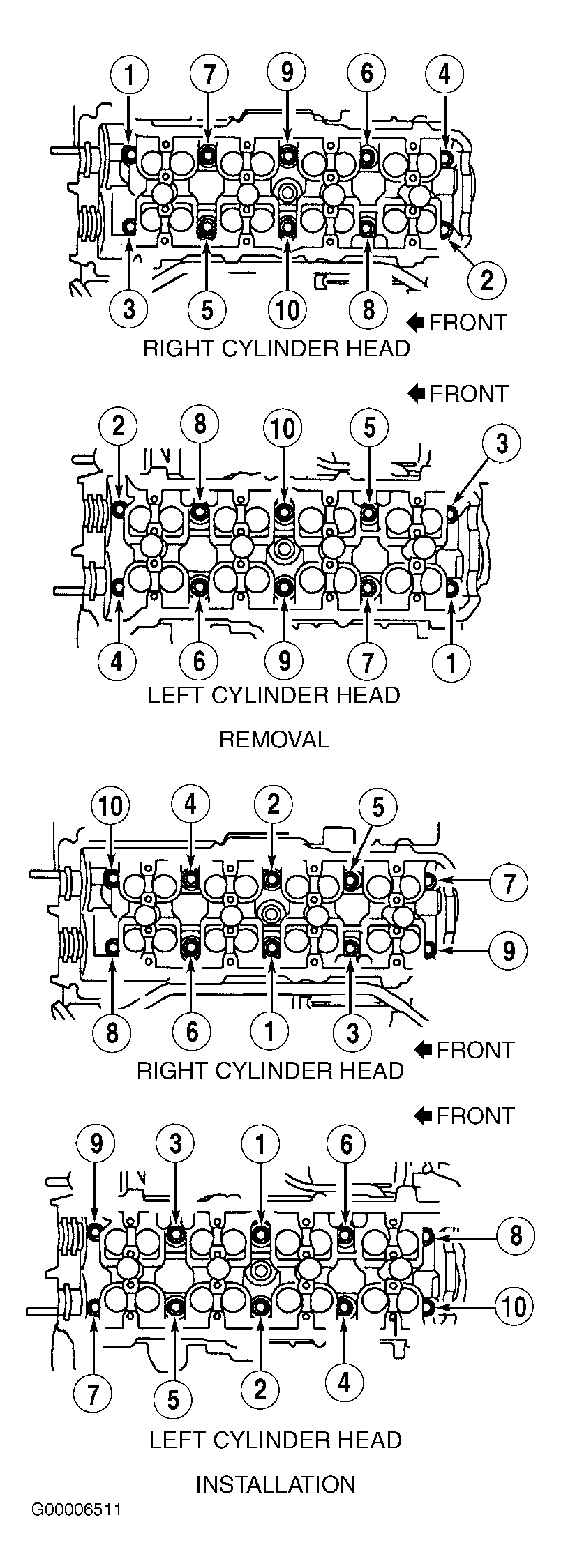

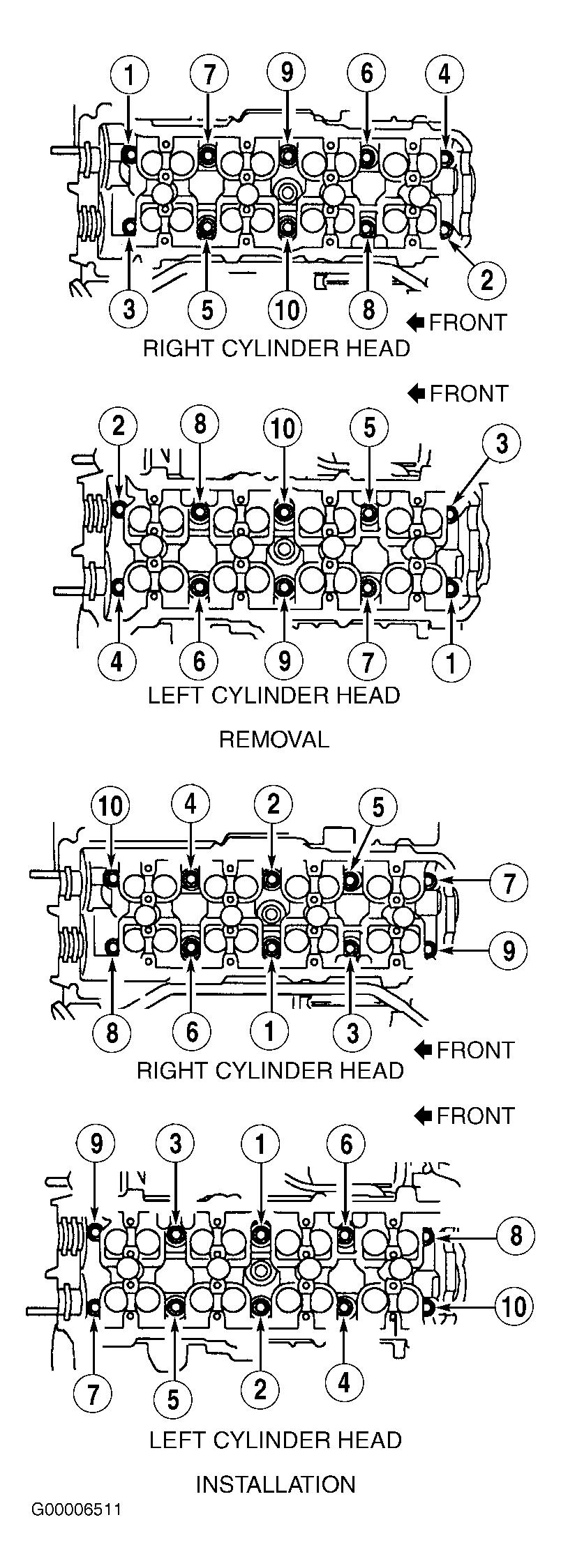

| Cylinder Head Bolt |
| Step 1 |
29 (39) |
| Step 2 |
Additional 90 Degrees |
| Delivery Pipe Nut |
13 (18) |
| Drive Belt Idler Pulley Bolt |
27 (37) |
| Drive Belt Tensioner Bolt/Nut |
12 (16) |
| Drive Plate-To-Crankshaft Bolt |
72 (98) |
| Drive Shaft Center Bearing Bolt |
| GS400 & LS400 |
27 (37) |
| SC400 |
36 (49) |
| Drive Shaft Flange Bolt |
| GS400 & LS400 |
53 (72) |
| SC400 |
58 (79) |
| Engine Coolant Drain Union Plug |
36 (49) |
| Engine Hanger Bolt |
27 (37) |
| Engine Mount-To-Cylinder Block |
27 (37) |
| Exhaust Manifold Nut |
32 (43) |
| Fan Bracket Bolt/Nut (LS400 Only) |
| 12-mm Head |
12 (16) |
| 14-mm Head |
24 (33) |
| Fluid Coupling Assembly Nut (LS400) |
16 (22) |
| Front Exhaust Pipe Support Bracket |
32 (43) |
| Front & Rear Water Water By-Pass Joint Nut/Bolt |
13 (18) |
| Front Suspension Crossmember |
43 (58) |
| Fuel Hose |
22 (30) |
| Generator Bolt/Nut |
29 (39) |
| Heated Oxygen Sensor Bolt/Nut |
33 (45) |
| Hydraulic Pump Bolt/Nut (SC400) |
| 12-mm Head |
12 (16) |
| All Others |
22 (30) |
| Intake Manifold Bolt/Nut |
13 (18) |
| Knock Sensor Bolt/Nut |
33 (45) |
| Main Bearing Cap |
| Step 1 |
20 (27) |
| Step 2 |
Additional 90 Degrees |
| Main Bearing Side Bolts |
36 (49) |
| No. 1 & 2 Idler Pulley Bolt |
25 (34) |
| No. 2 Timing Belt Cover Bolt |
12 (16) |
| Oil Filter Bracket Bolt/Nut |
13 (18) |

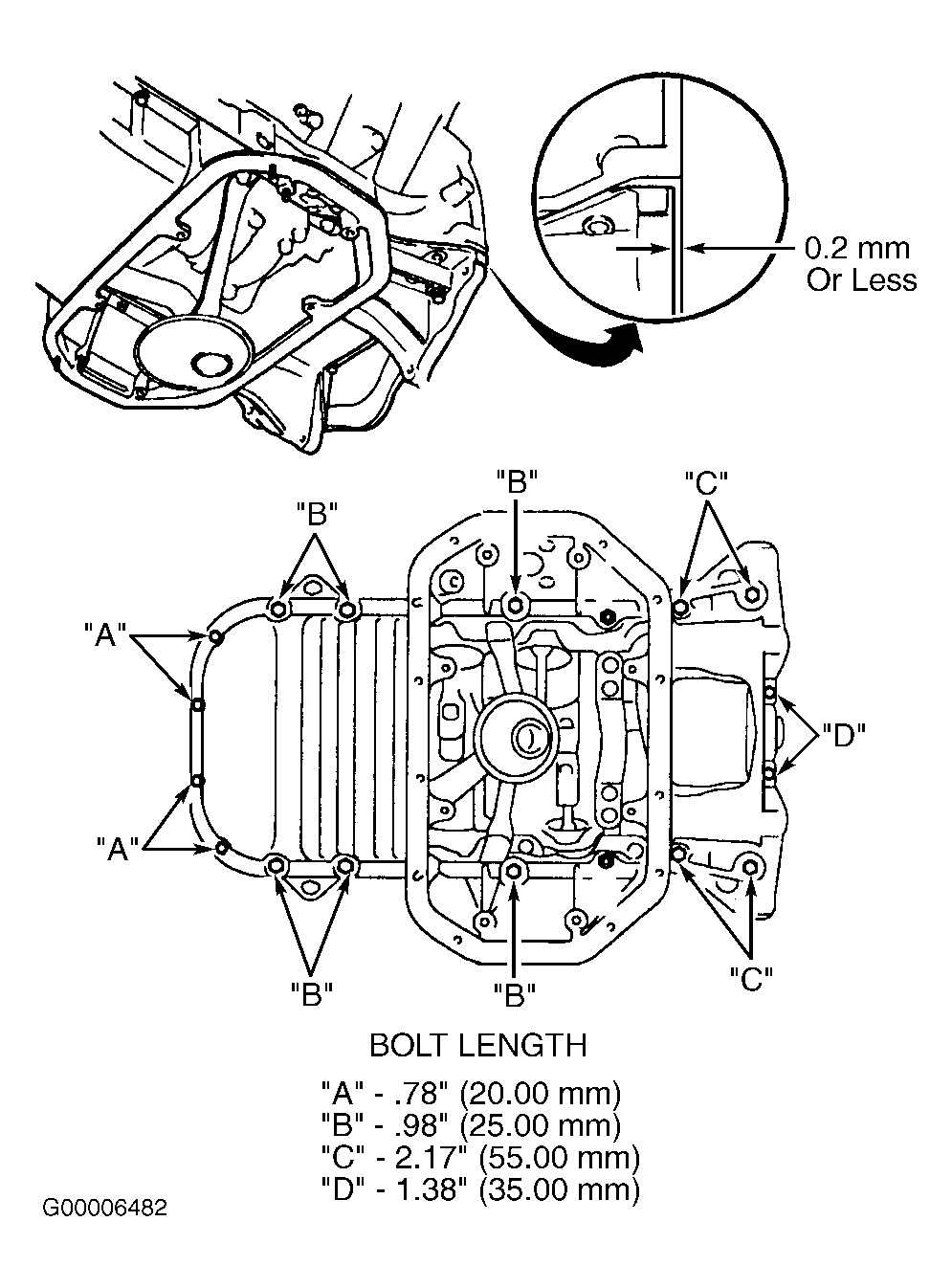

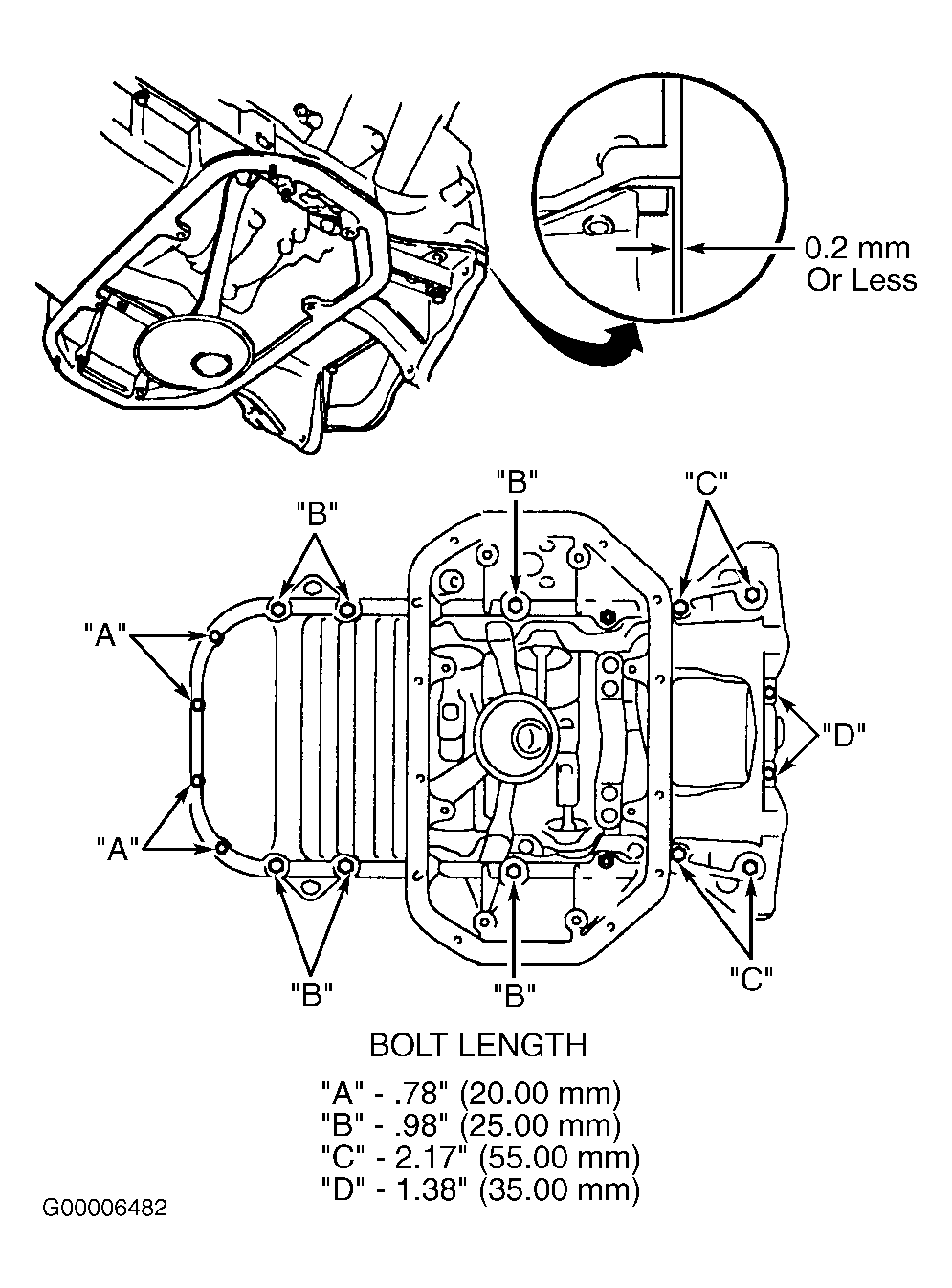

| Oil Pan |
| No. 1 Oil Pan Bolt/Nut |
| GS400 & LS400 |
| 10-mm Head |
|
| 12-mm Head |
21 (28) |
| SC400 |
| 12-mm Head |
11 (15) |
| 14-mm Head |
22 (30) |
| Oil Pump-To-Cylinder Block Bolt |
| 12-mm Head |
11 (15) |
| 14-mm Head |
22 (30) |
| Power Steering Pump |
| Bolt |
29 (39) |
| Nut |
32 (43) |
| Rear Engine Mounting Member-to-Body |
10 (14) |
| Spark Plug |
13 (18) |
| Straight Screw Plug |
11 (15) |
| Throttle Body Bolt/Nut |
13 (18) |
| Timing Belt Tensioner Bolt |
19 (26) |
| Torque Converter-To-Drive Plate Bolt |
30 (41) |
| Transmission Oil Cooler Pipe (For Union Nut) |
25 (34) |
| VSV For EVAP Bolt/Nut |
13 (18) |
| Water By-Pass Pipe Bolt |
13 (18) |
| Water Pump Bolt/Nut |
13 (18) |
| Water Seal Plate Bolt |
10 (14) |
| INCH Lbs. (N.m) |
| Baffle Plate Bolt/Nut |
66 (7) |
| Camshaft Drive Gear Bolt/Nut |
66 (7) |
| Camshaft Sprocket Bolt |
7.5 (.8) |
| Center Floor Crossmember Brace Bolt/Nut |
115 (13) |
| Crankshaft Position Sensor Bolt |
66 (7) |
| Cylinder Head Cover Bolt |
53 (6) |
| No. 3 Timing Belt Cover Bolt |
66 (7) |
| Oil Level Sensor Bolt |
48 (5) |
| Rear Oil Seal Retainer Bolt |
71 (8) |
| Timing Belt Rear Plate Bolt |
66 (7) |
| V-Bank Cover Bracket Bolt |
66 (7) |
