EVAP System Operation Information (EG002-01)

Publication date: 2001-04-27
Reference number: EG002-01

EVAP SYSTEM OPERATION INFORMATION

EVAP SYSTEM OPERATION INFORMATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): EG002-01, Date of Issue: April 27, 2001

LEXUS:	1996-2001 All Models
GROUP:	Engine
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

EVAP System Operation Information

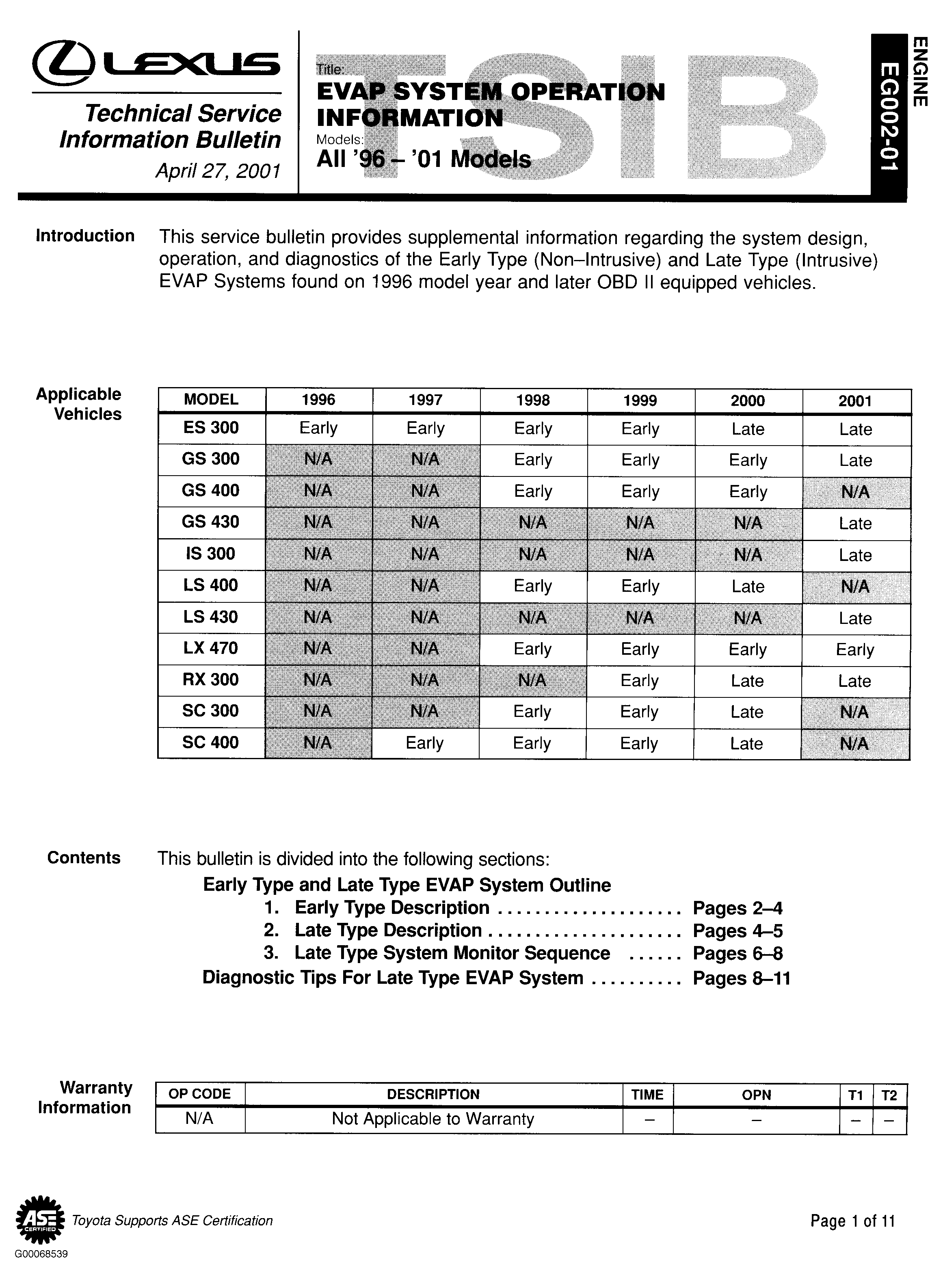

Fig 1: Page 1

G00068539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

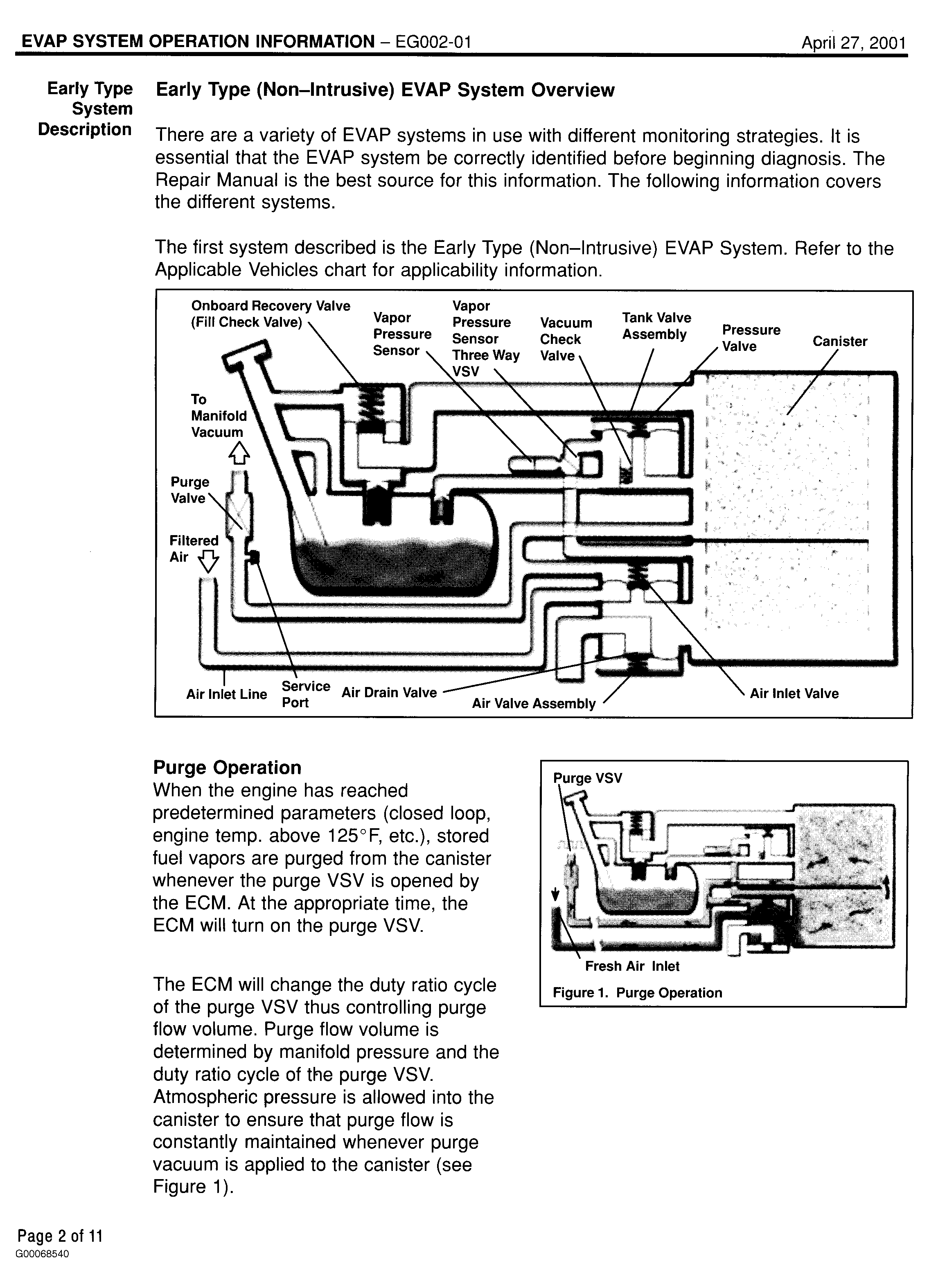

Fig 2: Page 2

G00068540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

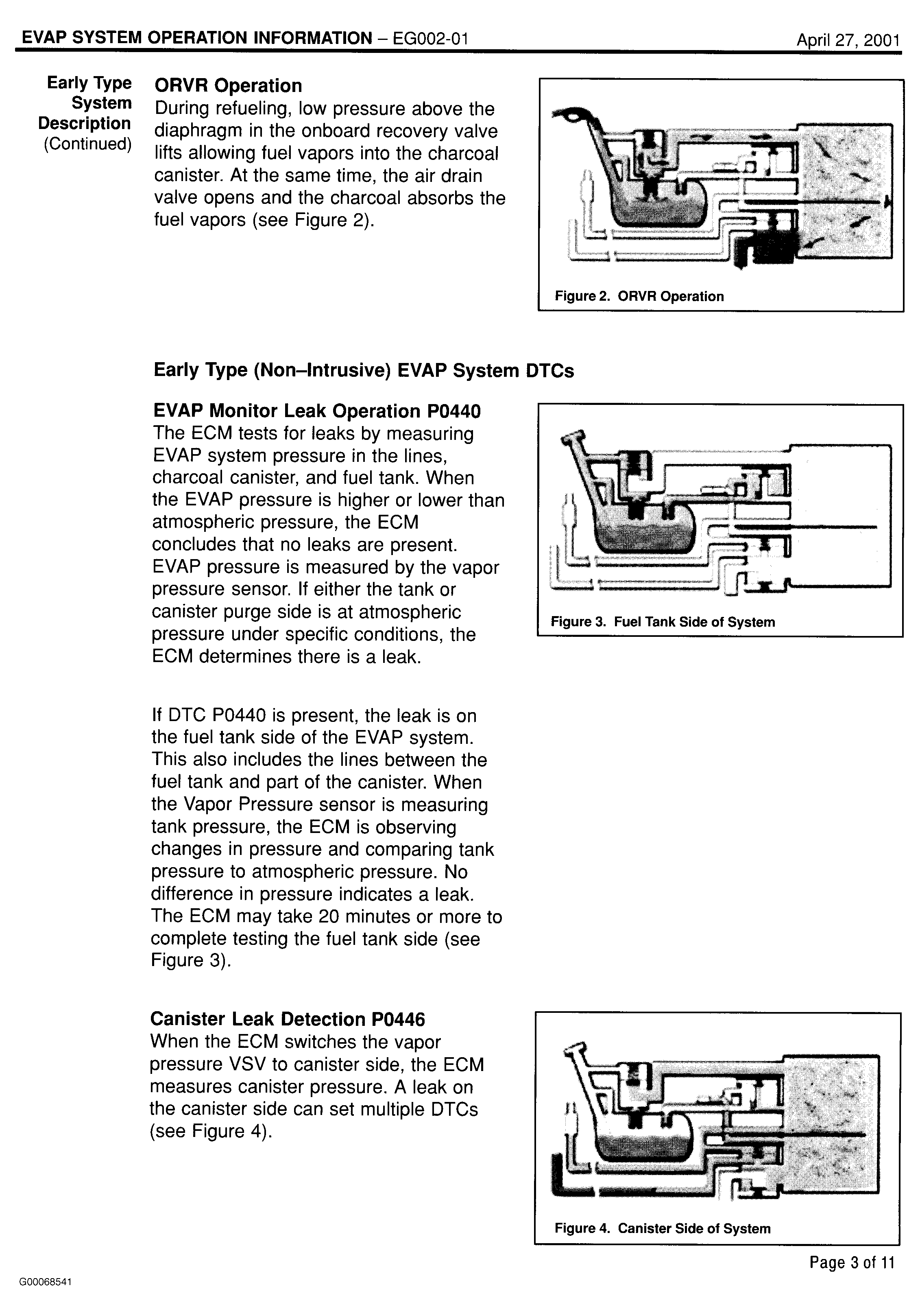

Fig 3: Page 3

G00068541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

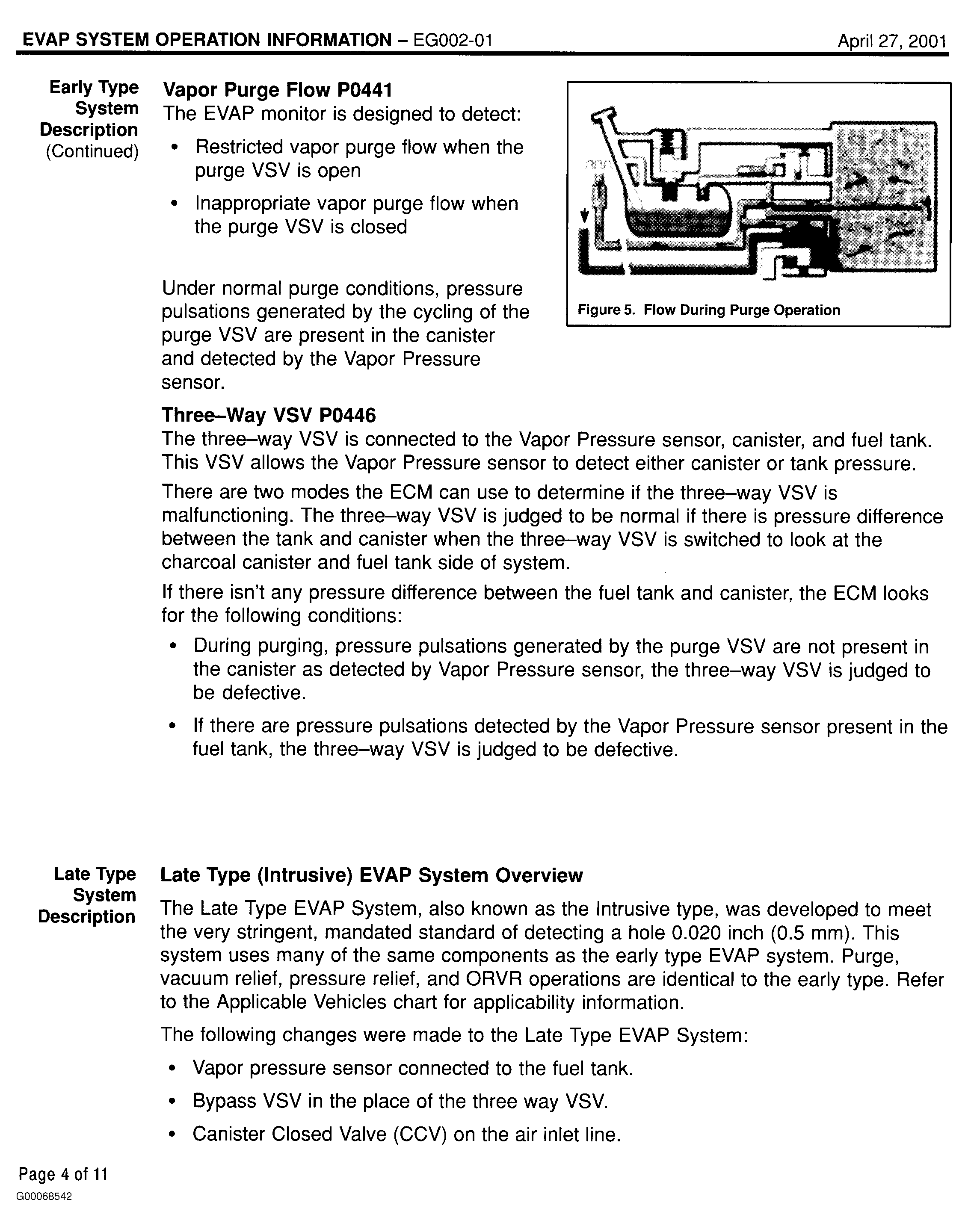

Fig 4: Page 4

G00068542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

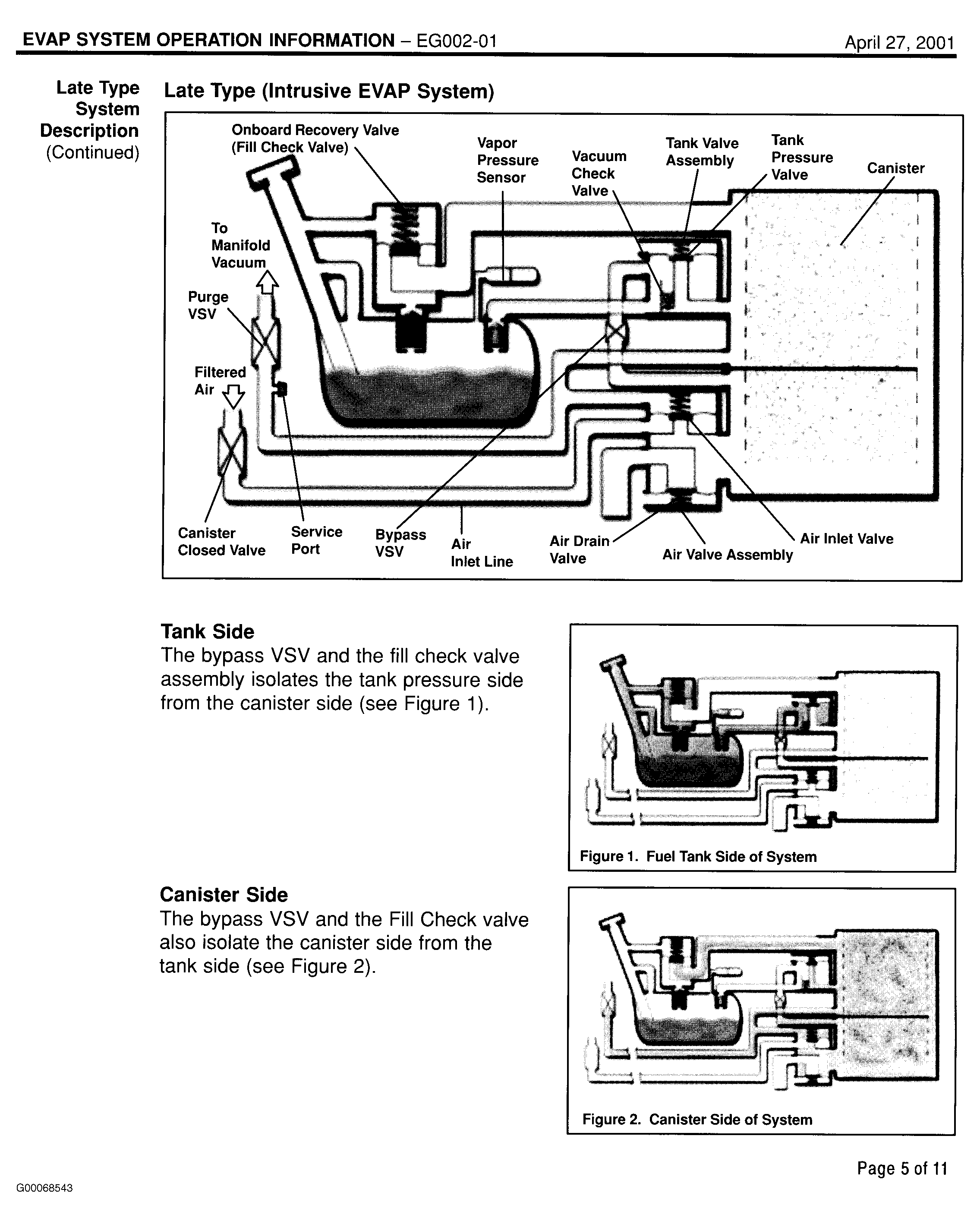

Fig 5: Page 5

G00068543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

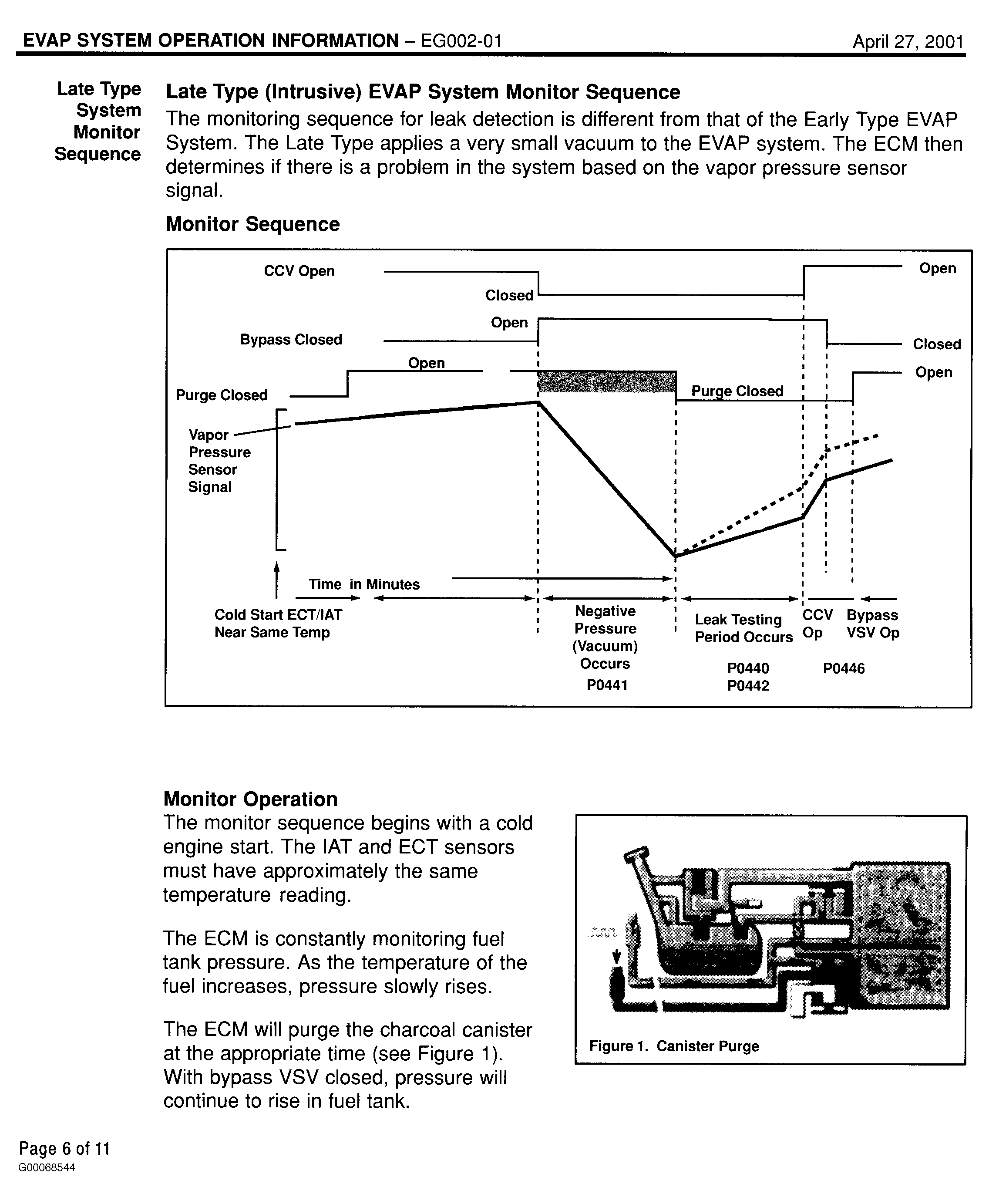

Fig 6: Page 6

G00068544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

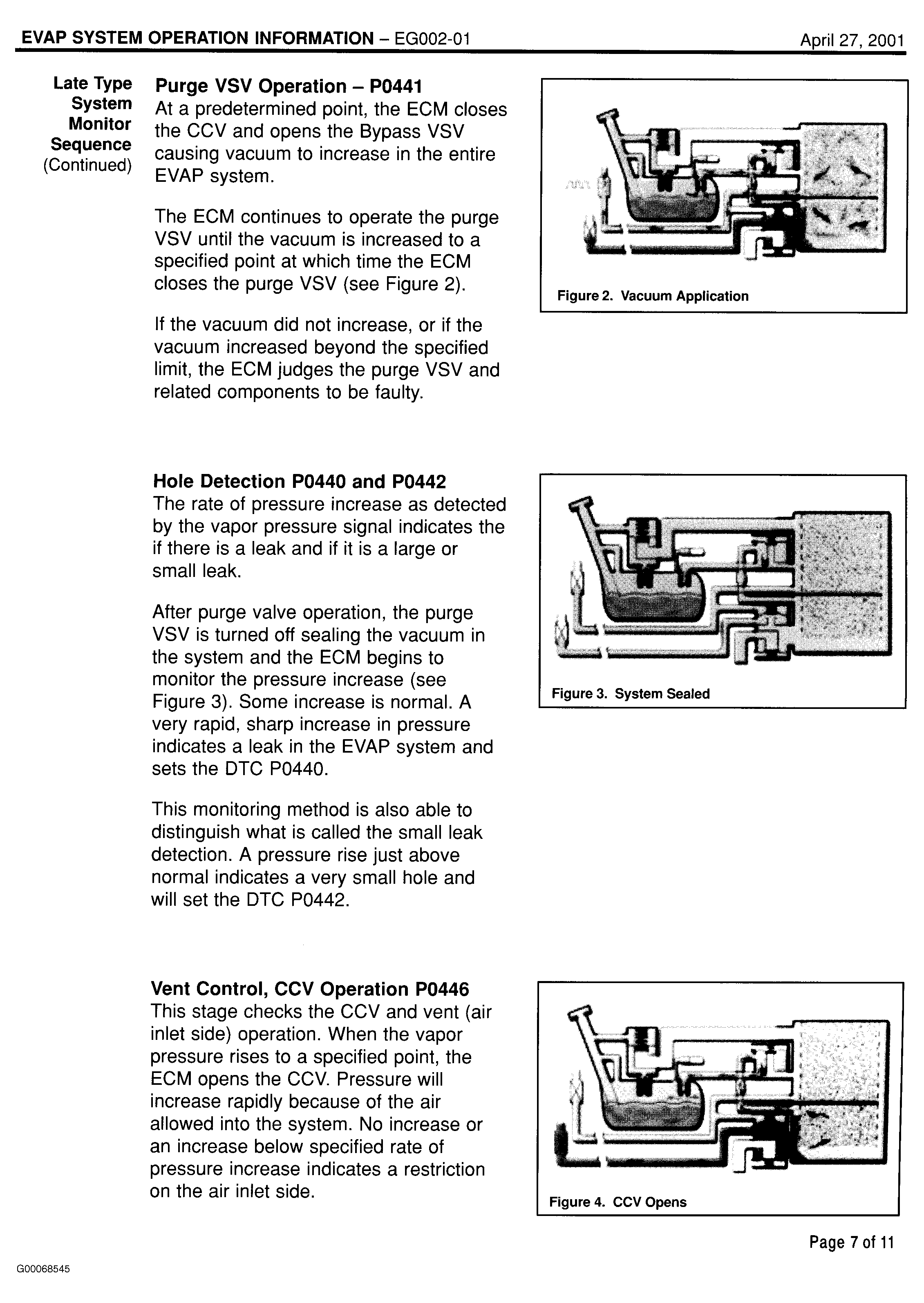

Fig 7: Page 7

G00068545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

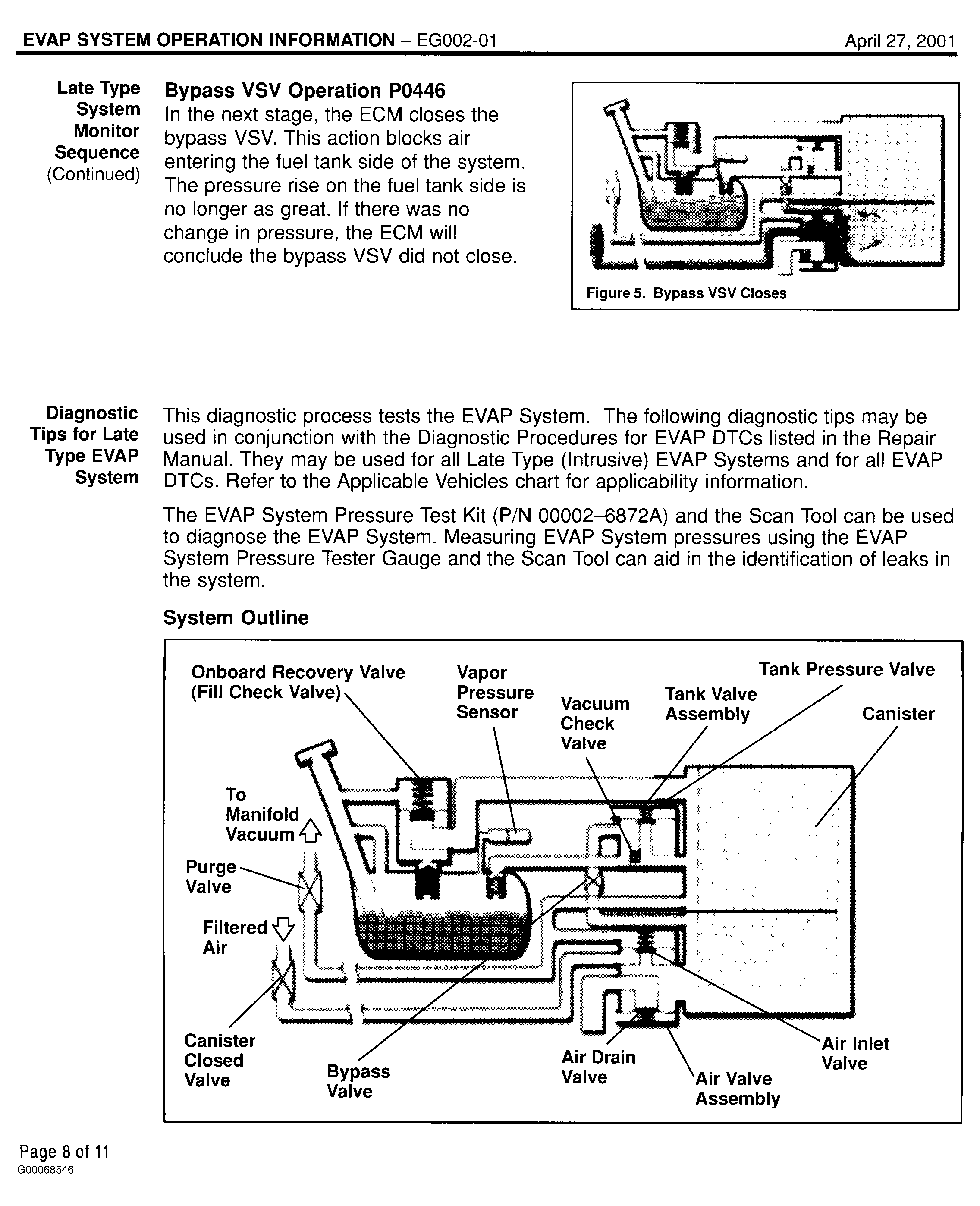

Fig 8: Page 8

G00068546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

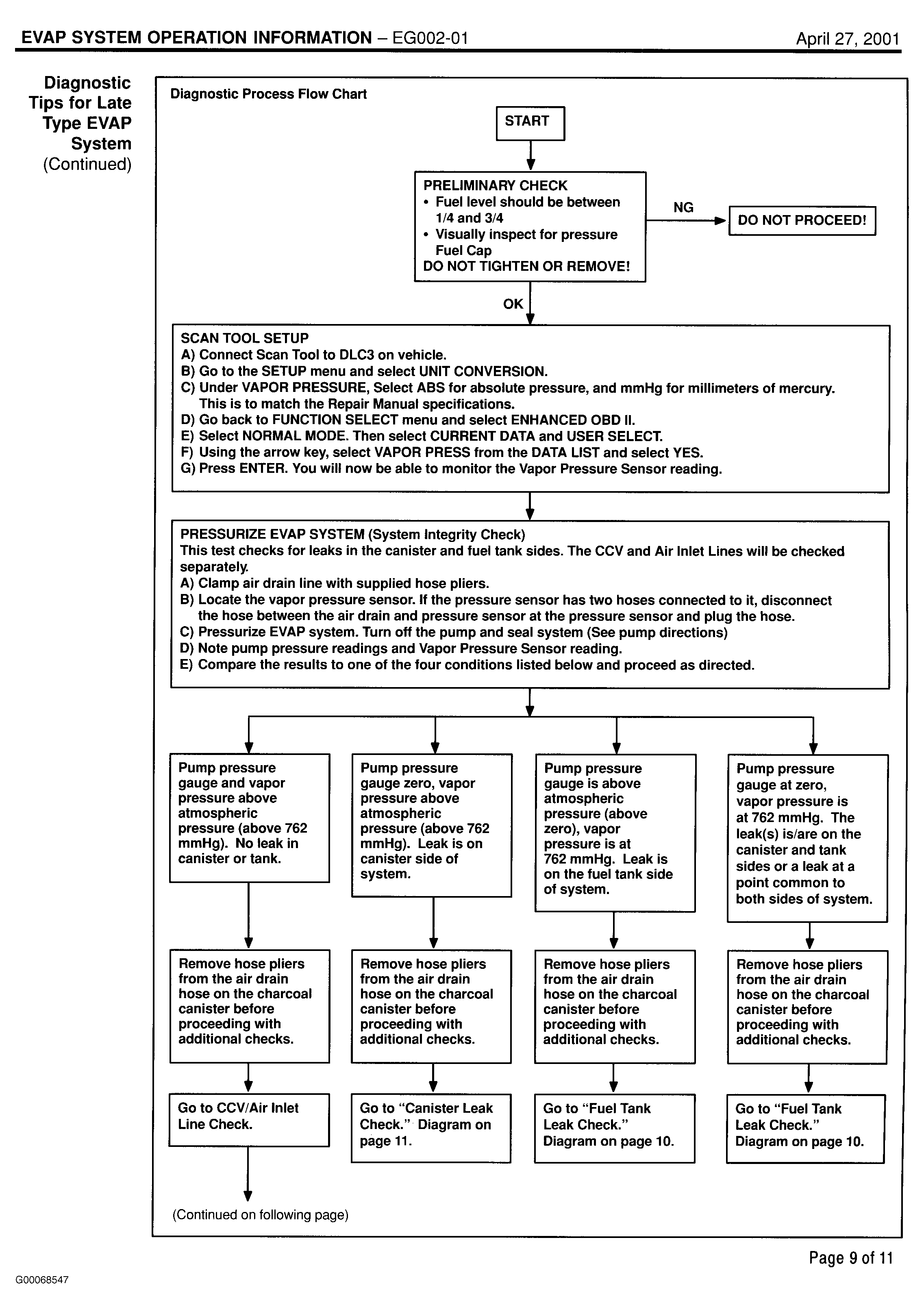

Fig 9: Page 9

G00068547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

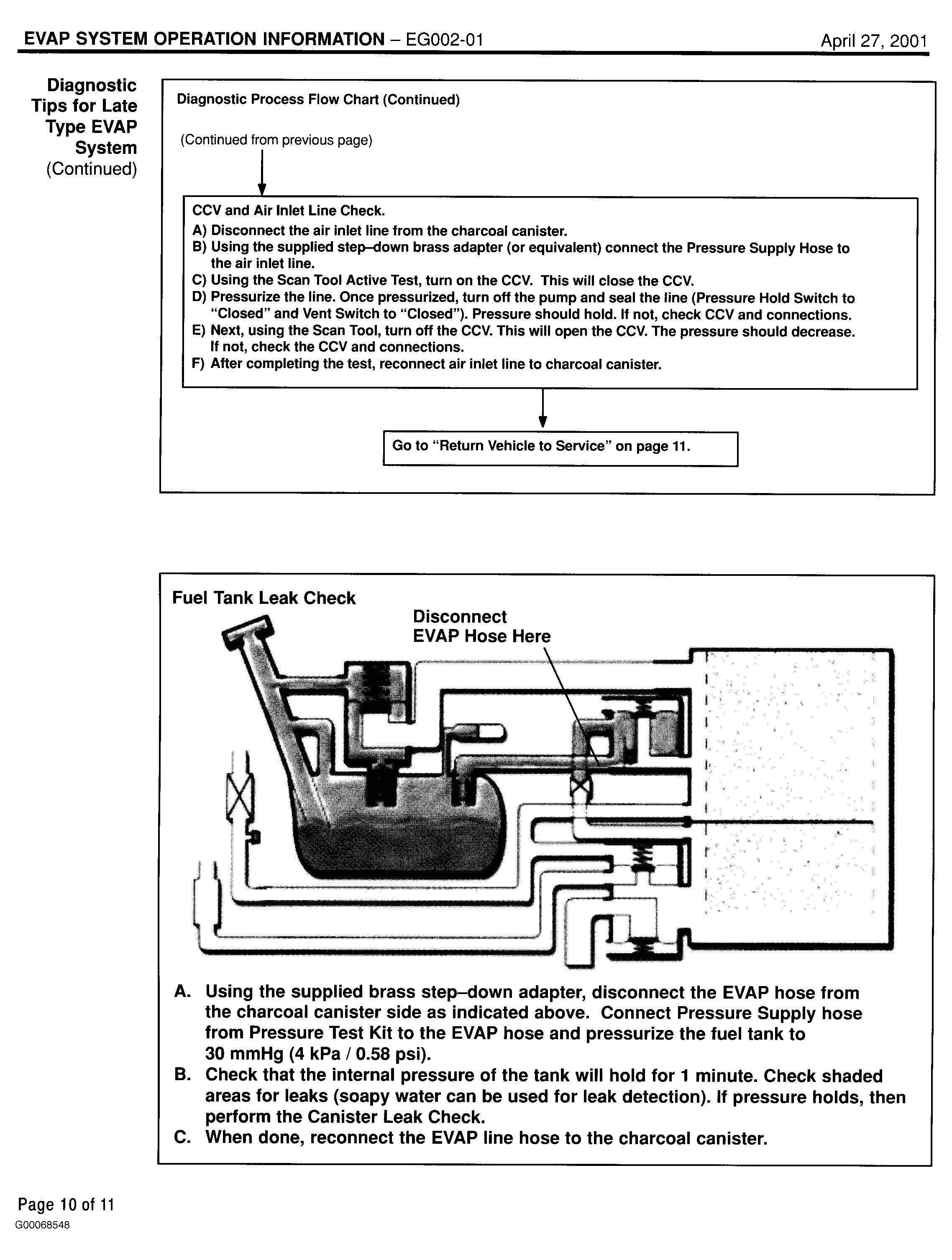

Fig 10: Page 10

G00068548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

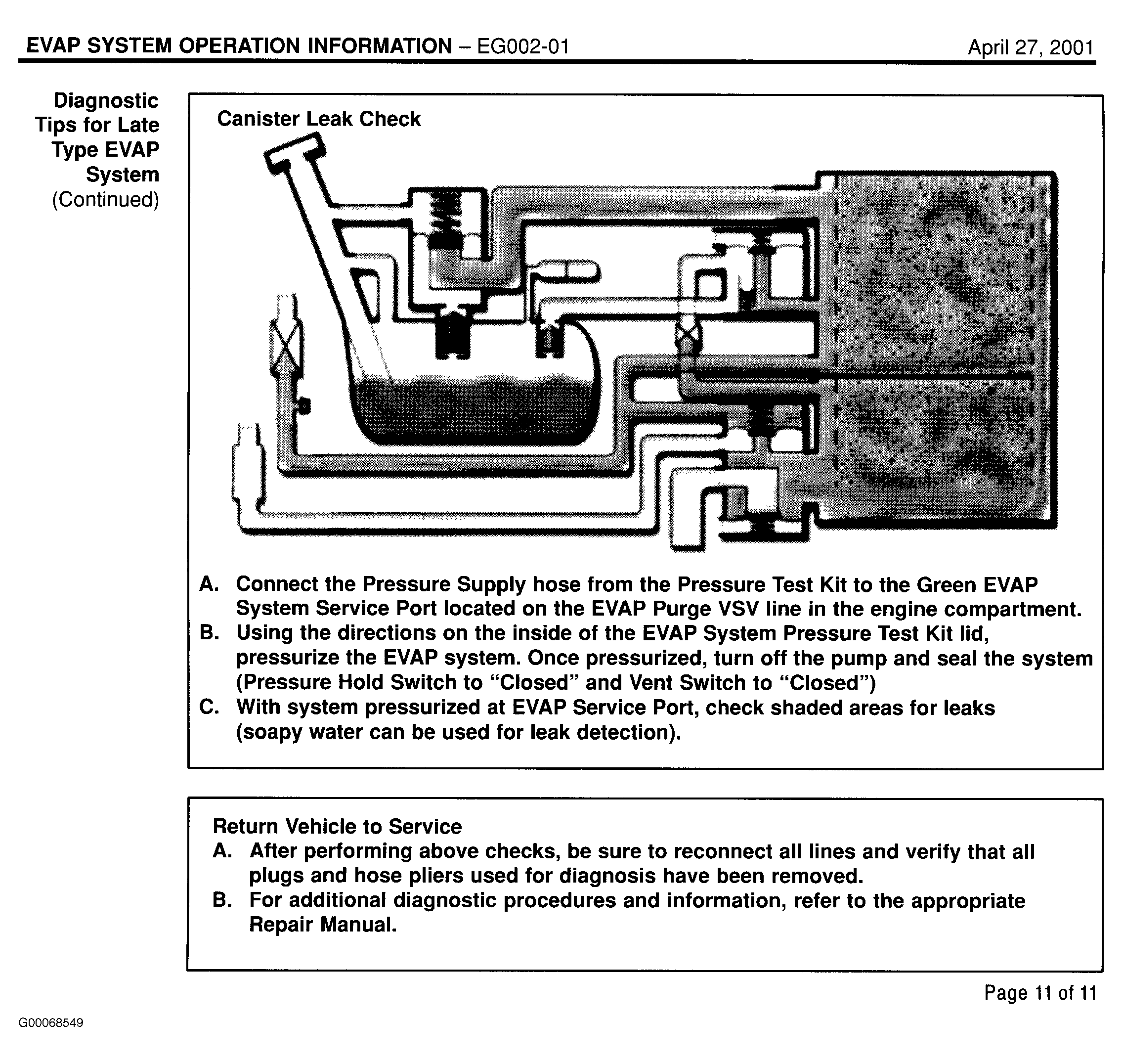

Fig 11: Page 11

G00068549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
