Valve Body Assembly: Inspection
- Clean all parts in solvent. Dry with compressed air. Ensure all valve body passages are clear. Ensure strainers are not damaged or clogged. Inspect valves for scoring or roughness.
- Ensure valves slide freely in bores. Inspect valve springs for damage, squareness and collapsed coils. Measure spring free length. Replace spring if not within specification. See appropriate VALVE BODY SPRING SPECIFICATIONS table. Ensure valve body springs correspond with appropriate valve. Ensure retainers are installed in appropriate locations.
A-340E UPPER VALVE BODY SPRING SPECIFICATIONS
| Spring |
Free Length - In. (mm) |
Diameter - In. (mm) |
Color |
| 1 |
1.075 (27.30) |
.343 (8.70) |
Yellow |
| 2 |
.811 (20.60) |
.362 (9.20) |
Blue |
| 2 (Optional) |
.917 (23.30) |
.362 (9.20) |
White |
| 3 |
1.213 (30.80) |
.382 (9.70) |
Purple |
| 4 |
.967 (24.60) |
.327 (8.30) |
Blue |
| 5 |
.843 (21.40) |
.217 (5.50) |
Light Gray |
| 6 |
1.217 (30.90) |
.441 (11.20) |
Blue |
| 7 |
.858 (21.80) |
.236 (6.00) |
Red |
| 8 |
1.213 (30.80) |
.382 (9.70) |
Purple |
| 9 |
1.039 (26.40) |
.327 (8.30) |
Yellow |
A-340E LOWER VALVE BODY SPRING SPECIFICATIONS
| Spring |
Free Length - In. (mm) |
Diameter - In. (mm) |
Color |
| 1 |
.796 (20.20) |
.476 (12.10) |
None |
| 2 |
.441 (11.20) |
.252 (6.40) |
None |
| 3 |
1.213 (30.80) |
.382 (9.70) |
Purple |
| 4 |
2.626 (66.70) |
.732 (18.60) |
Purple |
| 5 |
1.422 (36.10) |
.350 (8.90) |
White |

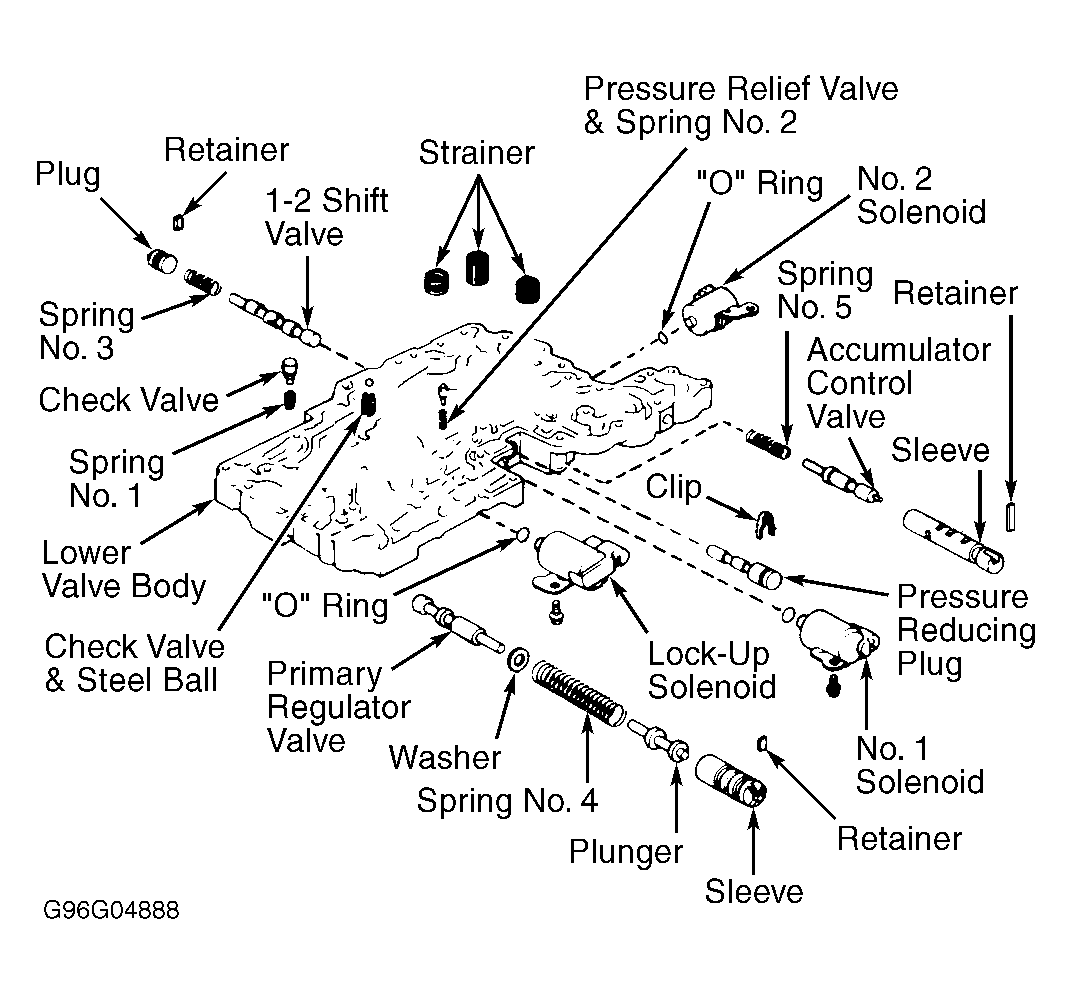

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

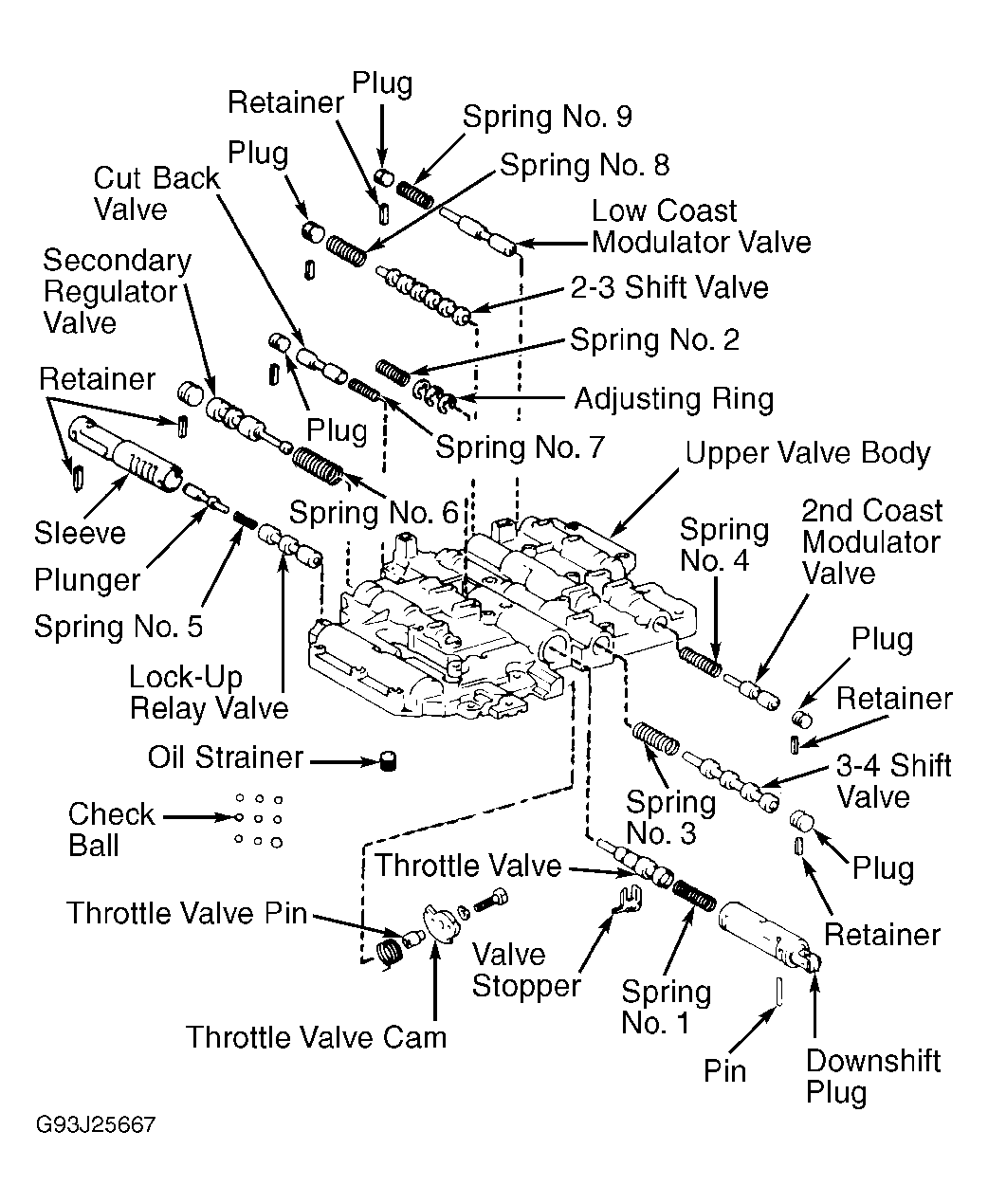

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
Valves may be held in with pins or retainers and plugs. Remove components and note locations. Arrange parts in order for reassembly reference.
