Valve Body Assembly: Installation
- To install, reverse removal procedure. Ensure check ball body and spring are installed above valve body. Ensure manual shift lever in transmission case aligns with manual valve of valve body.

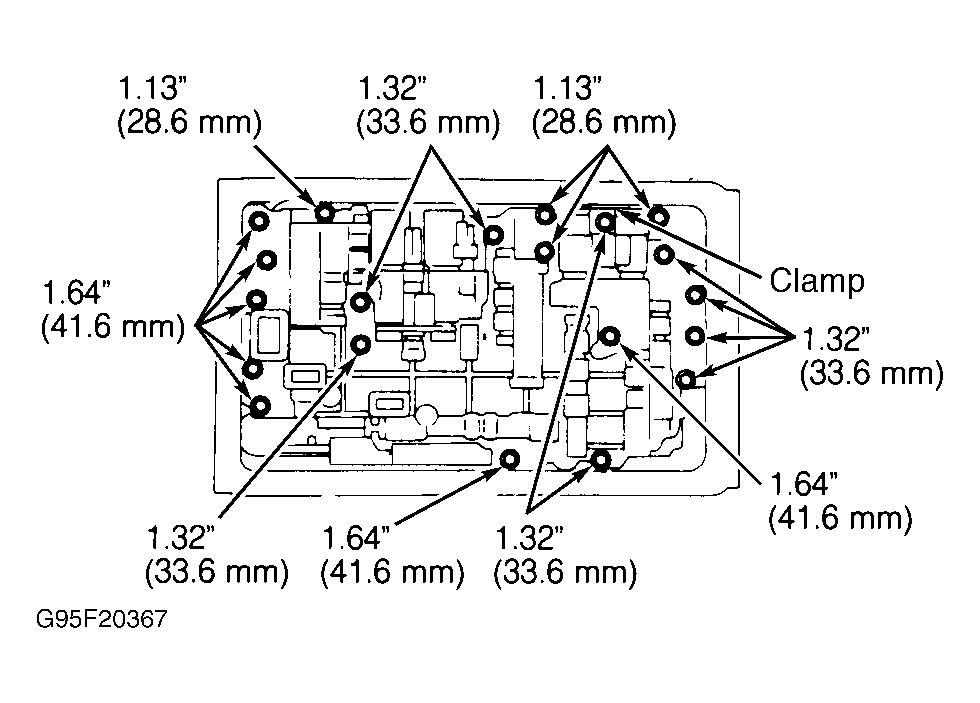

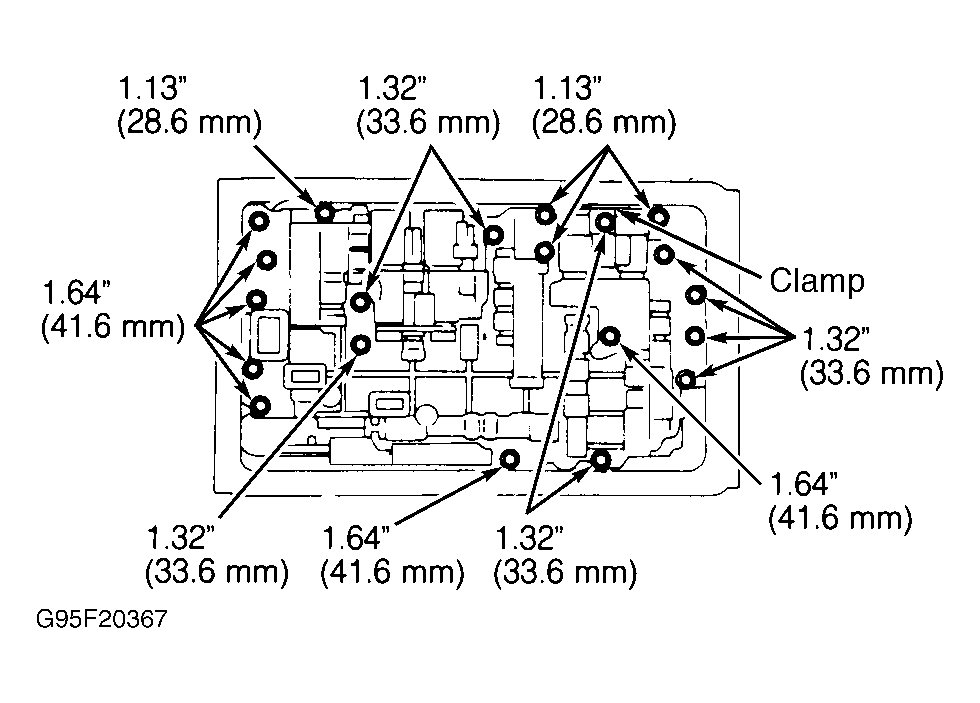

- Install accumulator piston springs and spacers in original location. See TRANSMISSION REASSEMBLY . Proper length bolts must be installed in designated areas. See Fig 1. Use new oil filter and gasket if necessary. Ensure oil tubes do not contact oil pan (if equipped). Install magnets in oil pan. Install oil pan with NEW gasket. Fill fluid to proper level.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
