Power Seat Control System (Driver)

Driver's Side

CIRCUIT DESCRIPTION
This circuit provides power for ECU operation and is also the power source for the sensors.

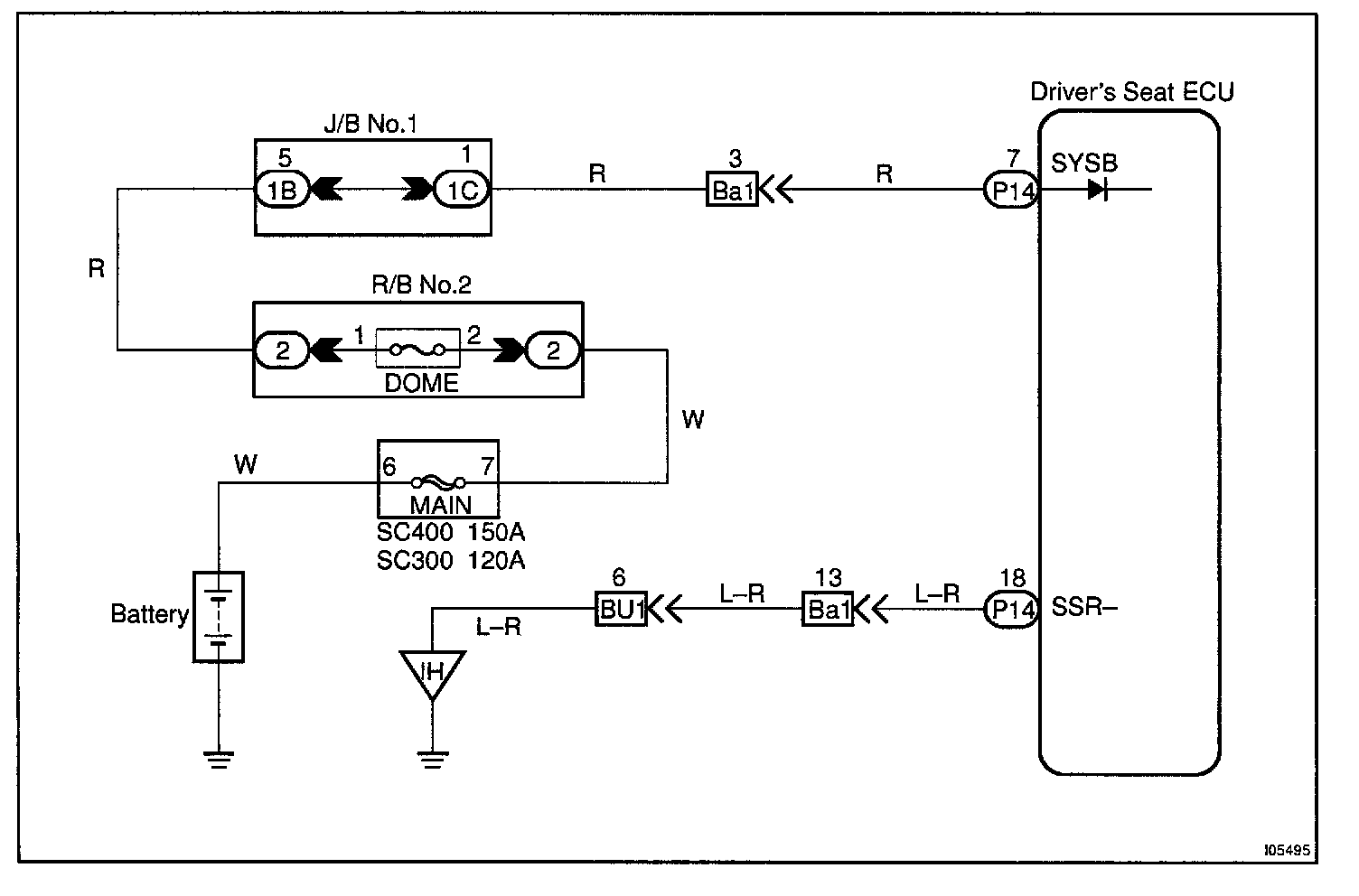

Wiring Diagram:

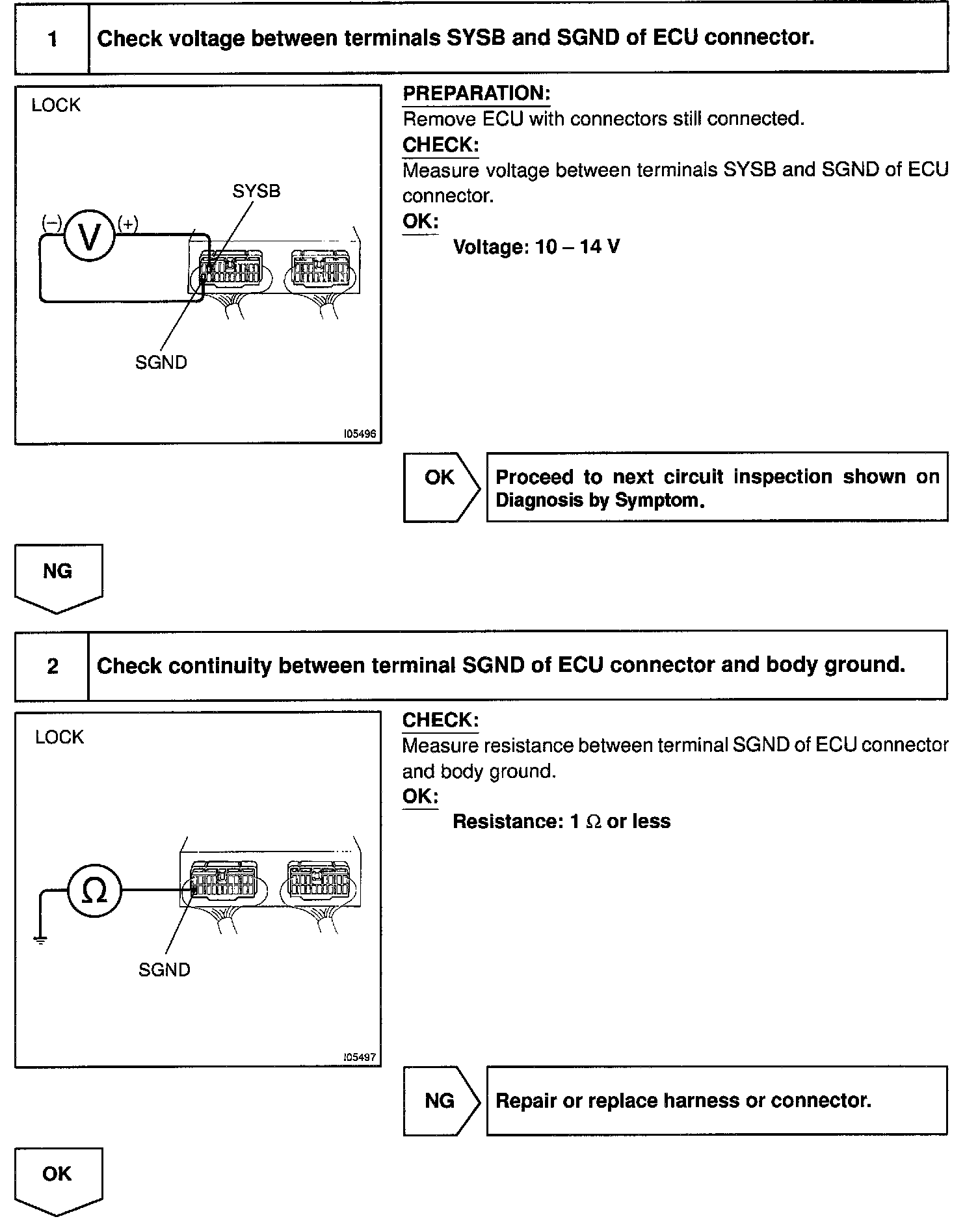

Step 1 - 2:

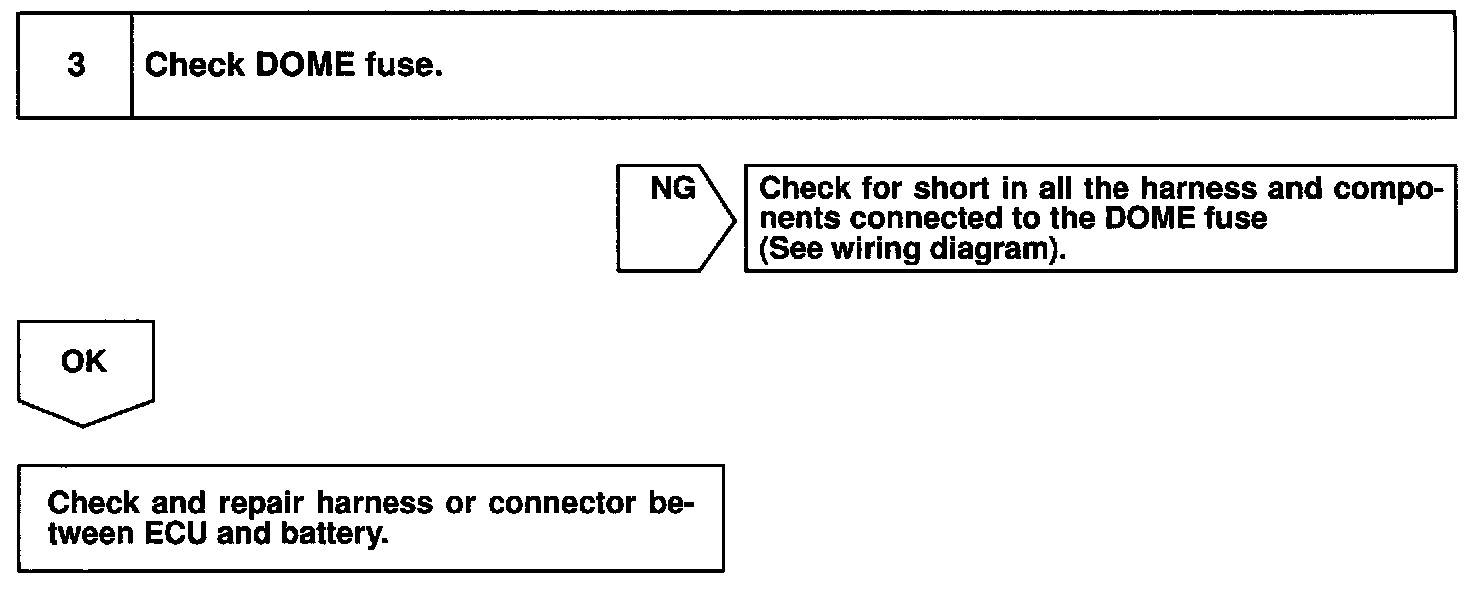

Step 3:

INSPECTION PROCEDURE
