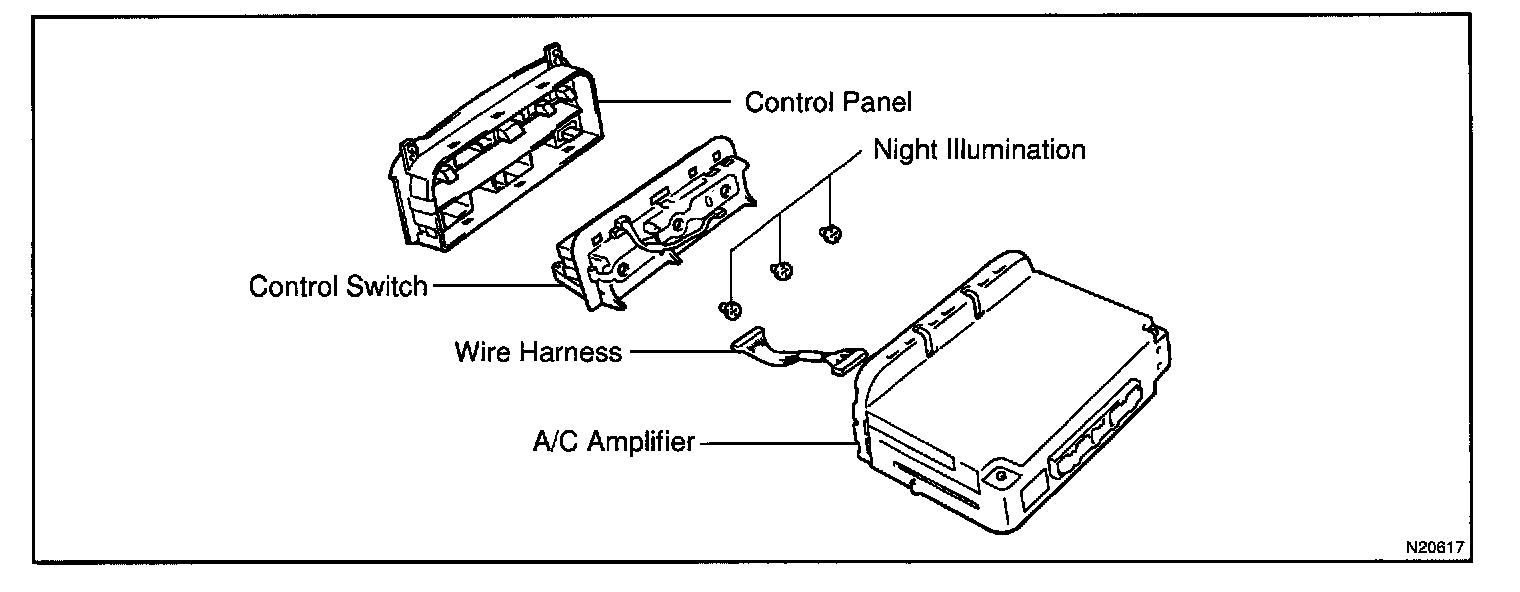

Disassembly and Reassembly

DISASSEMBLY







1. SEPARATE CONTROL PANEL FROM CASE

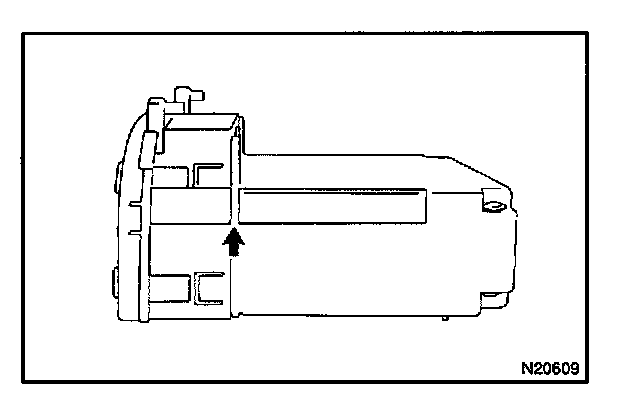

a. Cut up cloth tapes affixed on both sides of the case, as shown in the illumination.




b. Remove the 2 screws and release the 6 claws to separate the control panel from the case.

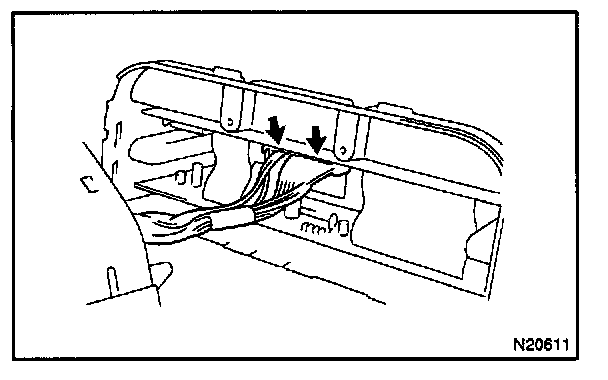

c. Disconnect the 2 connectors and separate the control panel from the case.
d. Remove the wire harness from control panel.




2. REMOVE NIGHT ILLUMINATION BULB

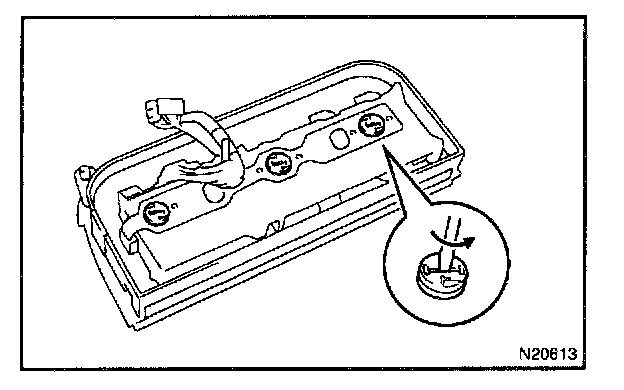

Using a flat-bladed screwdriver, remove the night illumination bulbs.




3. REMOVE CONTROL SWITCH

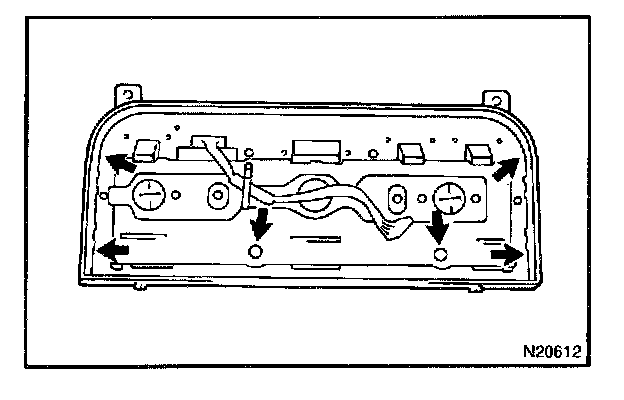

Release the 2 screws and the 4 clips as shown on the illumination, then remove the control switch.

REASSEMBLY
Reassembly is in the reverse order of disassembly
