Air Flow Meter/Sensor: Service and Repair

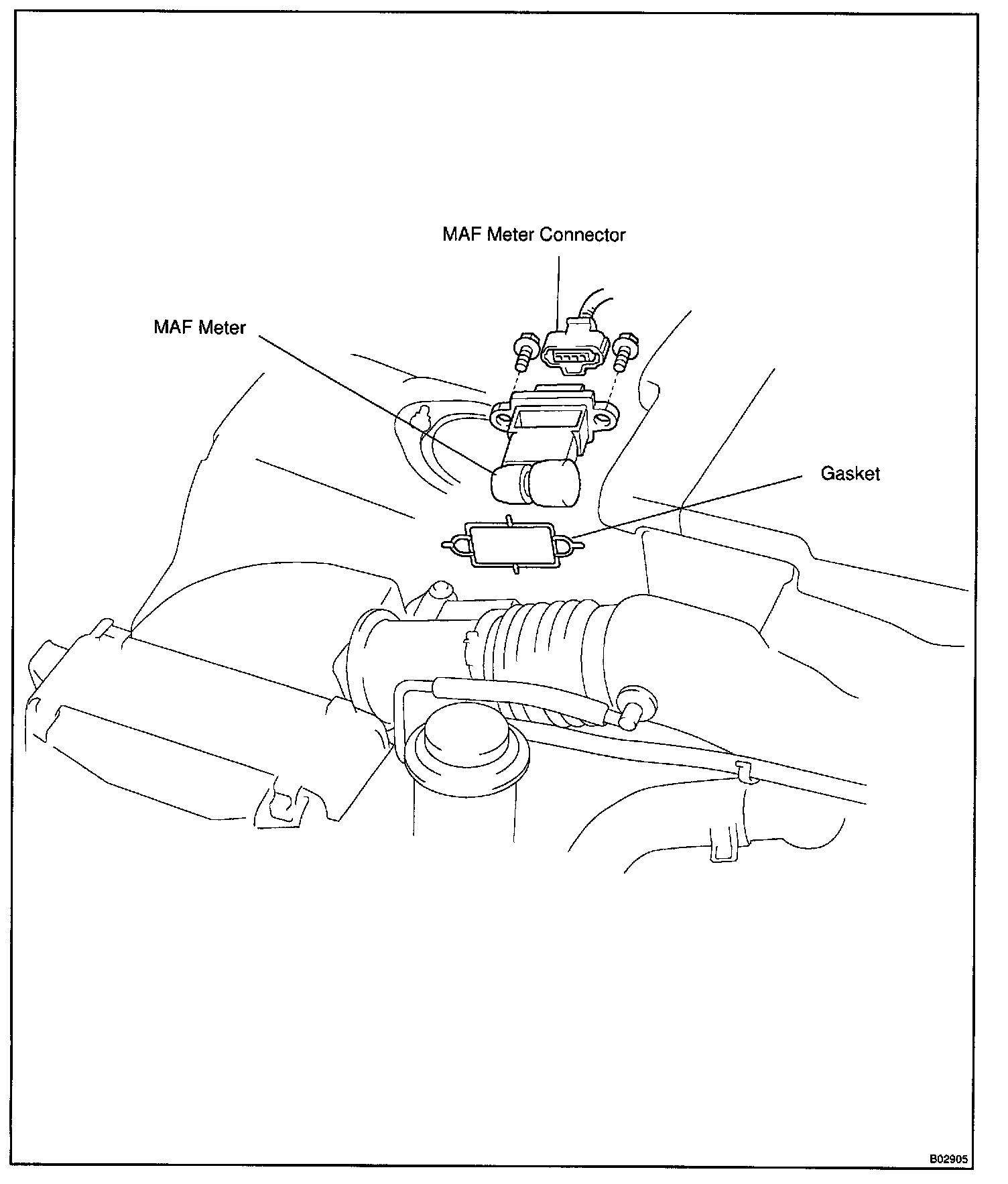

COMPONENTS

REMOVAL

REMOVE MAF METER
a. Disconnect the MAF meter connector.

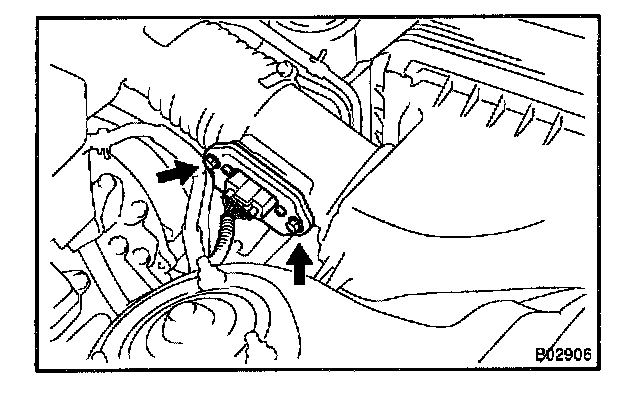

b. Remove the 2 bolts, MAF meter and gasket.

INSTALLATION
Installation is in the reverse order of removal.
