Anti-Theft Systems: Description

WARNING: Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

When anti-theft system is set (armed), system locks all doors, flashes headlights and taillights, and sounds alarm if one of the following conditions occur. See Fig 1 and Fig 2 .

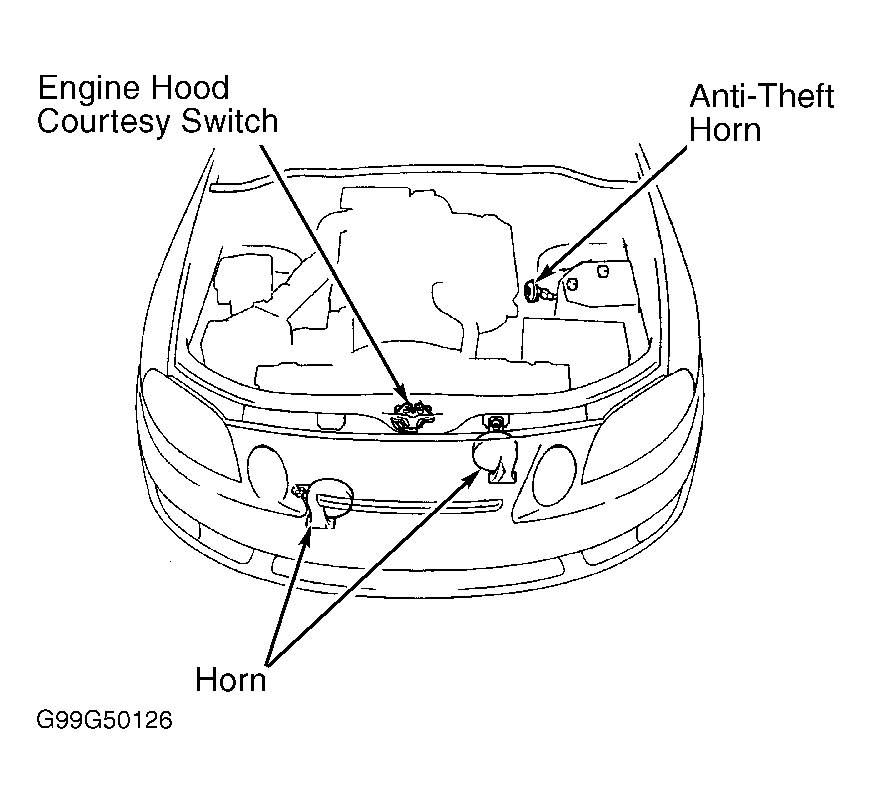

Fig 1: Anti-Theft System Components (SC300 & SC400 - 1 Of 2)
G99G50126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

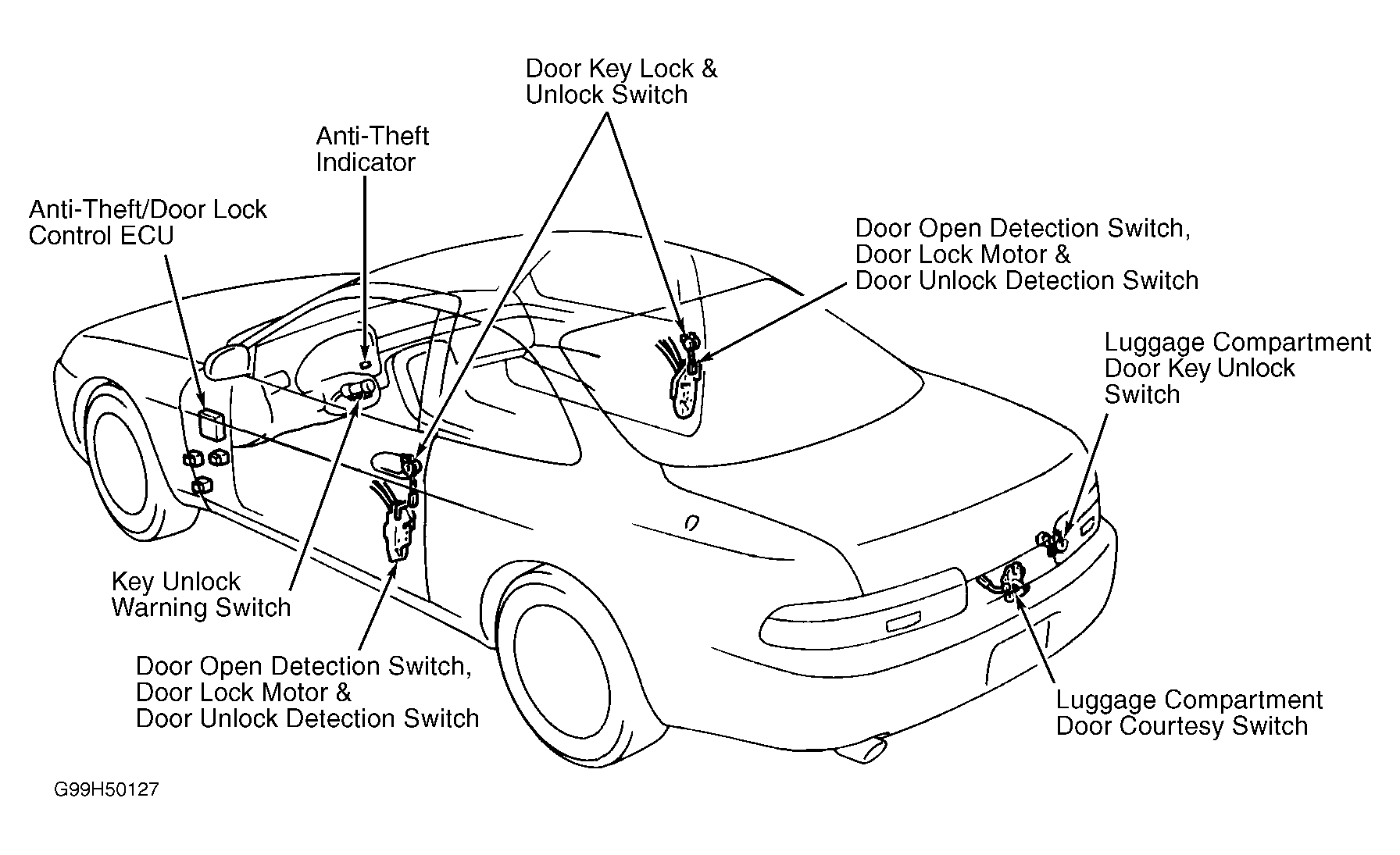

Fig 2: Anti-Theft System Components (SC300 & SC400 - 2 Of 2)
G99H50127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
