One-Touch System Circuit
NOTE:
During window operation, contacts of circuit breaker inside power window motor will open within 4-40 seconds at end of window travel if power is continually applied. All ammeter readings should be taken before circuit breaker contacts open.

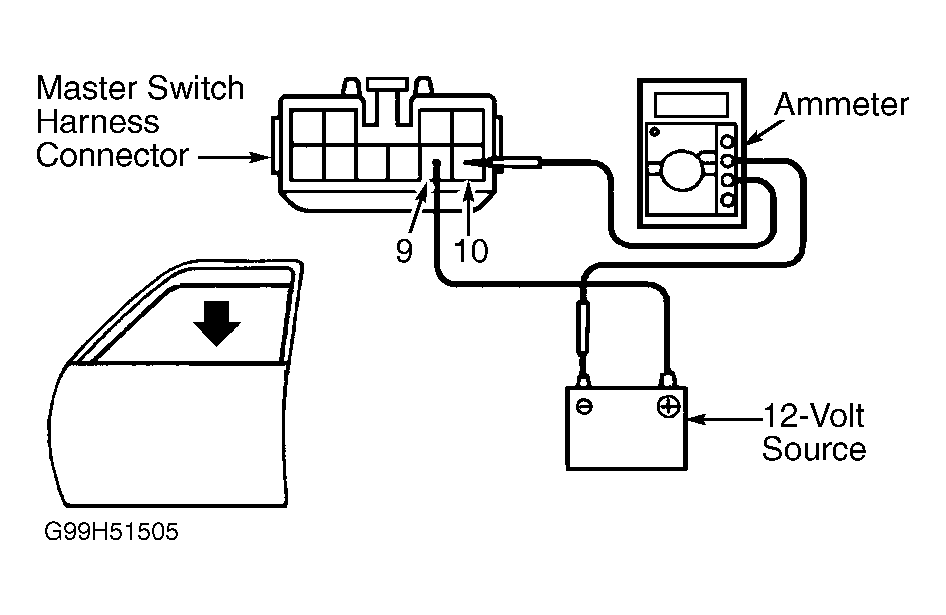

Disconnect master switch. Using ammeter, connect positive lead to terminal No. 10 of master switch harness connector. See Fig 1. Connect negative lead to negative battery terminal. Using jumper wire, jumper terminal No. 9 of master switch harness connector to battery positive. As window travels downward, ammeter should indicate about 7 amps. When window reaches end of travel, ammeter should indicate 14.5 amps or greater.
