Removal & Installation : SC400: Installation

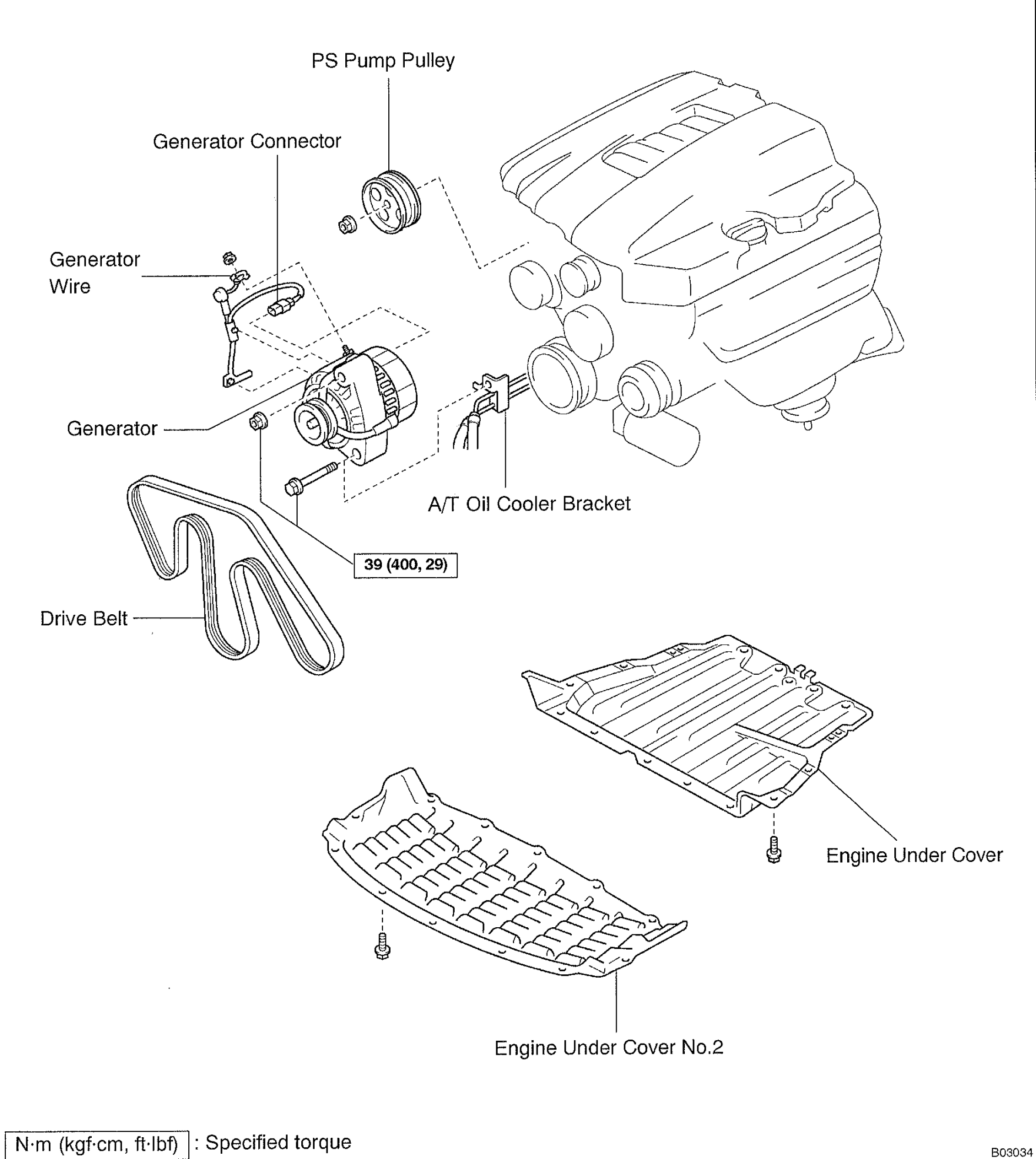

- Install generator. Install the generator and transmission oil cooler bracket with the bolt and nut. Torque: 39 N*m (400 kgf-cm, 29 ft-Ibf)
- Connect the generator connector. Connect the generator wire with the nut and rubber cap.
- Install power steering vane pump pulley (if removed).

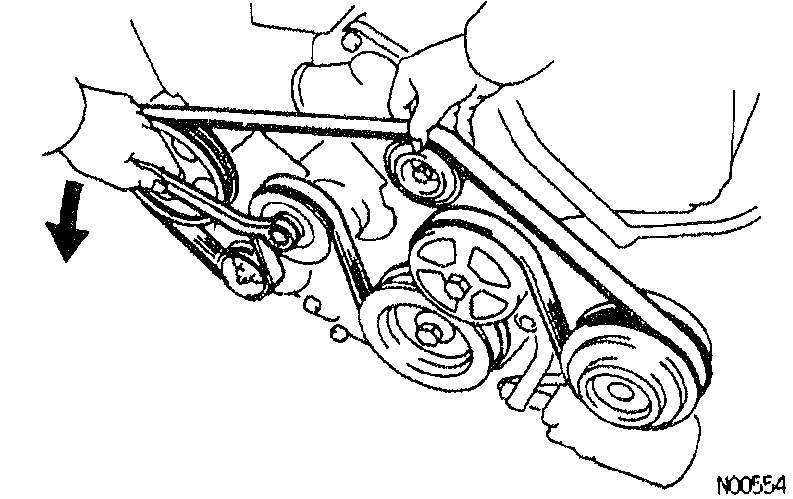

- Install drive belt. Install the drive belt by turning the drive belt tensioner counterclockwise. See FigureNOTE: The pulley bolt for the belt tensioner has a lefthand thread.
- Connect negative (-) terminal cable to battery.
- Perform on-vehicle inspection. SeeON-VEHICLE TESTING .
- Install engine undercover
