Relay Block No. 2

Relay block (R/B) No. 2 is located on left inner panel, in engine compartment. See Fig 1.

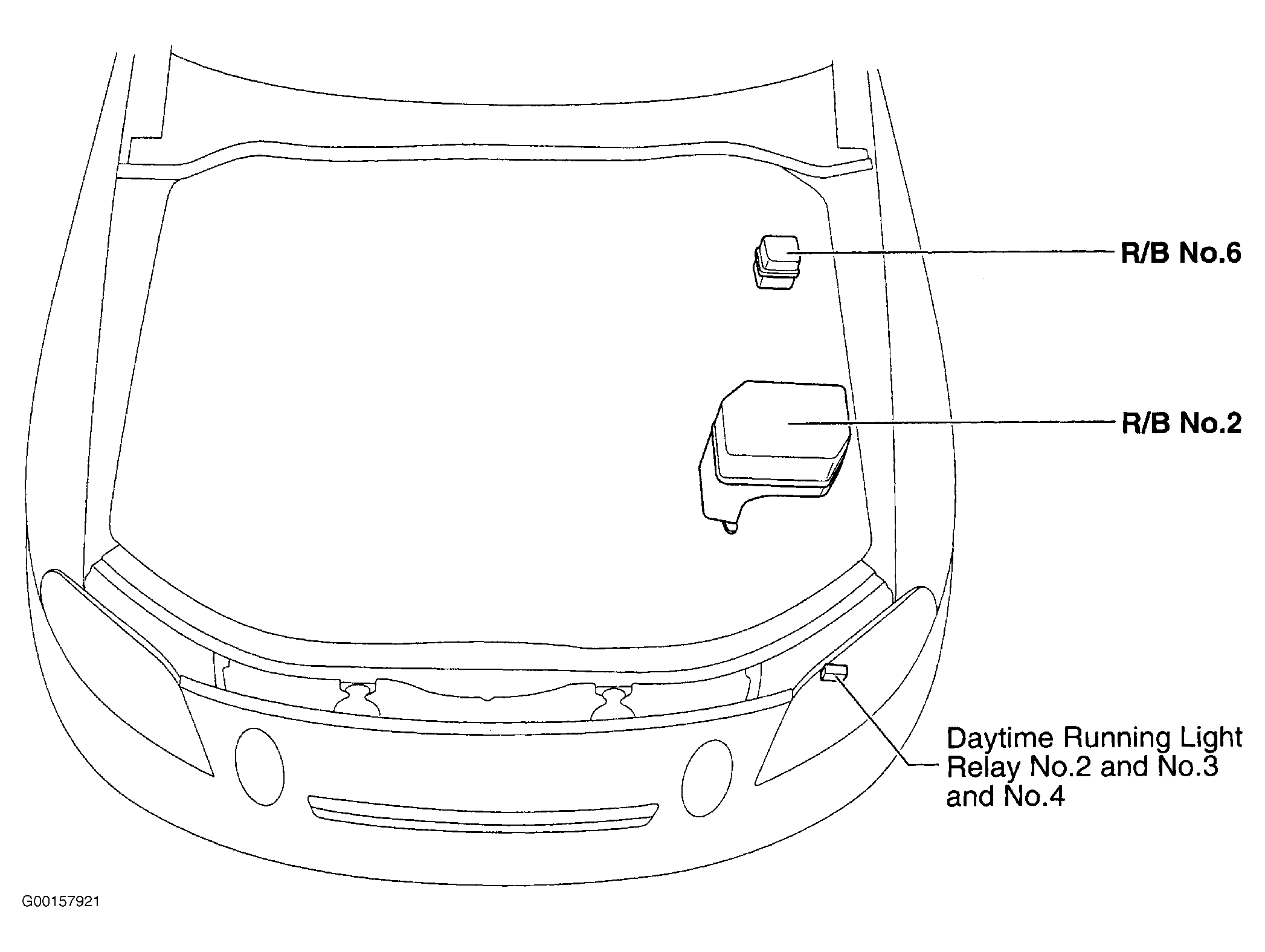

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

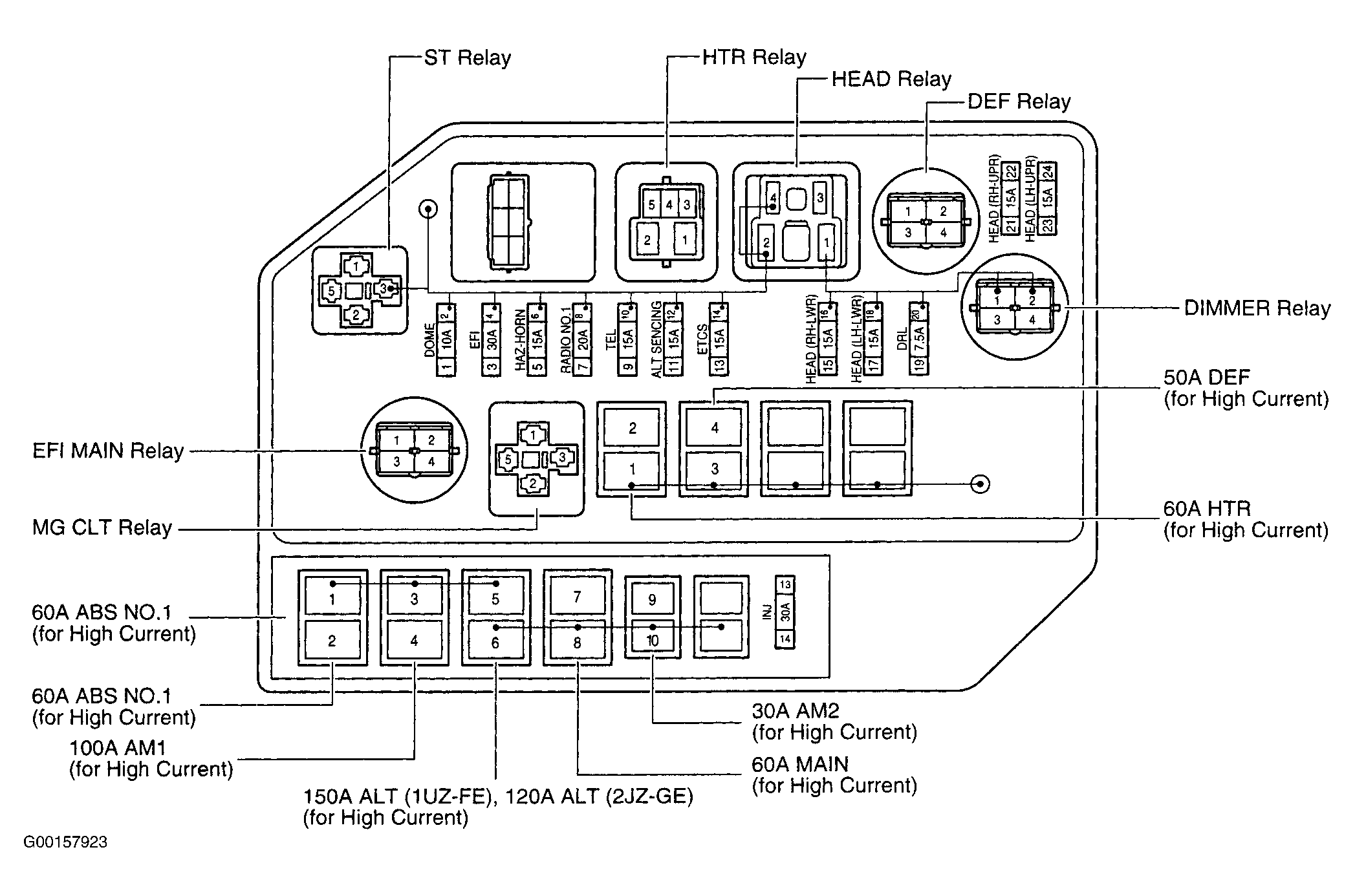

Fig 2: Identifying Relay Block No. 2 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

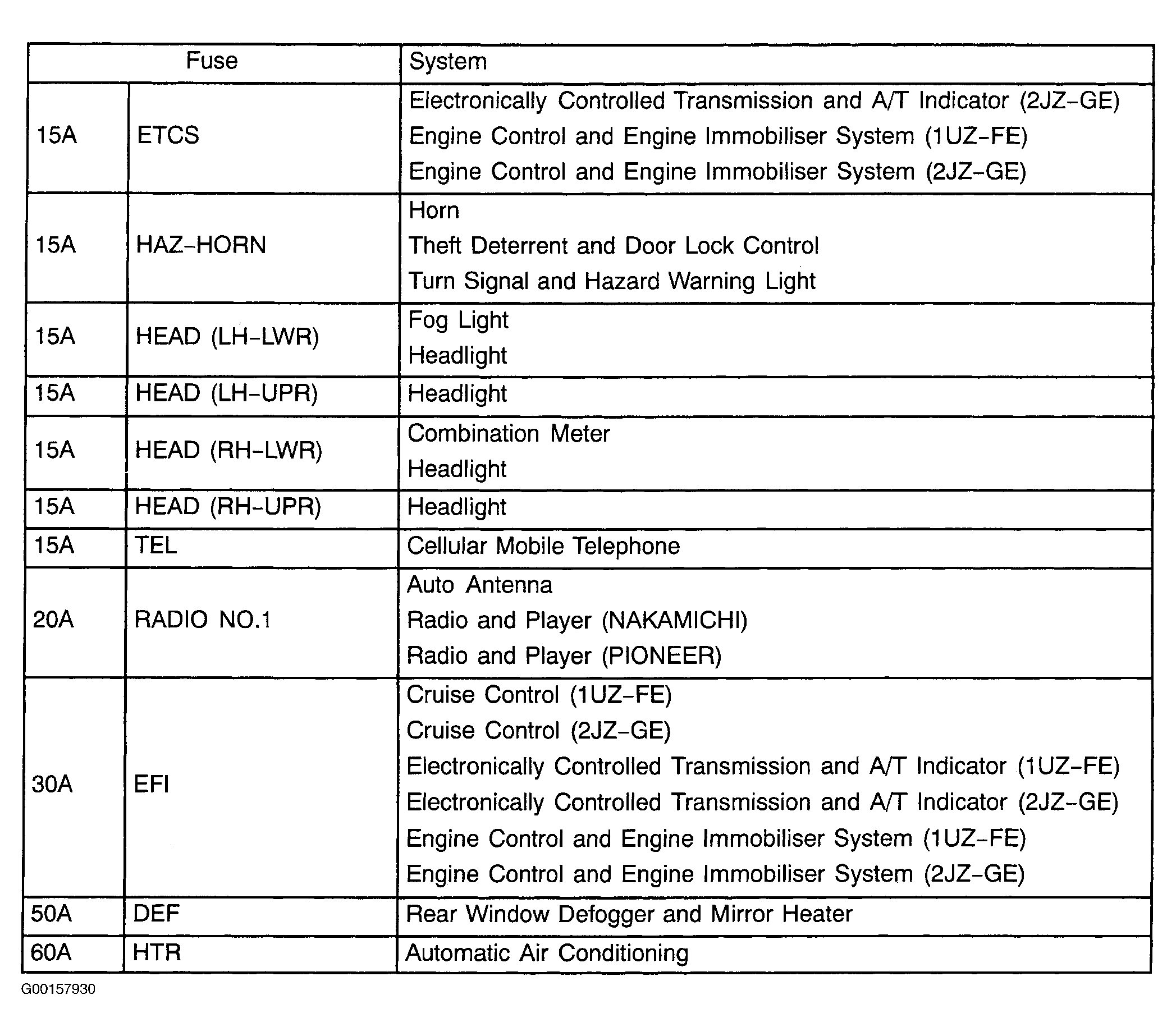

Fig 3: Relay Block No. 2 Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

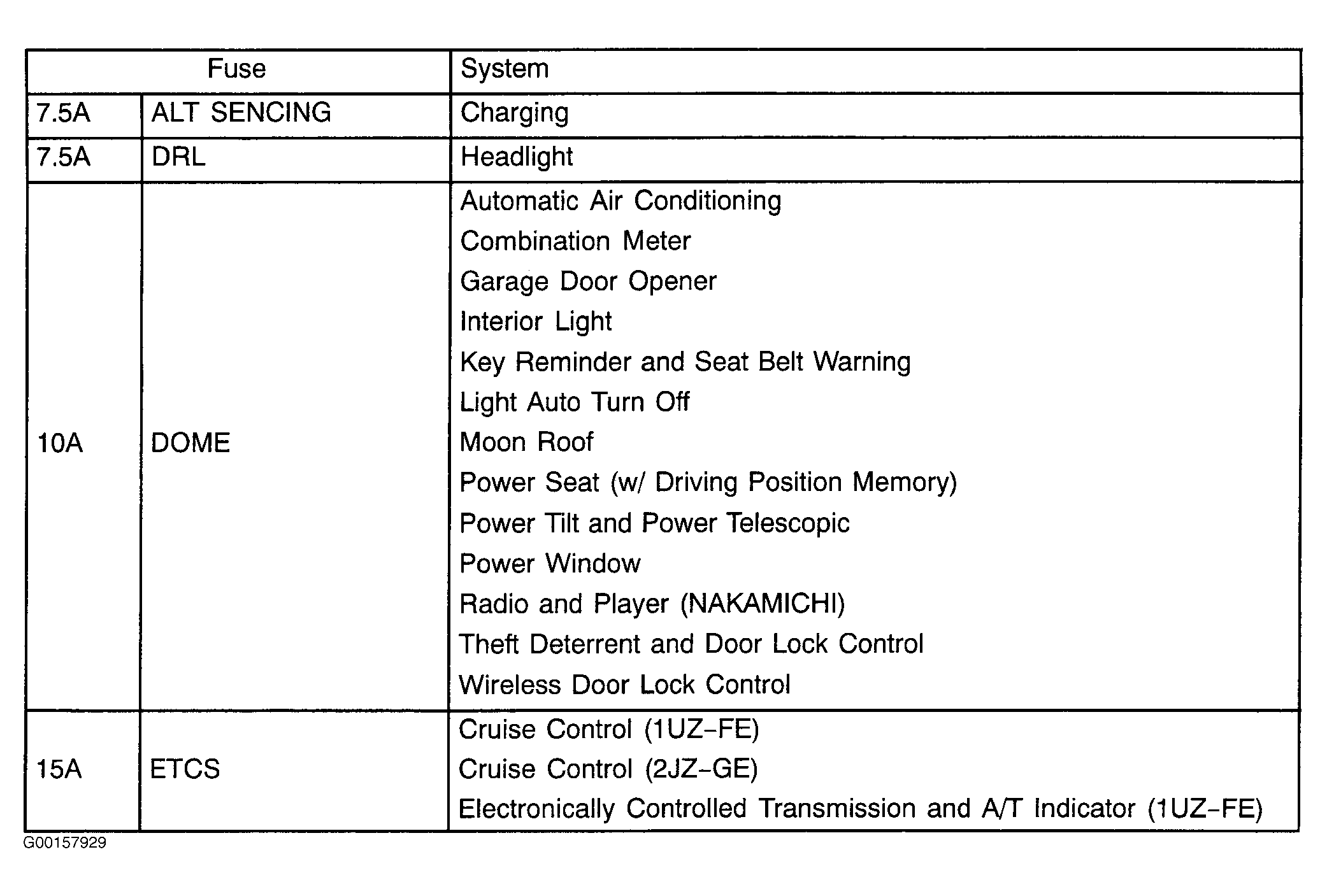

Fig 4: Relay Block No. 2 Legend (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
