Alignment Pin Installation During Transmission/Transaxle Assembly Installation (L-SB-0026-08)
Publication date: 2008-05-08Reference number: L-SB-0026-08
ALIGNMENT PIN INSTALLATION DURING TRANSMISSION/TRANSAXLE ASSEMBLY INSTALLATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): L-SB-0026-08, Date of Issue:
May 08, 2008
| Section: | Automatic Transmission/Transaxle |
| Service Category: | Drivetrain |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Applicability
APPLICABILITY REFERENCE
| YEAR(S) | MODEL(S) | ADDITIONAL INFORMATION |
|---|---|---|
| 1990 - 2009 | ES250, ES300, ES330, ES350, GS300, GS350, GS400, GS430, GS450H, GS460, GX470, IS F, IS250, IS300, IS350, LS400, LS430, LS460, LS600H, LX450, LX470, LX570, RX300, RX330, RX350, RX400H, SC300, SC400, SC430 |
Introduction
The purpose of this TSIB is to provide information regarding the installation of alignment pins during transmission/transaxle assembly installation. Missing alignment pins may result in incorrect alignment and failure of the transmission/transaxle assembly. Use the information below when installing a transmission/transaxle assembly.
Parts Information
PARTS INFORMATION
| PREVIOUS PART NUMBER | CURRENT PART NUMBER | PART NAME | QTY |
|---|---|---|---|
| 90250-10113 | Same | Straight Pin | 2 |
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Repair Procedure

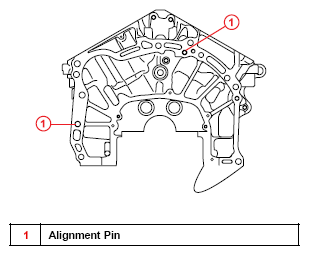

- Inspect the rear side of the engine block assembly for 2 alignment pins.
- If there are less than 2 alignment pins present, one may have been removed with the transmission/transaxle assembly. Check the removed assembly for the missing alignment pins. Go to step 2.
- If there are 2 alignment pins present, the transmission/transaxle assembly may be installed following the applicable Repair Manual procedure.
NOTE: A missing alignment pin may result in failure of the transmission/transaxle assembly. - Install the missing alignment pin(s).
- Refer to the applicable Repair Manual procedure for location of the cylinder block rear side alignment pins.
NOTE: In the Repair Manual, the alignment pin is referred to as a "straight pin."
