MIDTRONICS Battery Tester Software Update (SS002-02)

Publication date: 2002-06-07
Reference number: SS002-02

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS002-02, Date of Issue:  June 7, 2002
LEXUS: All Models & Model Years Through Current
GROUP: Special Service Tools
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

MIDTRONICS BATTERY TESTER SOFTWARE UPDATE

The internal software of the Midtronics Battery Tester can now be periodically updated to support future models. New updates will include new battery warranty codes and testing information.

BULLETIN CONTENT

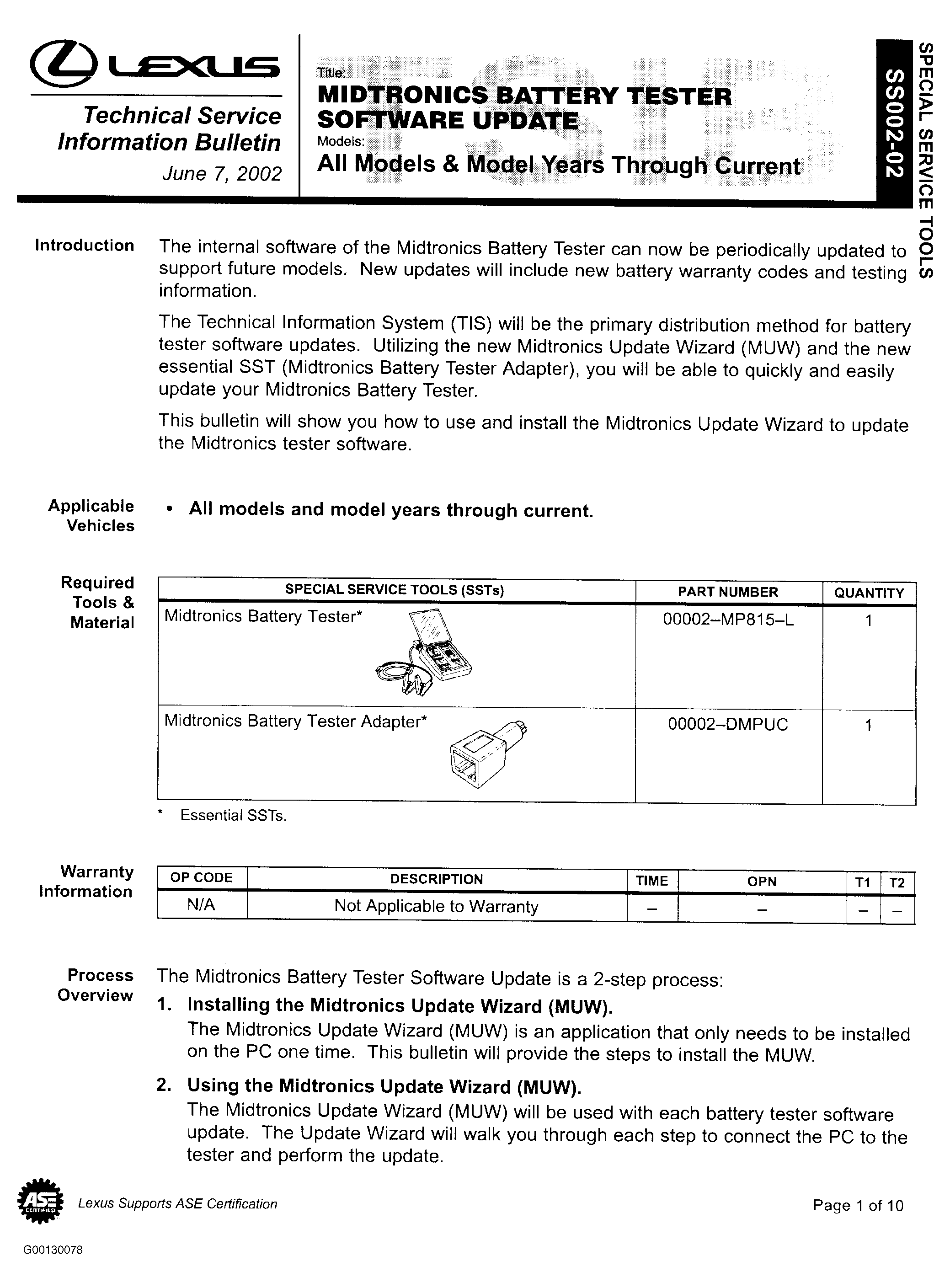

Fig 1: Page 1 of Bulletin
G00130078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

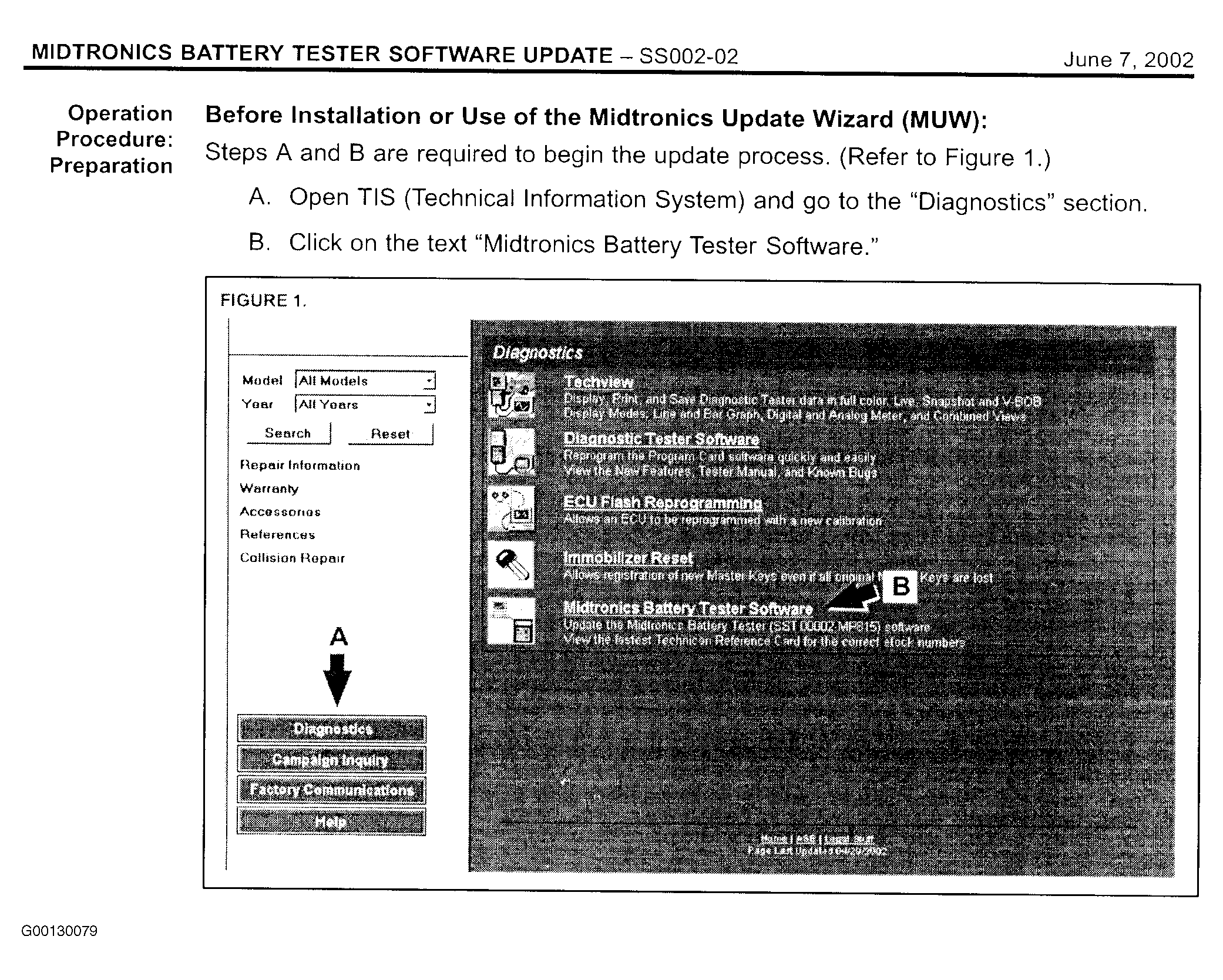

Fig 2: Page 2 of Bulletin
G00130079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

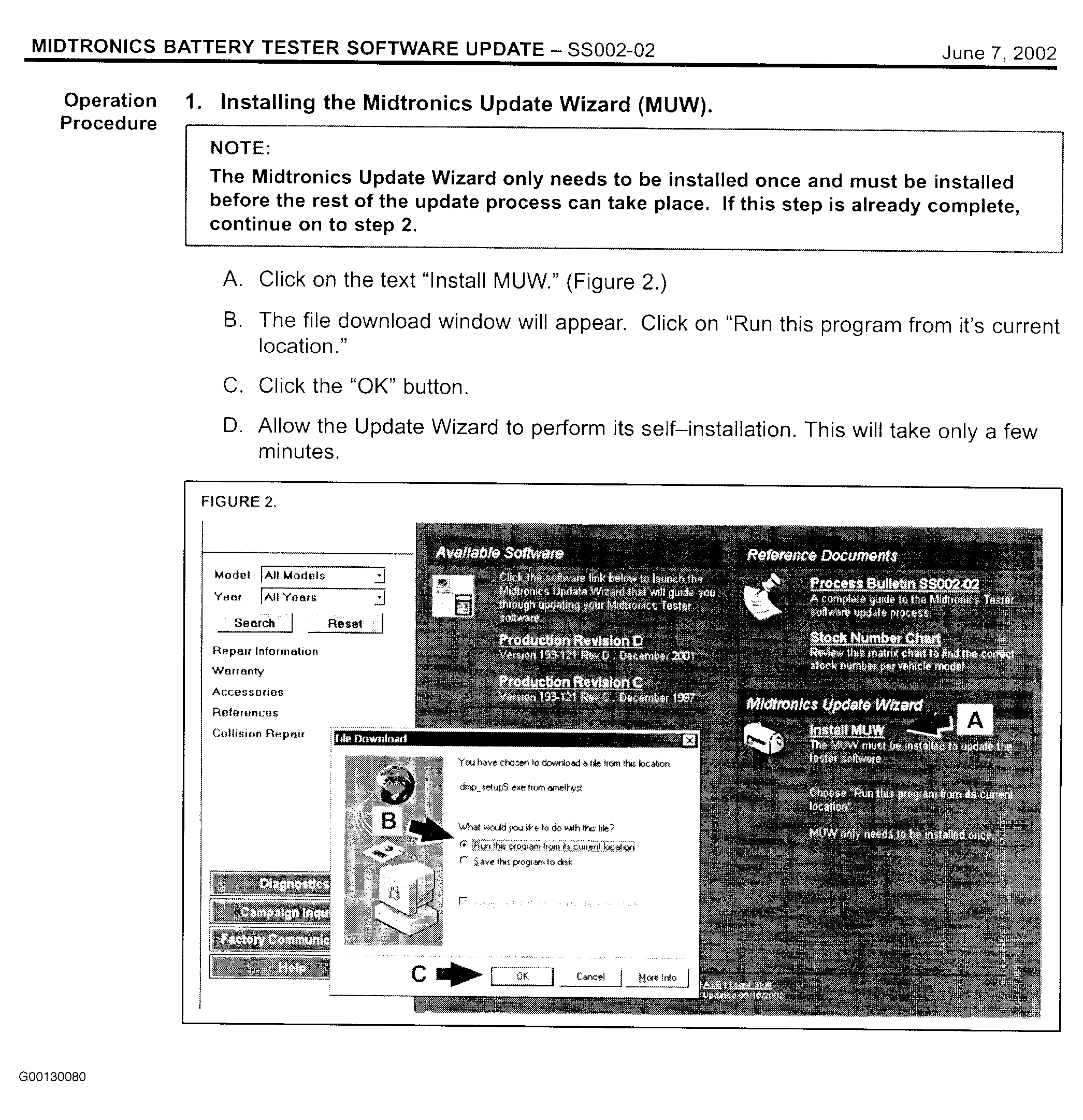

Fig 3: Page 3 of Bulletin
G00130080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

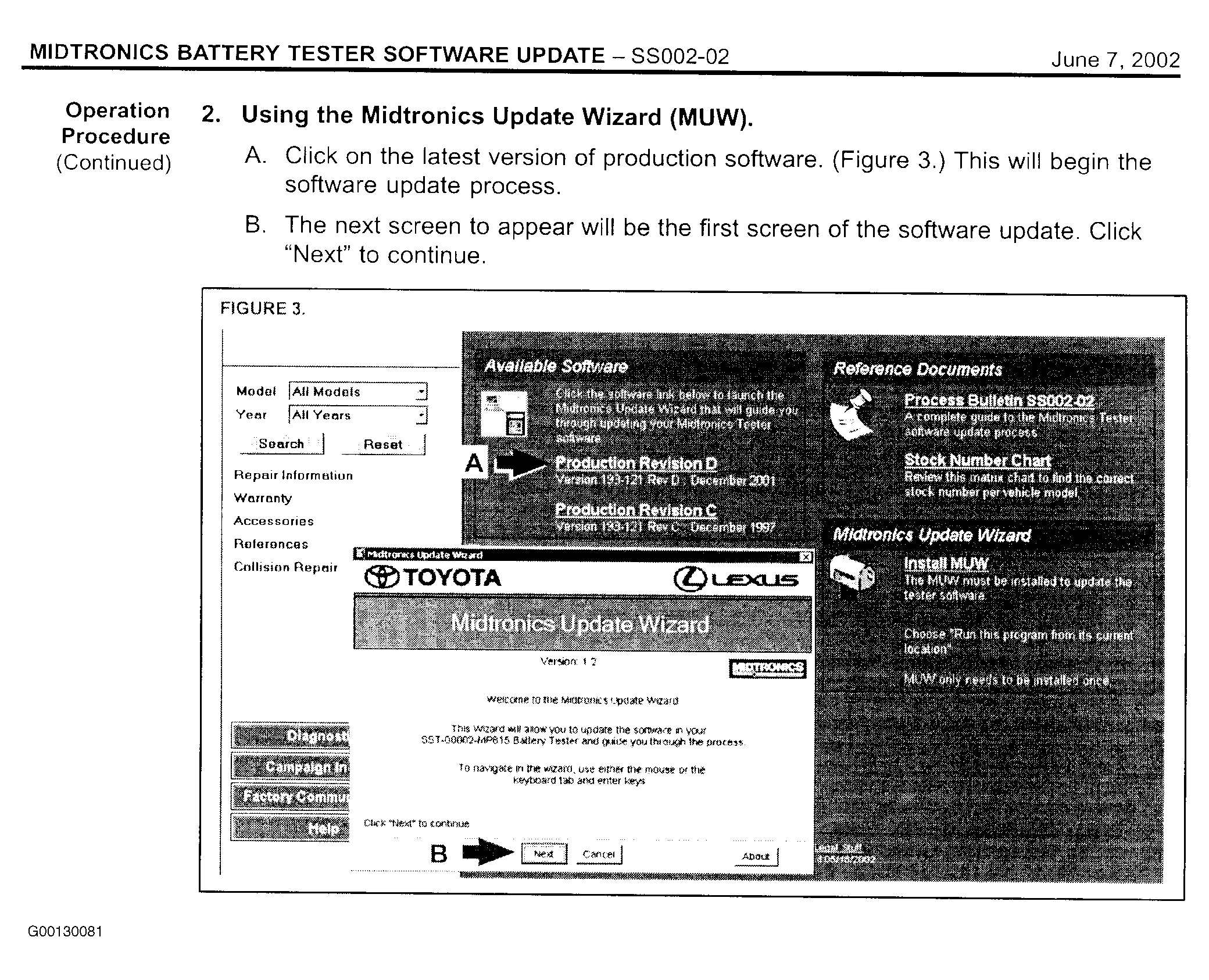

Fig 4: Page 4 of Bulletin
G00130081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

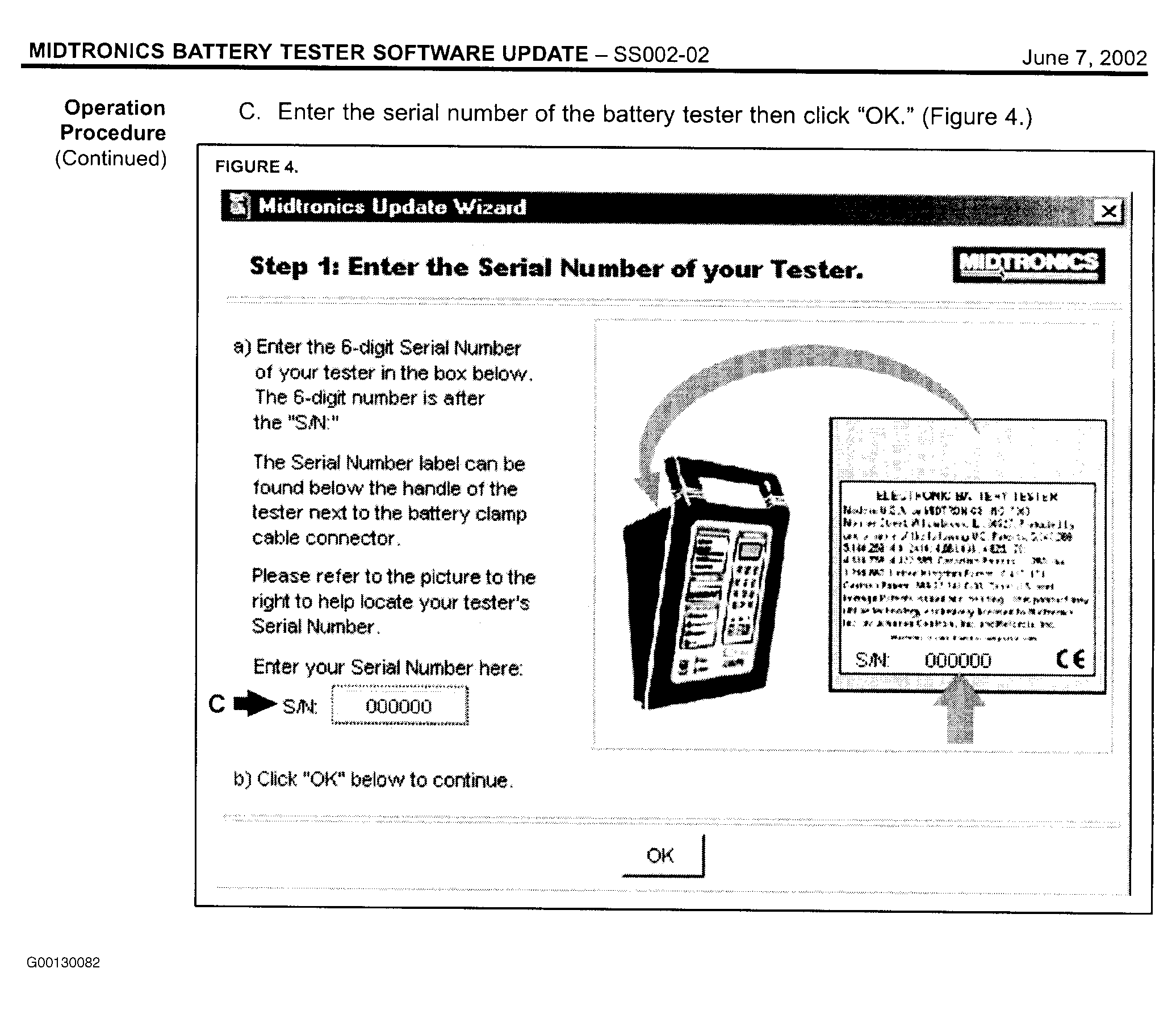

Fig 5: Page 5 of Bulletin
G00130082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

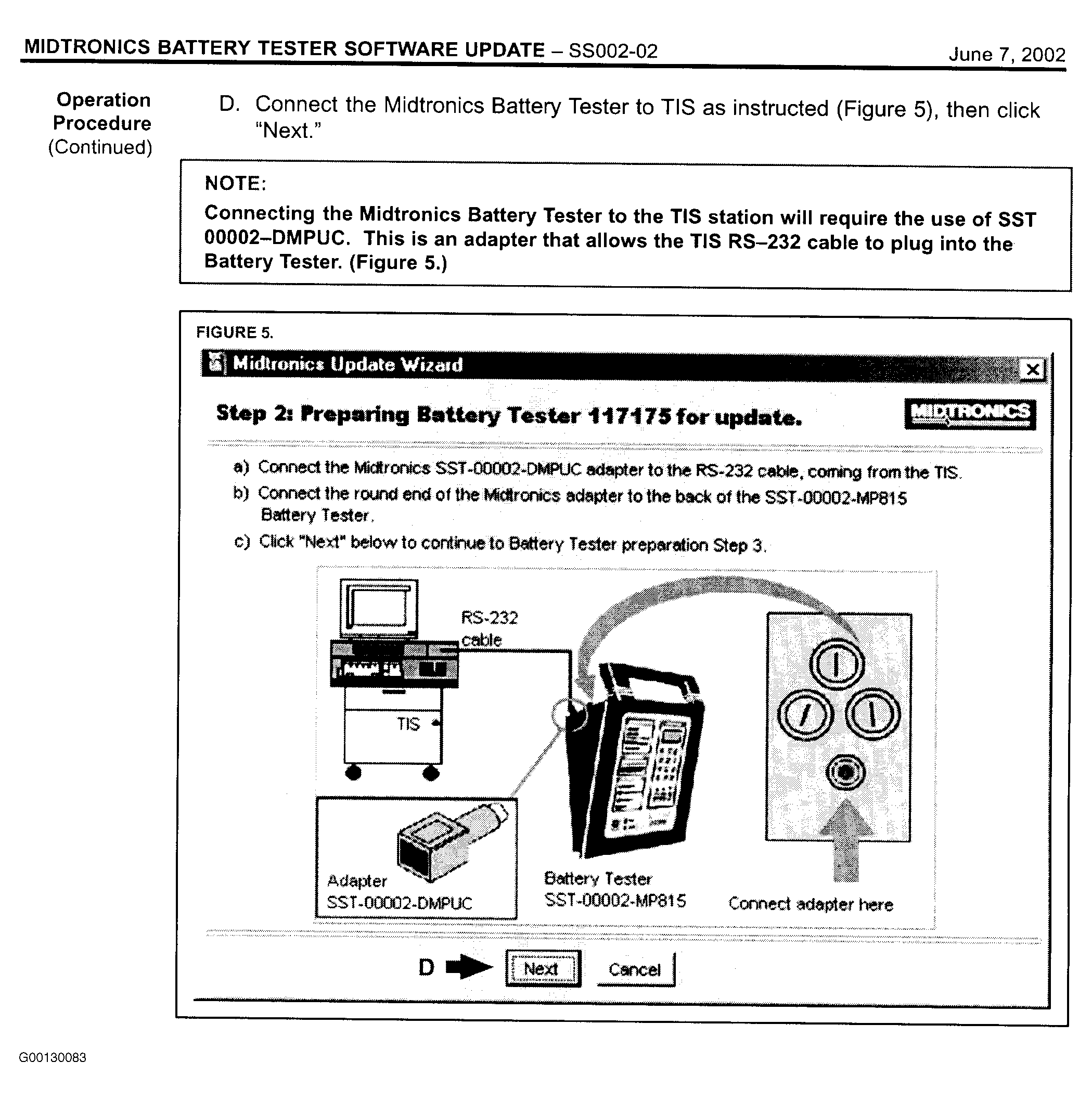

Fig 6: Page 6 of Bulletin
G00130083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

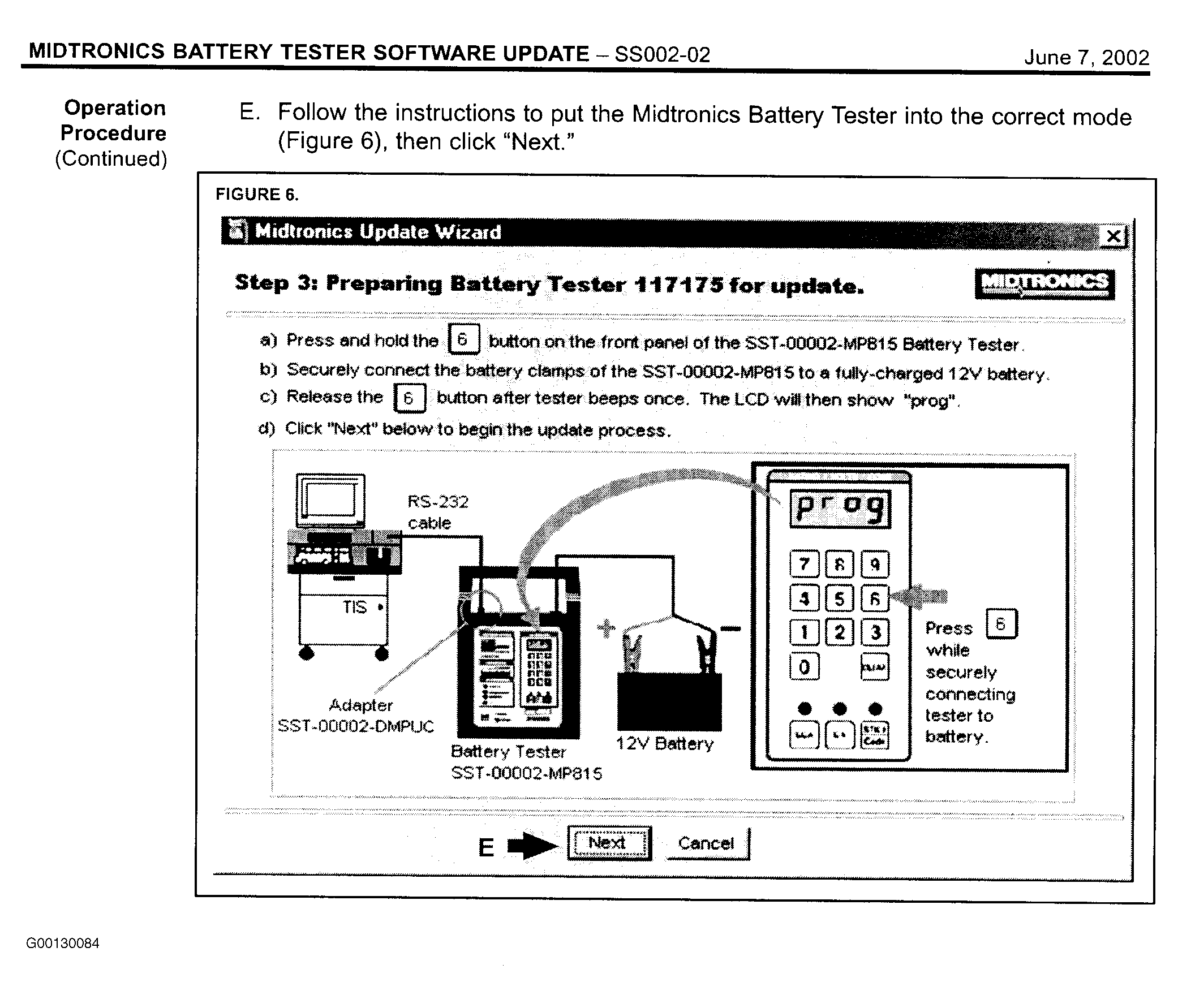

Fig 7: Page 7 of Bulletin
G00130084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

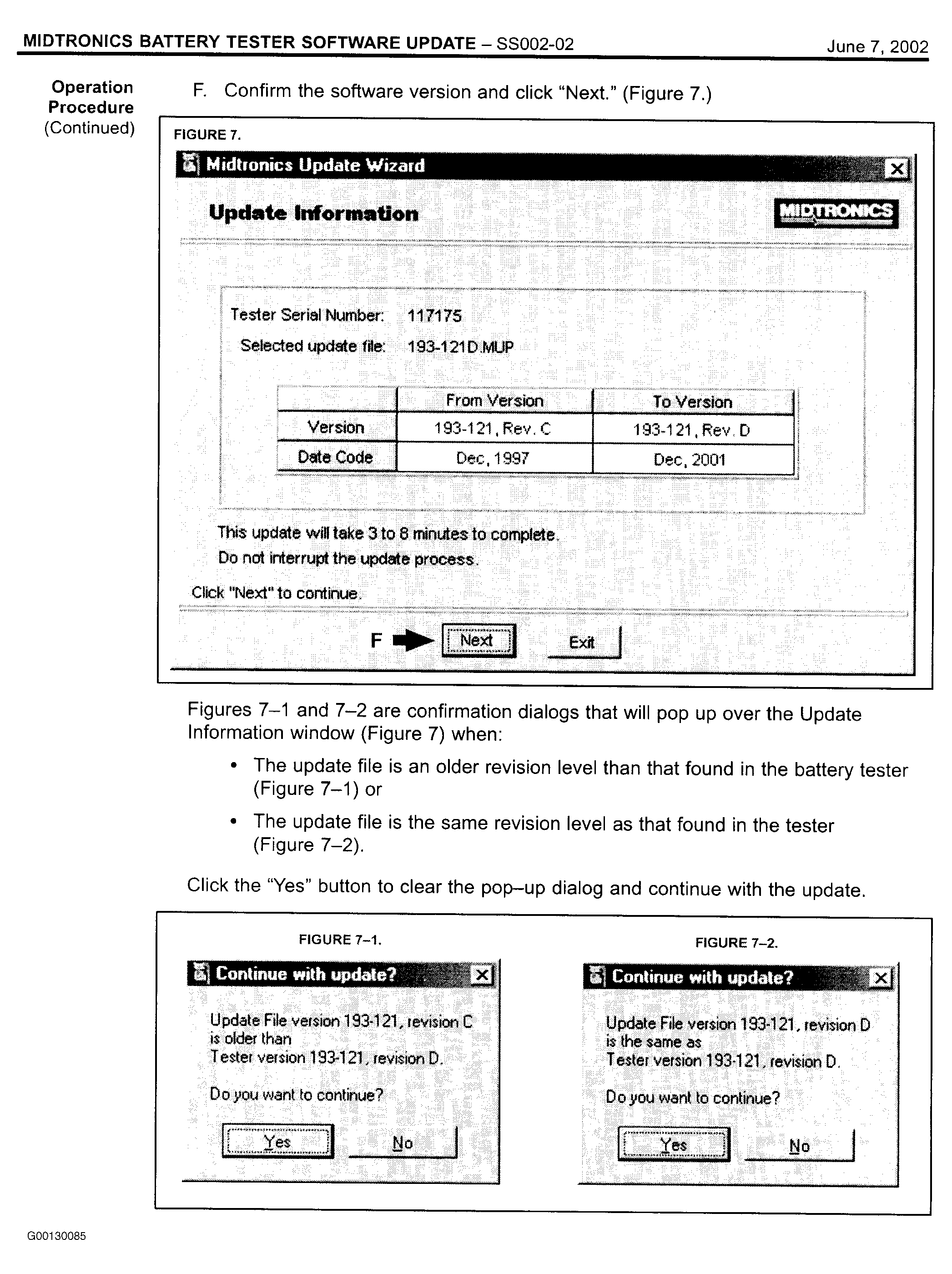

Fig 8: Page 8 of Bulletin
G00130085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

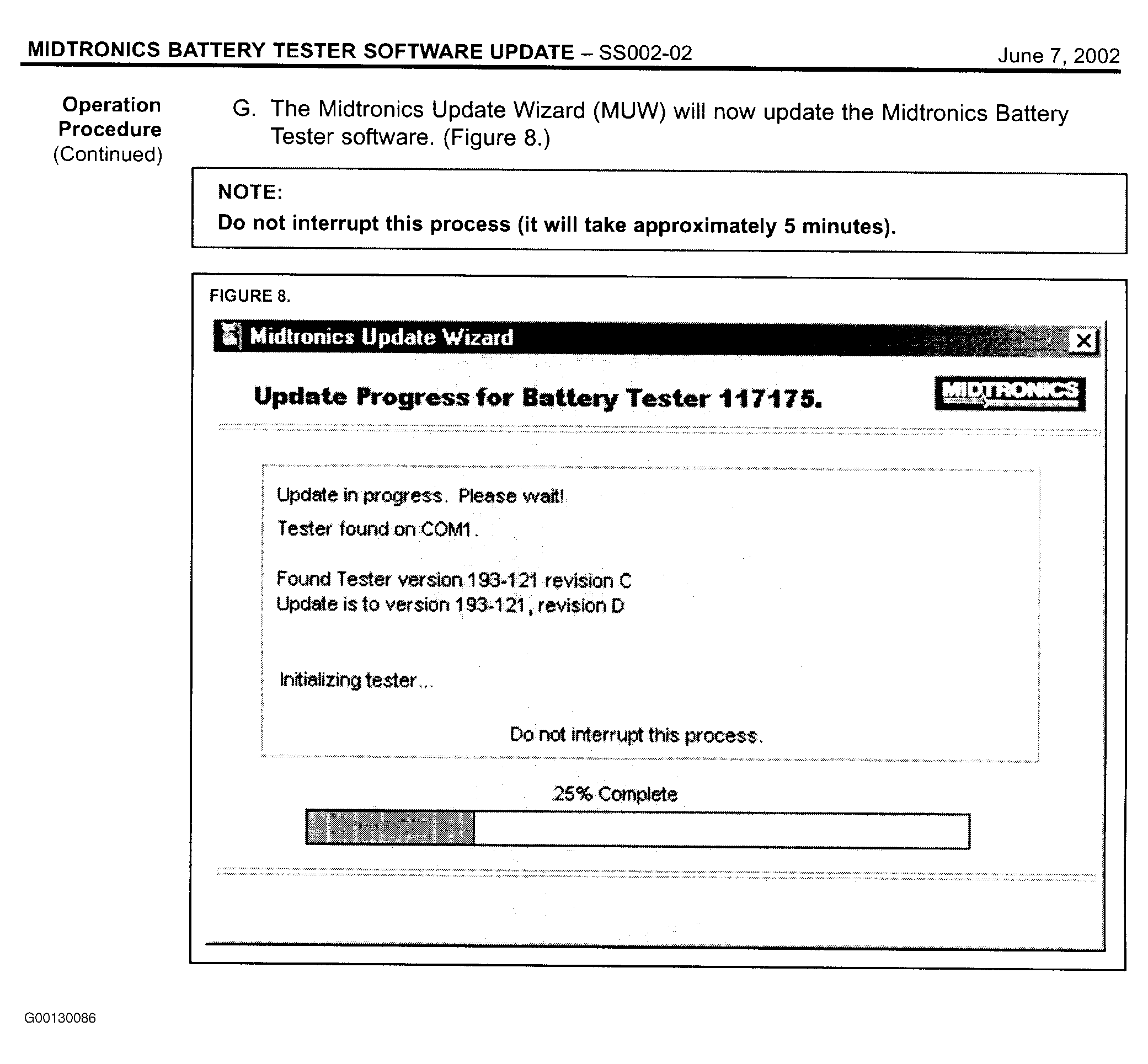

Fig 9: Page 9 of Bulletin
G00130086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

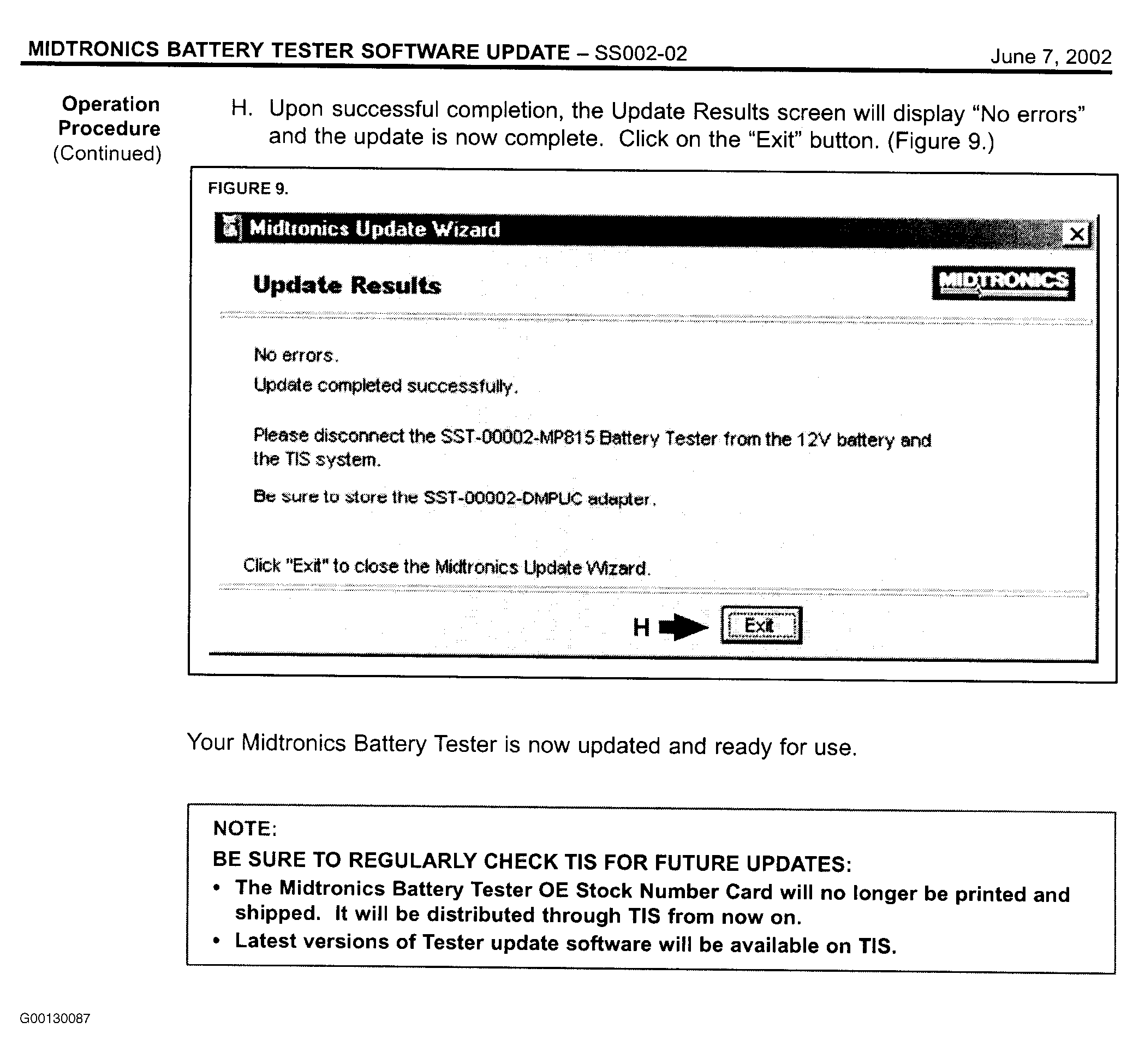

Fig 10: Page 10 of Bulletin
G00130087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
