Readiness Monitor Drive Patterns (EG002-02)
Publication date: 2002-02-08Reference number: EG002-02

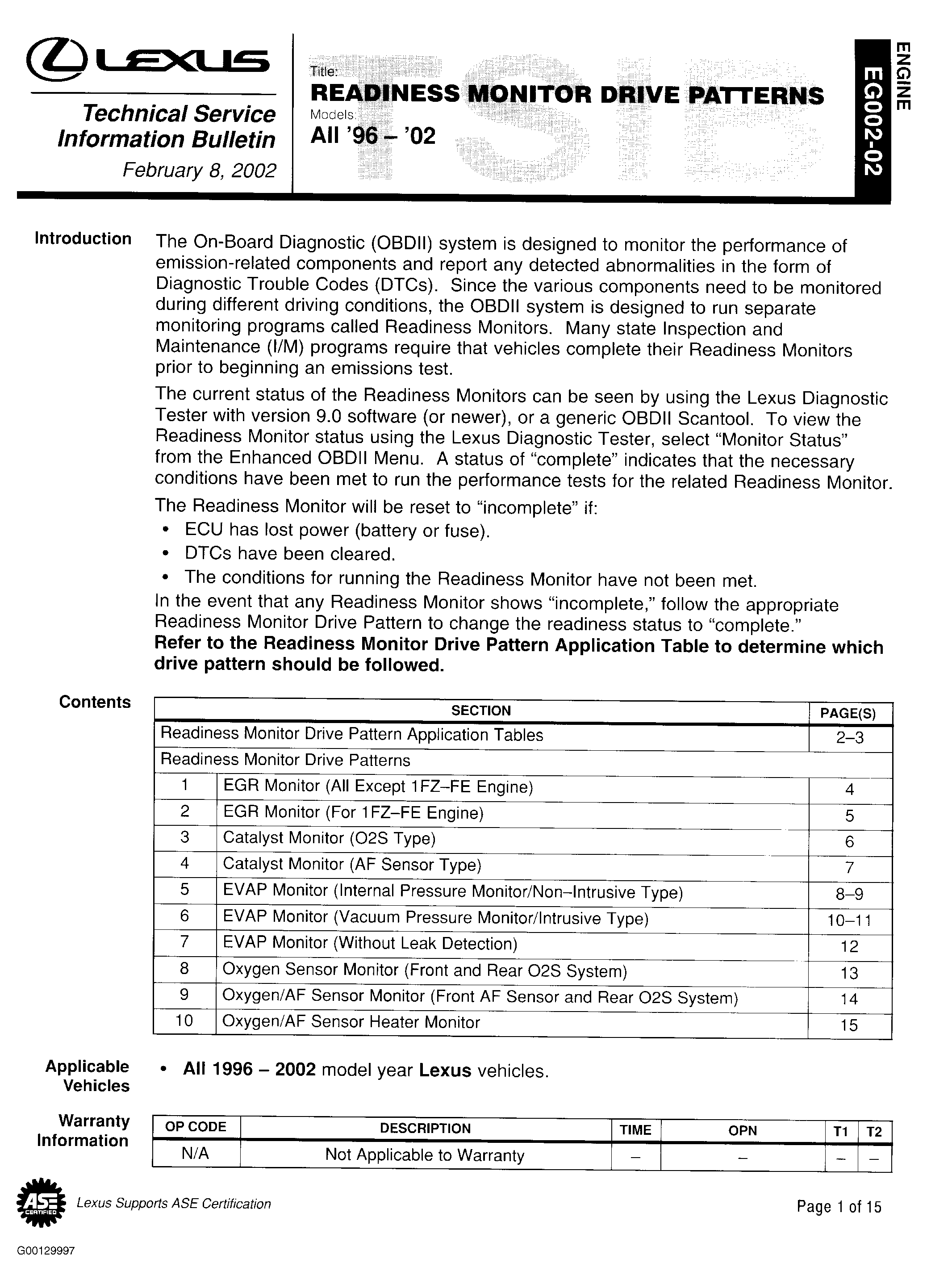

READINESS MONITOR DRIVE PATTERNS
TECHNICAL SERVICE BULLETIN
Reference Number(s): EG002-02, Date of Issue:
February 8, 2002
| LEXUS: | 1996-2002, All Models |
| GROUP: | Engine |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
DESCRIPTION
READINESS MONITOR DRIVE PATTERNS
The On-Board Diagnostic (OBDII) system is designed to monitor the performance of emission-related components and report any detected abnormalities in the form of Diagnostic Trouble Codes (DTCs). Since the various components need to be monitored during different driving conditions, the OBDII system is designed to run separate monitoring programs called Readiness Monitors. Many state Inspection and Maintenance (I/M) programs require that vehicles complete their Readiness Monitors prior to beginning an emissions test.
