Control Shaft Lever

Loosen nut on control rod. See Fig 1. Push control rod fully rearward. Return transmission control shaft 2 notches to Neutral position. Place gear selector lever in Neutral. Hold selector lever lightly toward Reverse position, and tighten control rod nut to 115 INCH lbs. (13 N.m). Start engine and ensure adjustment is correct.

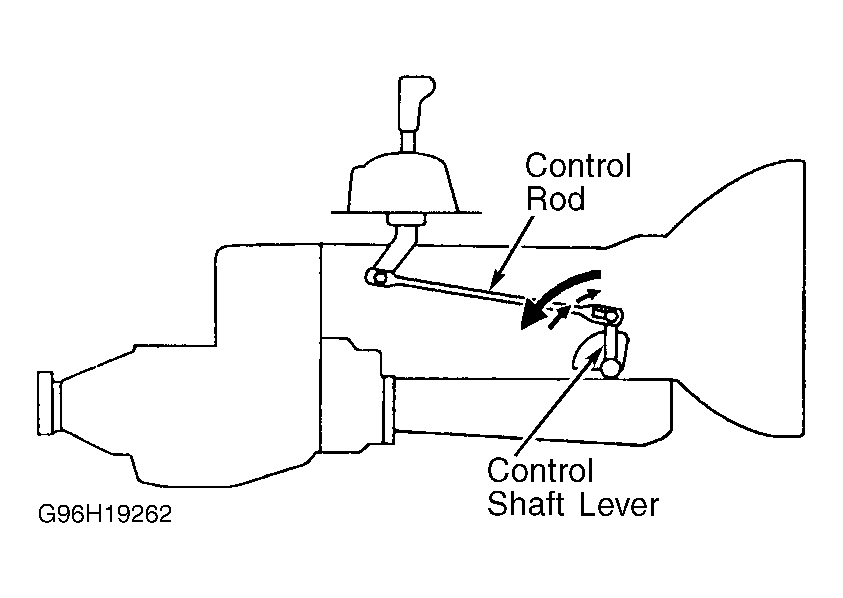

Fig 1: Adjusting Control Shaft Lever
G96H19262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
