Park/Neutral Position Switch

If vehicle starts in positions other than Neutral and Park, adjust PNP switch. Loosen PNP switch bolt and set shift lever in "N" position. Align groove and neutral base line on PNP switch. See Fig 1. Hold switch in position and tighten bolt to 48 INCH lbs. (5.4 N.m) on ES300, RX300 and SC300, or 115 INCH lbs. (13 N.m) on all other models.

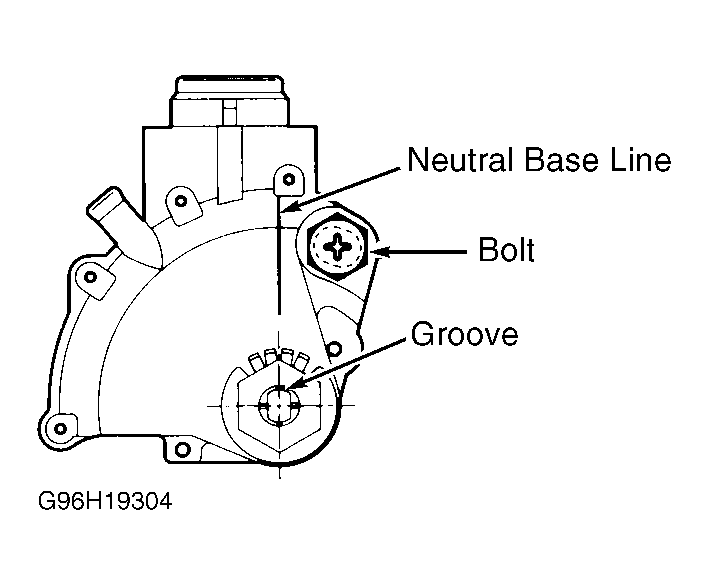

Fig 1: Adjusting Park/Neutral Position Switch
G96H19304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
