Horn Circuit
Body No.1 Control System / Horn CircuitCIRCUIT DESCRIPTION
The horn is connected to the Body ECU No.1 and activated by the Body ECU No.1 during warning of the theft deterrent system.

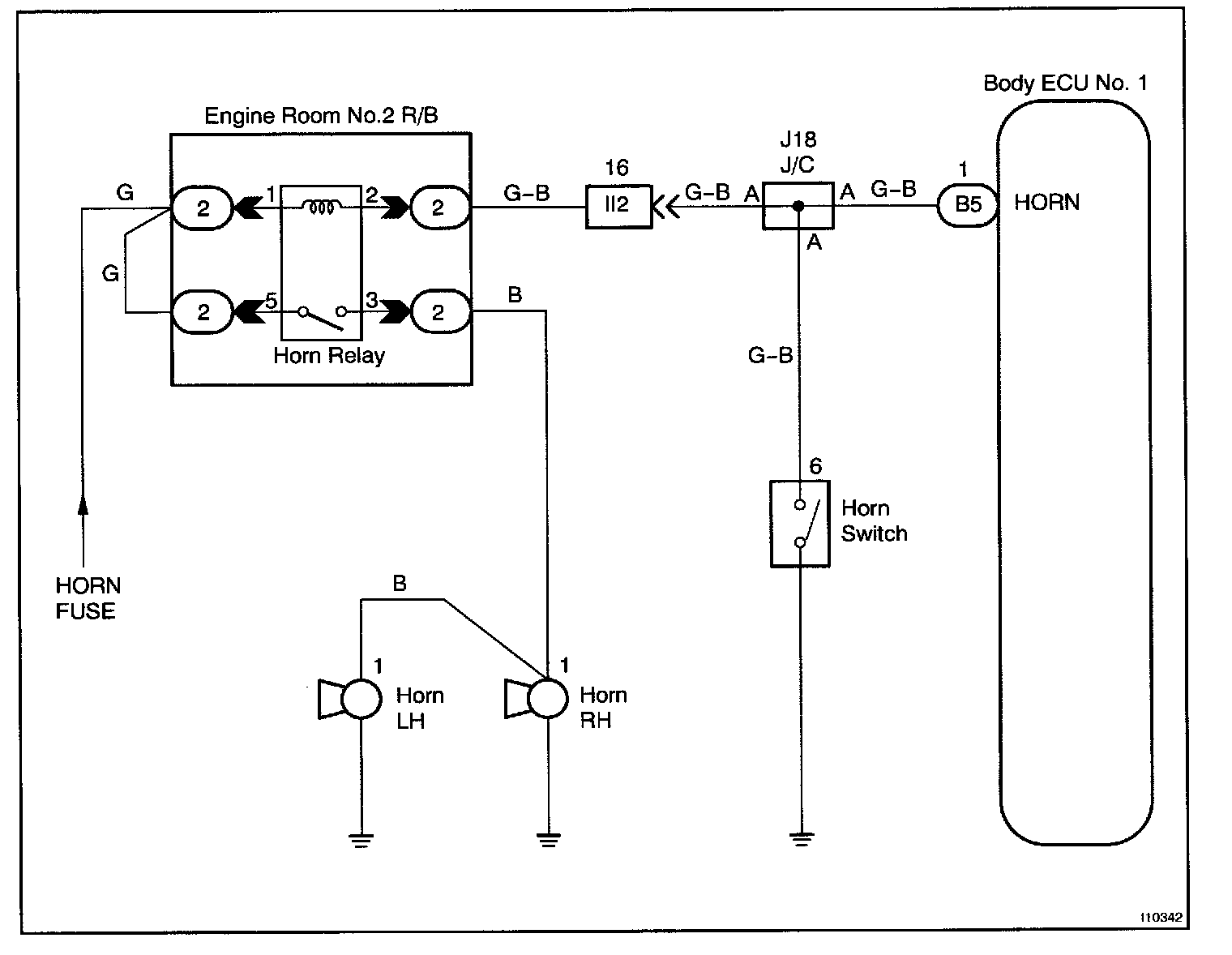

Wiring Diagram:

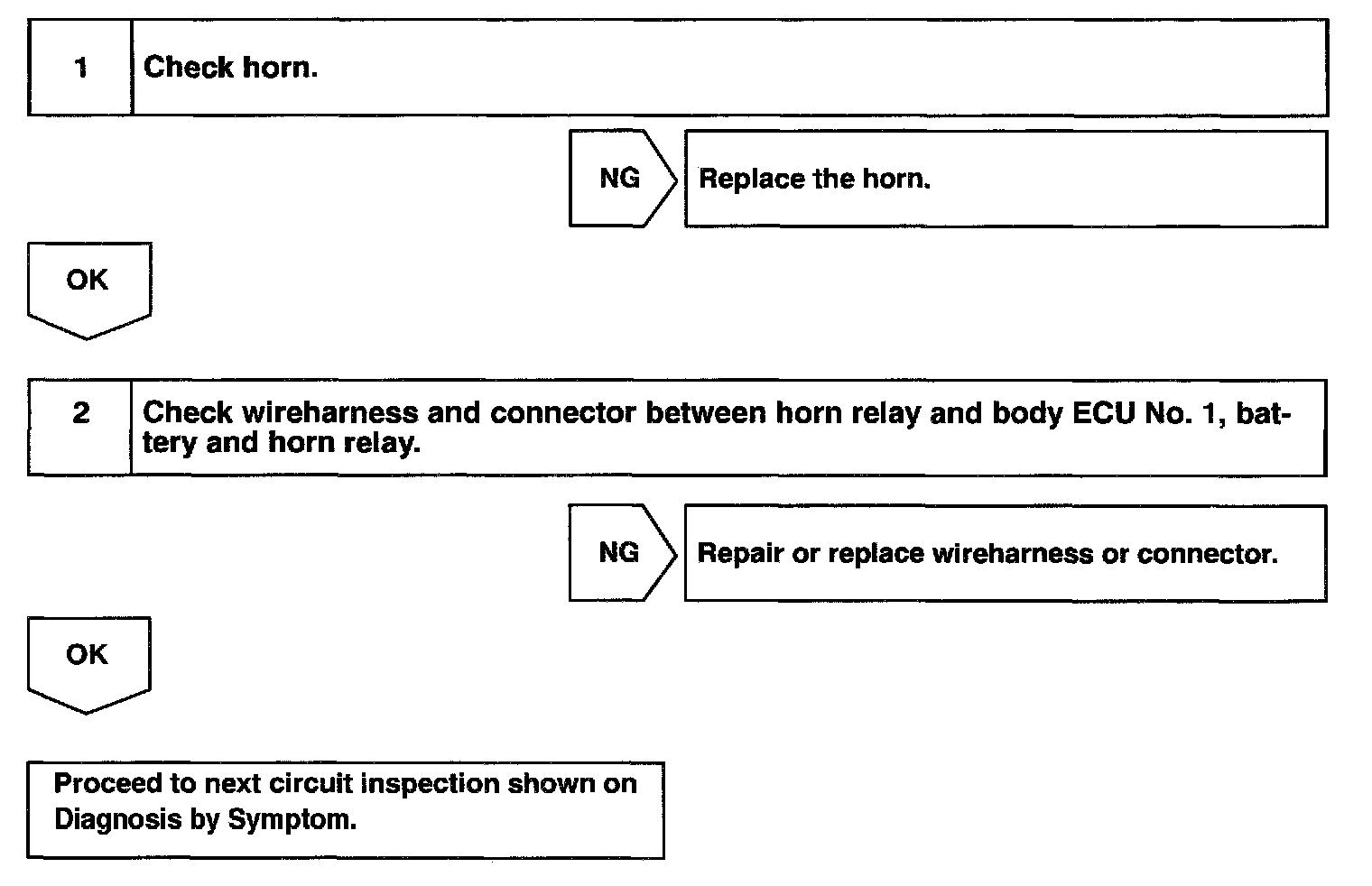

Steps 1 - 2:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The horn is connected to the Body ECU No.1 and activated by the Body ECU No.1 during warning of the theft deterrent system.
INSPECTION PROCEDURE
