Luggage Courtesy Switch Circuit

Body No.1 Control System / Luggage Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The luggage courtesy switch goes on when luggage compartment door is opened and goes off when luggage compartment door is closed.

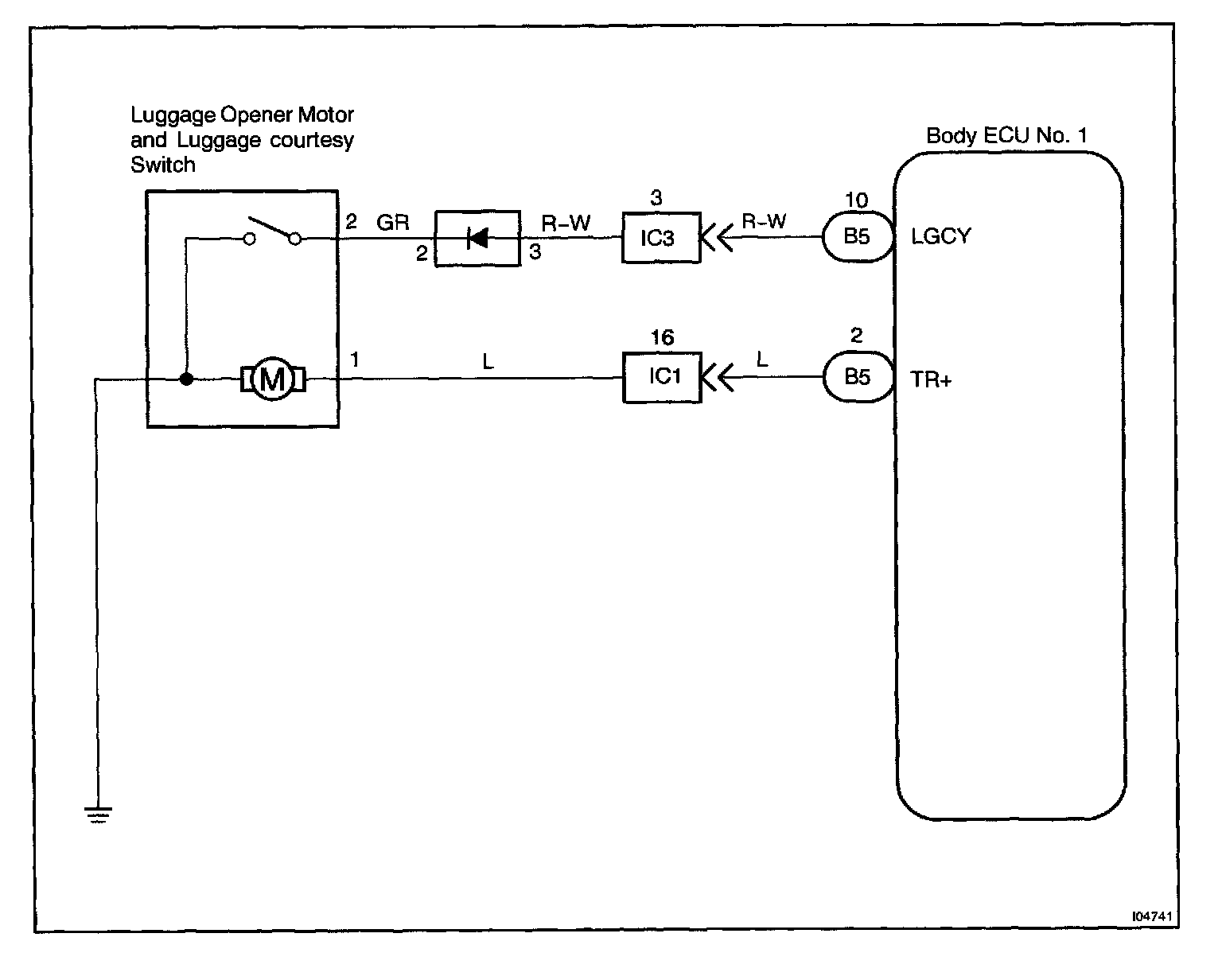

Wiring Diagram:

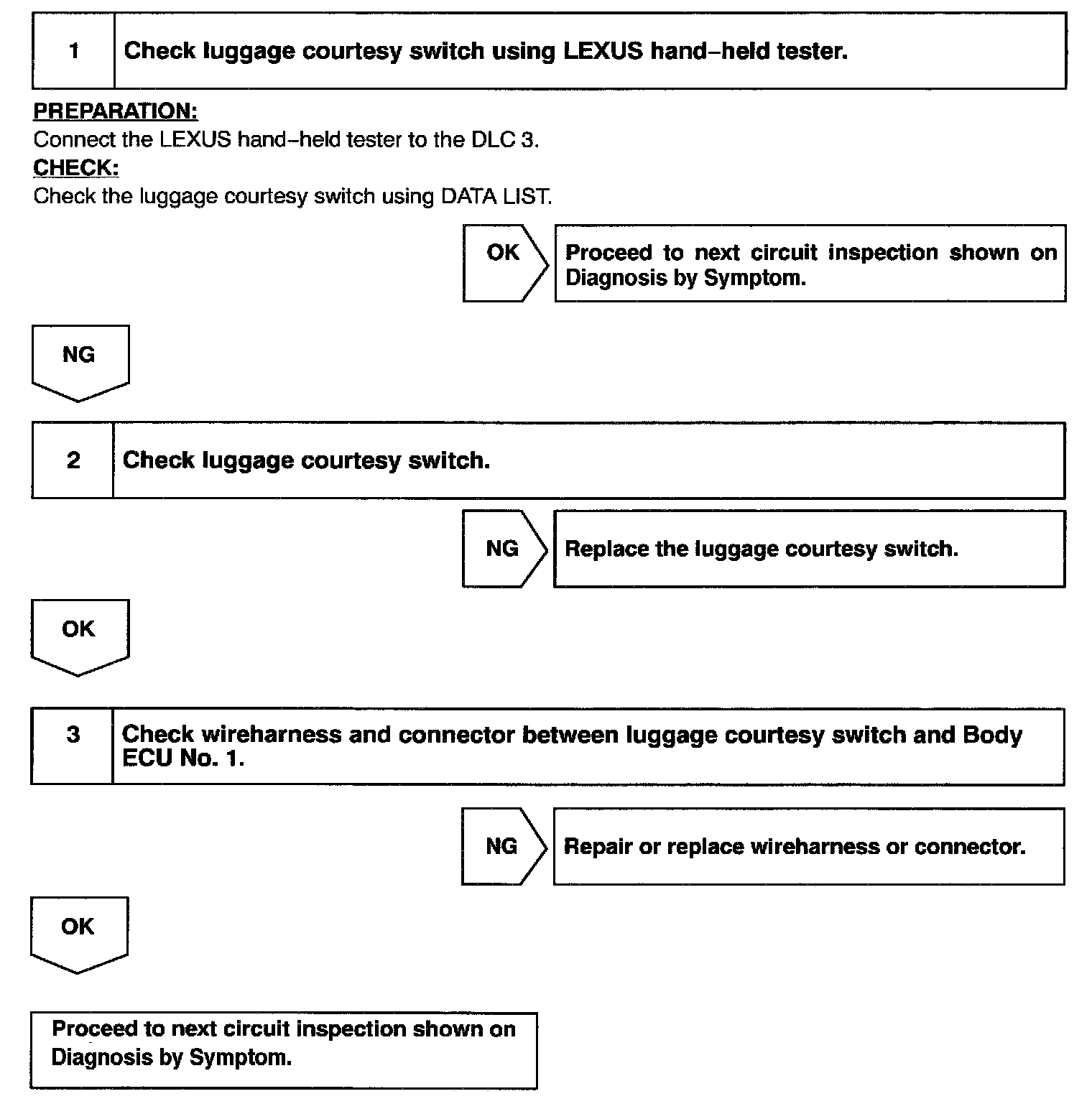

Steps 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
