Mirror Switch Circuit

Body No.2 Control System / Mirror Switch Circuit

CIRCUIT DESCRIPTION
This circuit detects the conditions of the mirror selection switch and the mirror position switch.

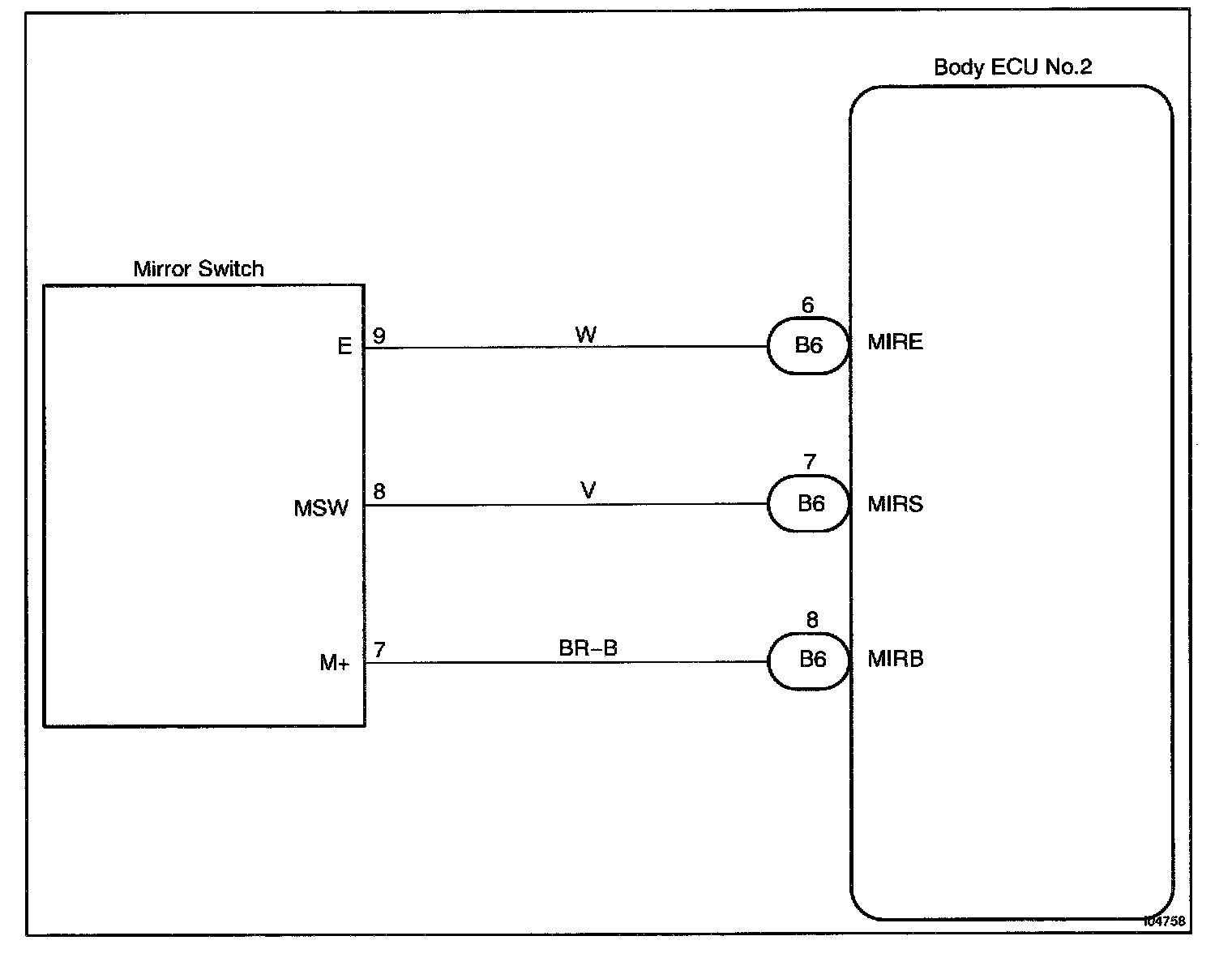

Wiring Diagram:

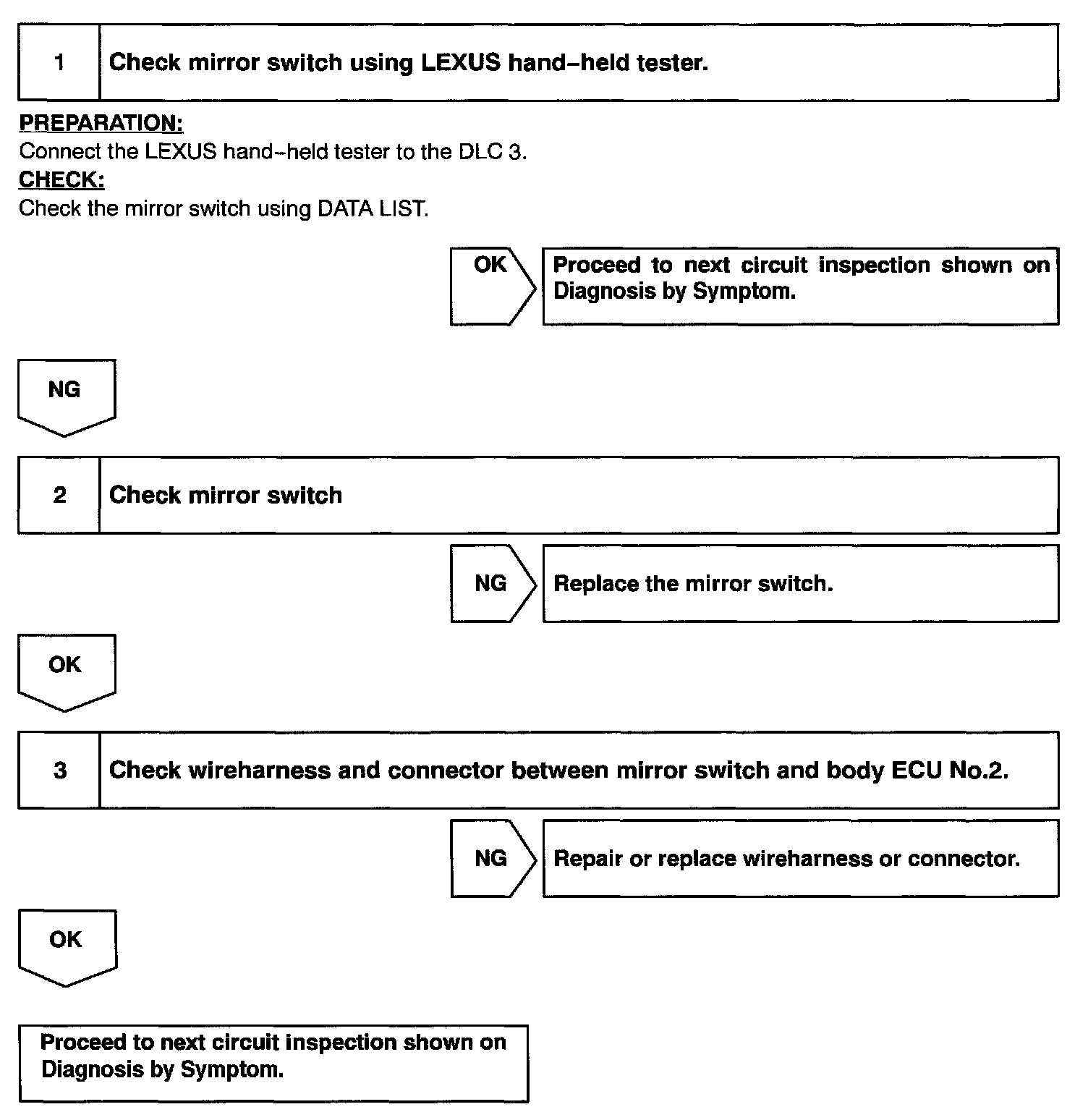

Steps 1 - 3:




INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
