PWS Circuit

Body No.1 Control System / PWS Circuit

CIRCUIT DESCRIPTION
This circuit is the power source of the master switch for the driver's door and the door lock switch for the passenger's doors.

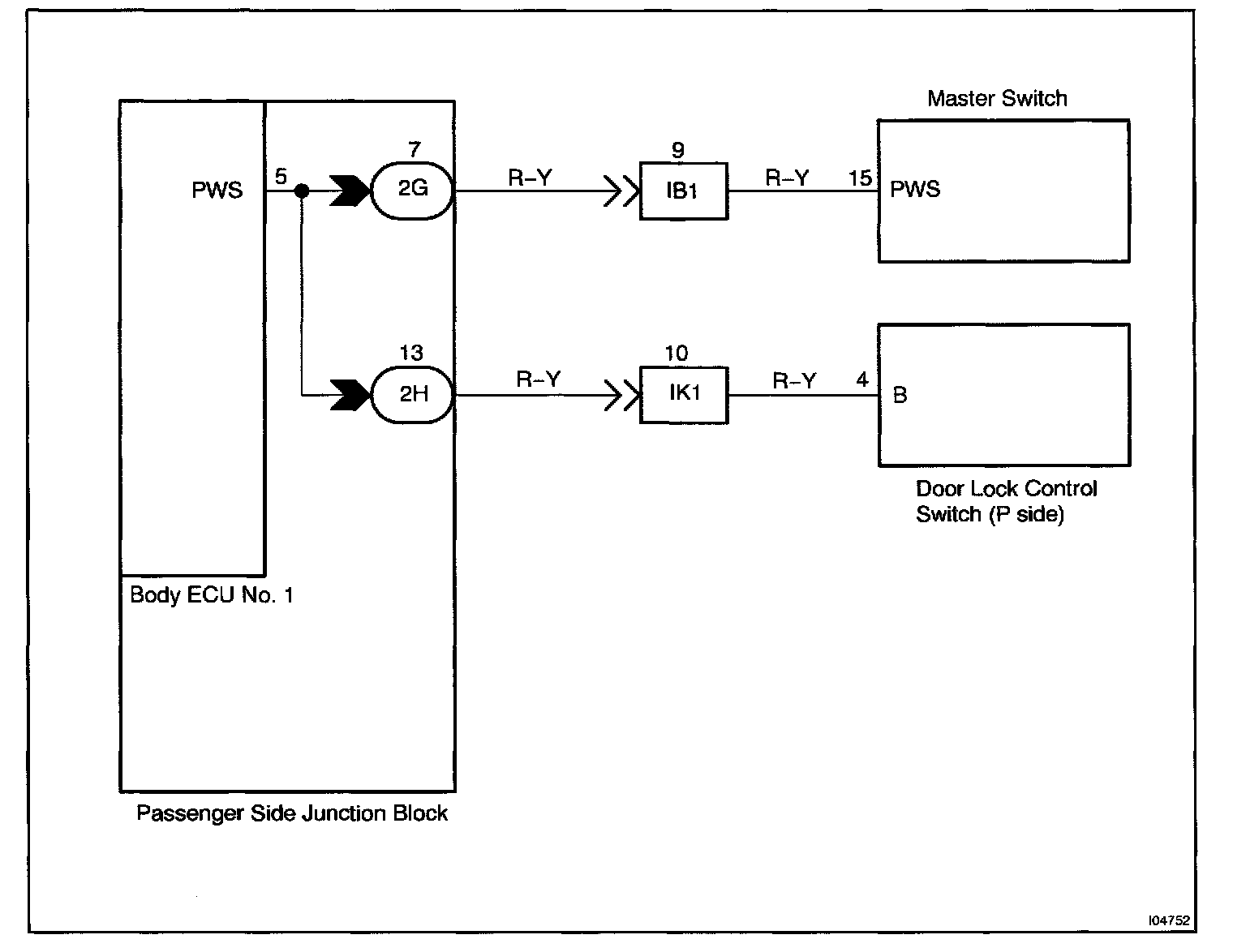

Wiring Diagram:

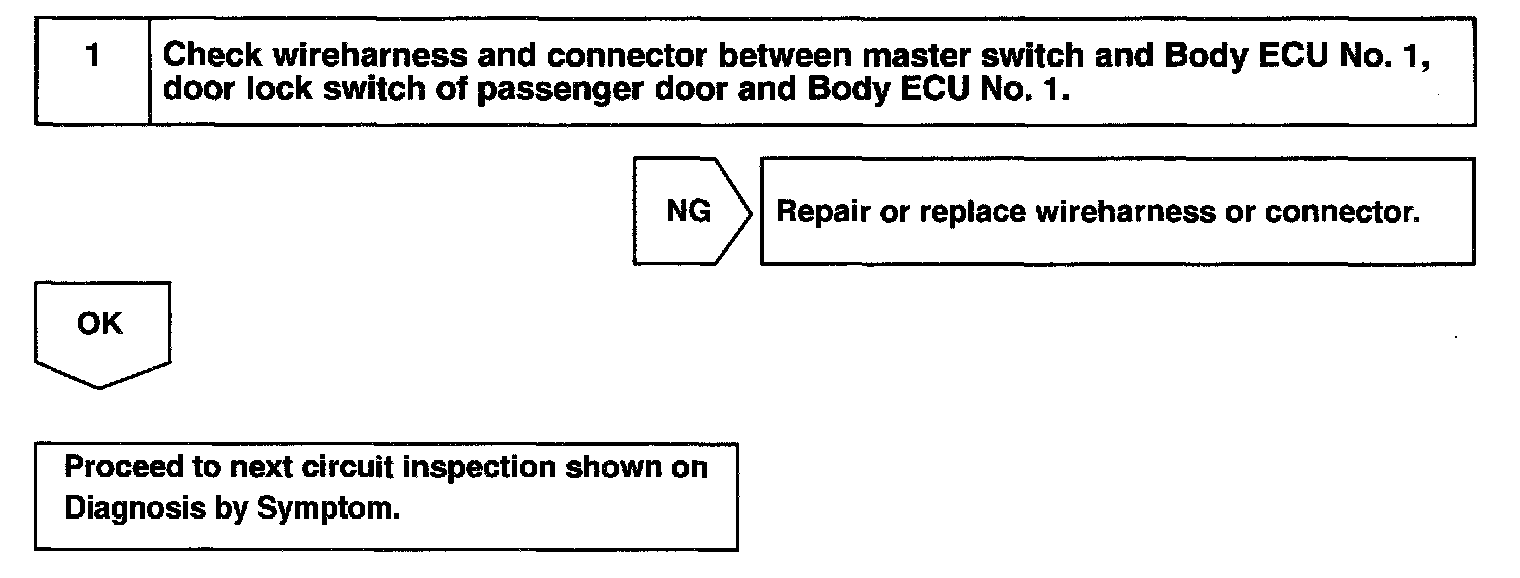

Step 1:

INSPECTION PROCEDURE
