Pattern Select Switch Circuit

Body No.1 Control System / Pattern Select Switch Circuit

CIRCUIT DESCRIPTION
Body ECU No.1 detects the state of pattern select switch.

Wiring Diagram:

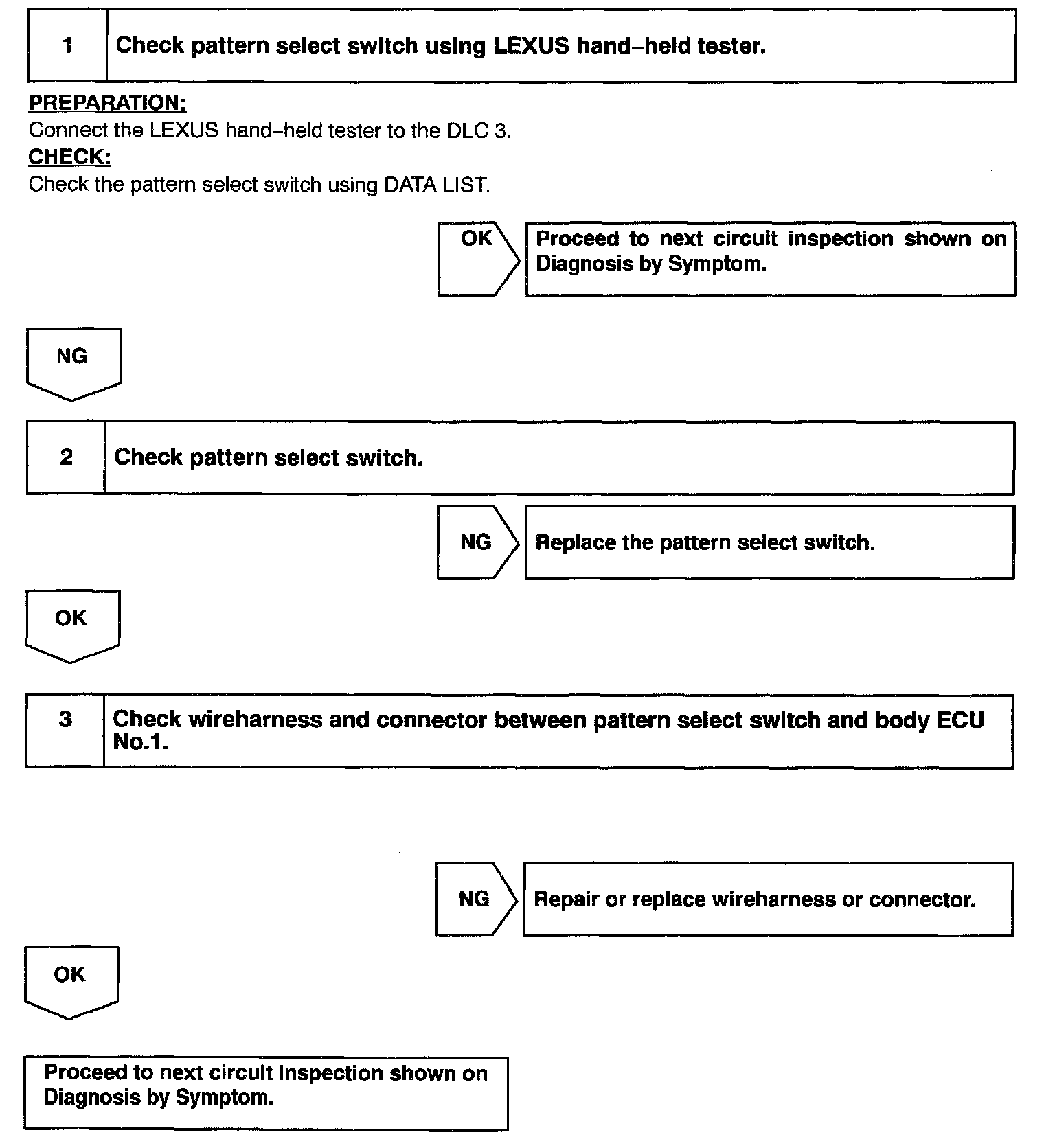

Steps 1 - 3:




INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
