Rear Defogger Relay Circuit

Body No.1 Control System / Rear Defogger Relay Circuit

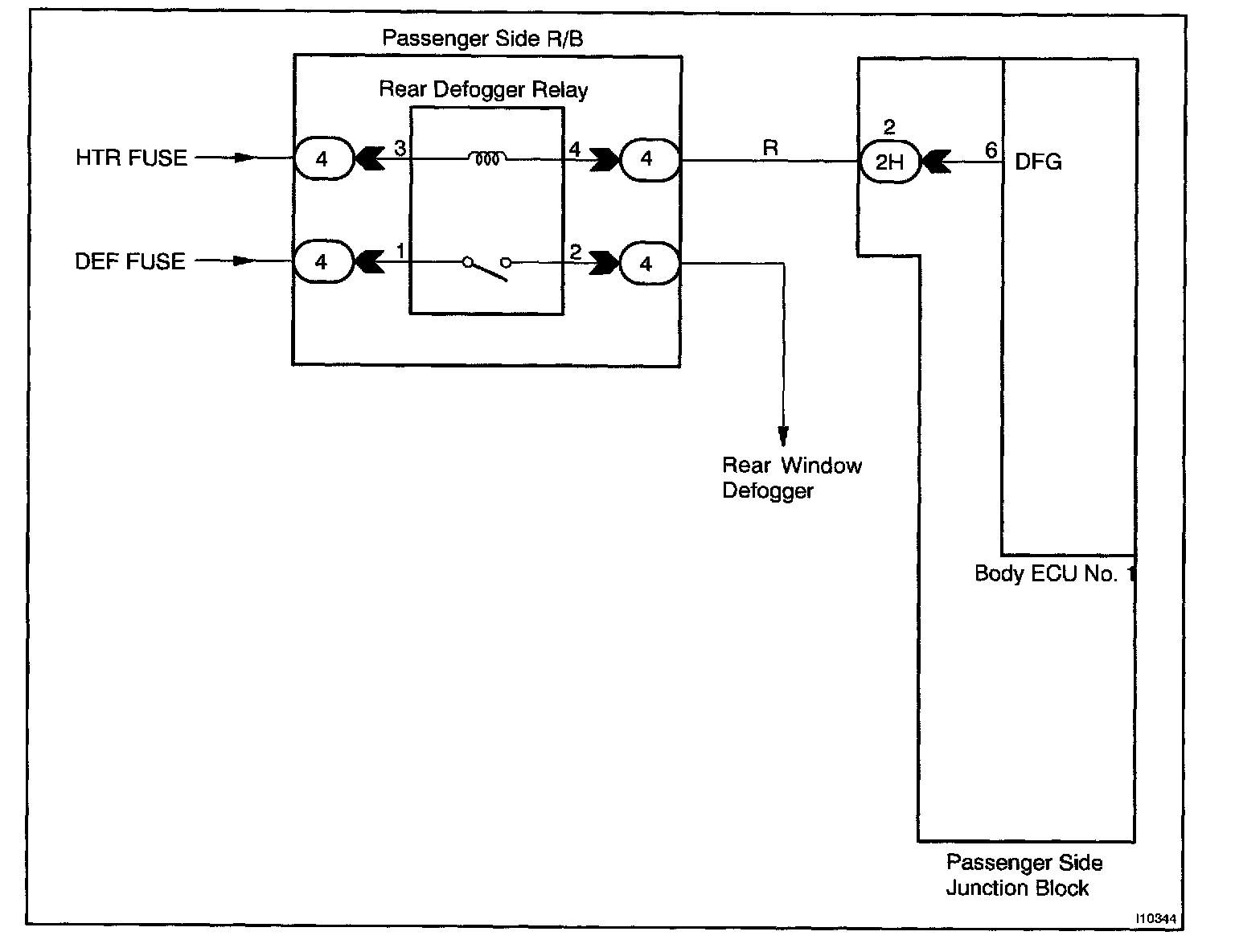

Wiring Diagram:

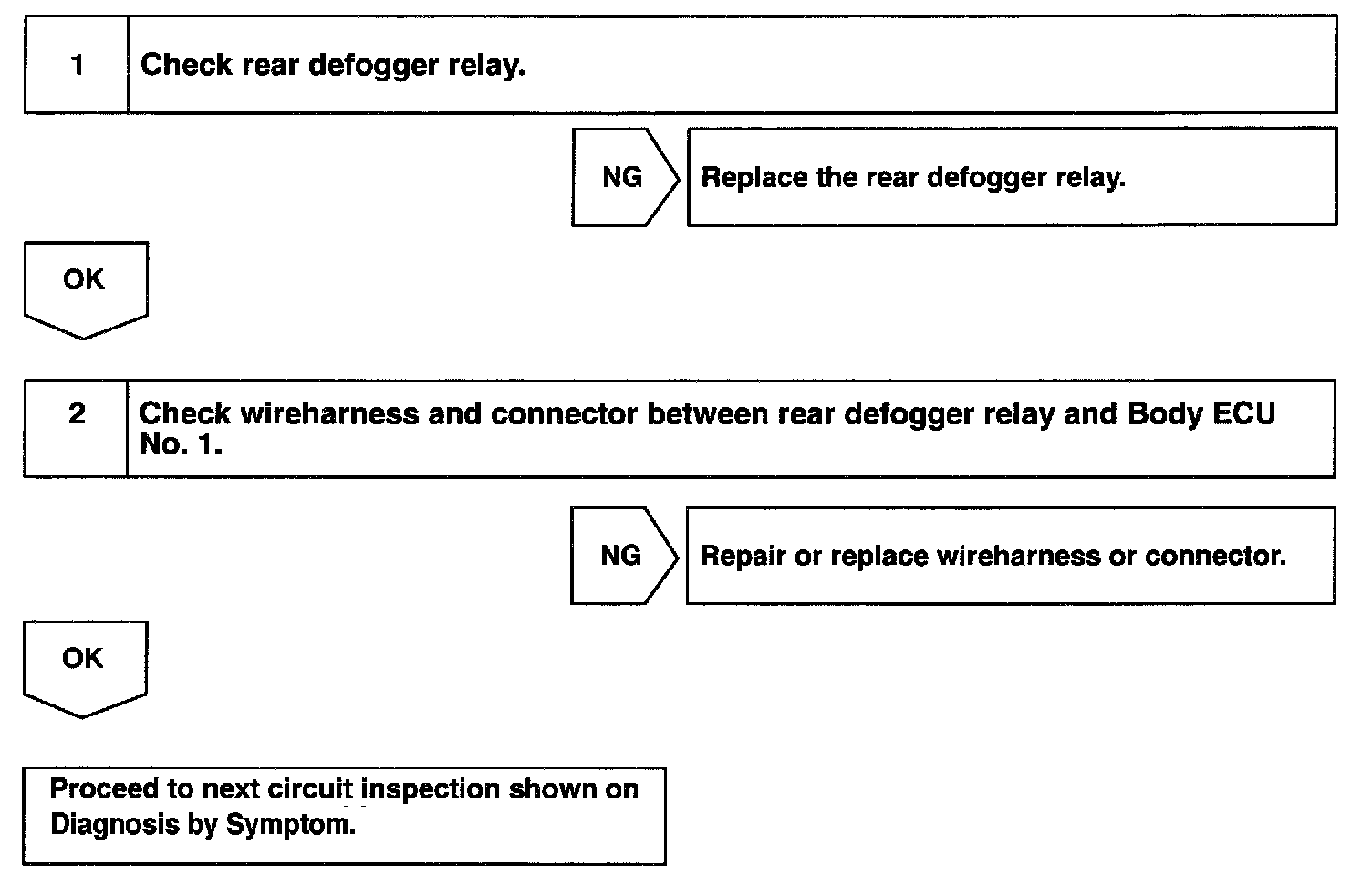

Steps 1 - 2:




INSPECTION PROCEDURE
