Stop Light Switch Circuit

Body No.2 Control System / Stop Light Switch Circuit

CIRCUIT DESCRIPTION
The Body ECU No.2 is detecting the condition of the stop light switch.

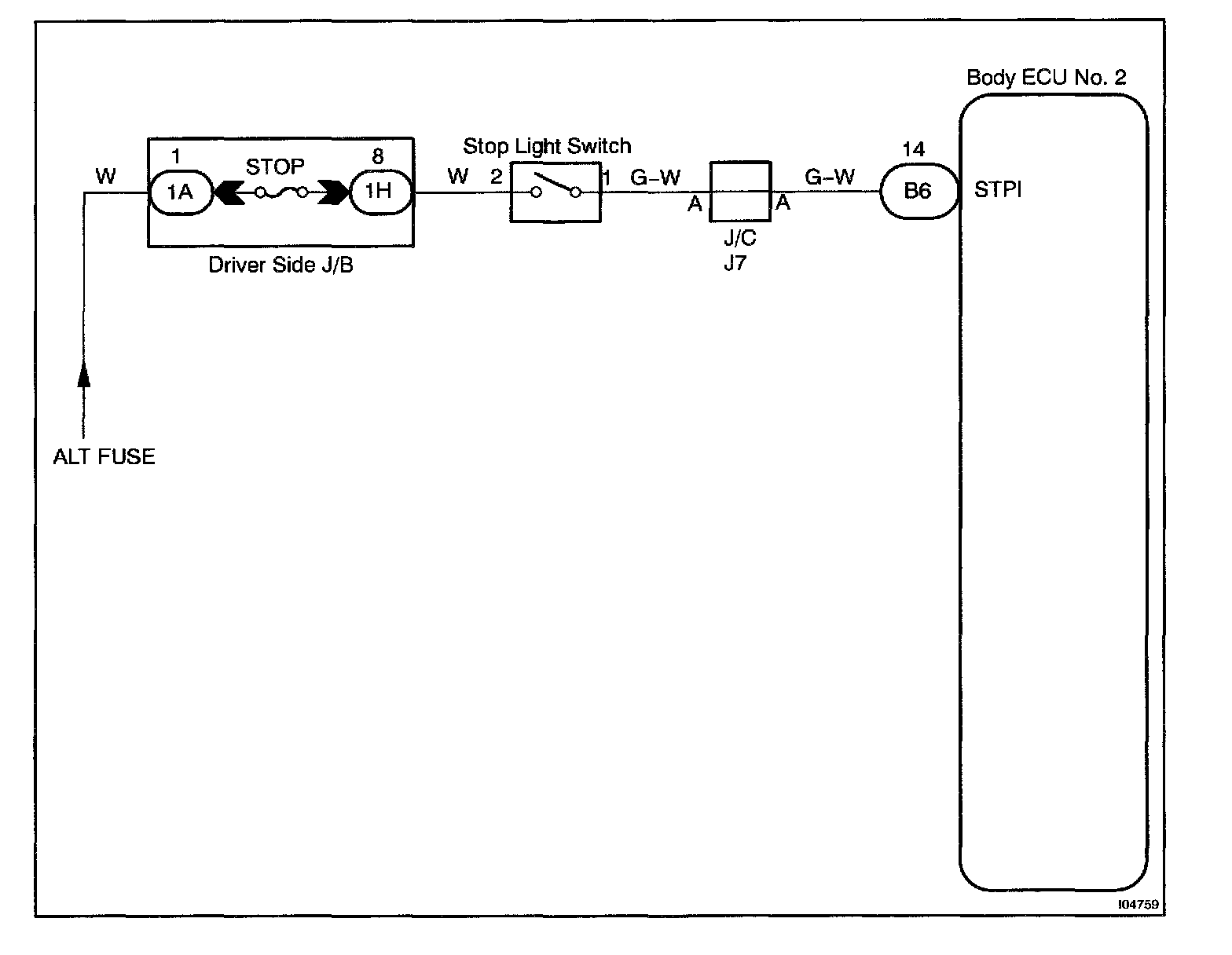

Wiring Diagram:






Steps 1 - 3:

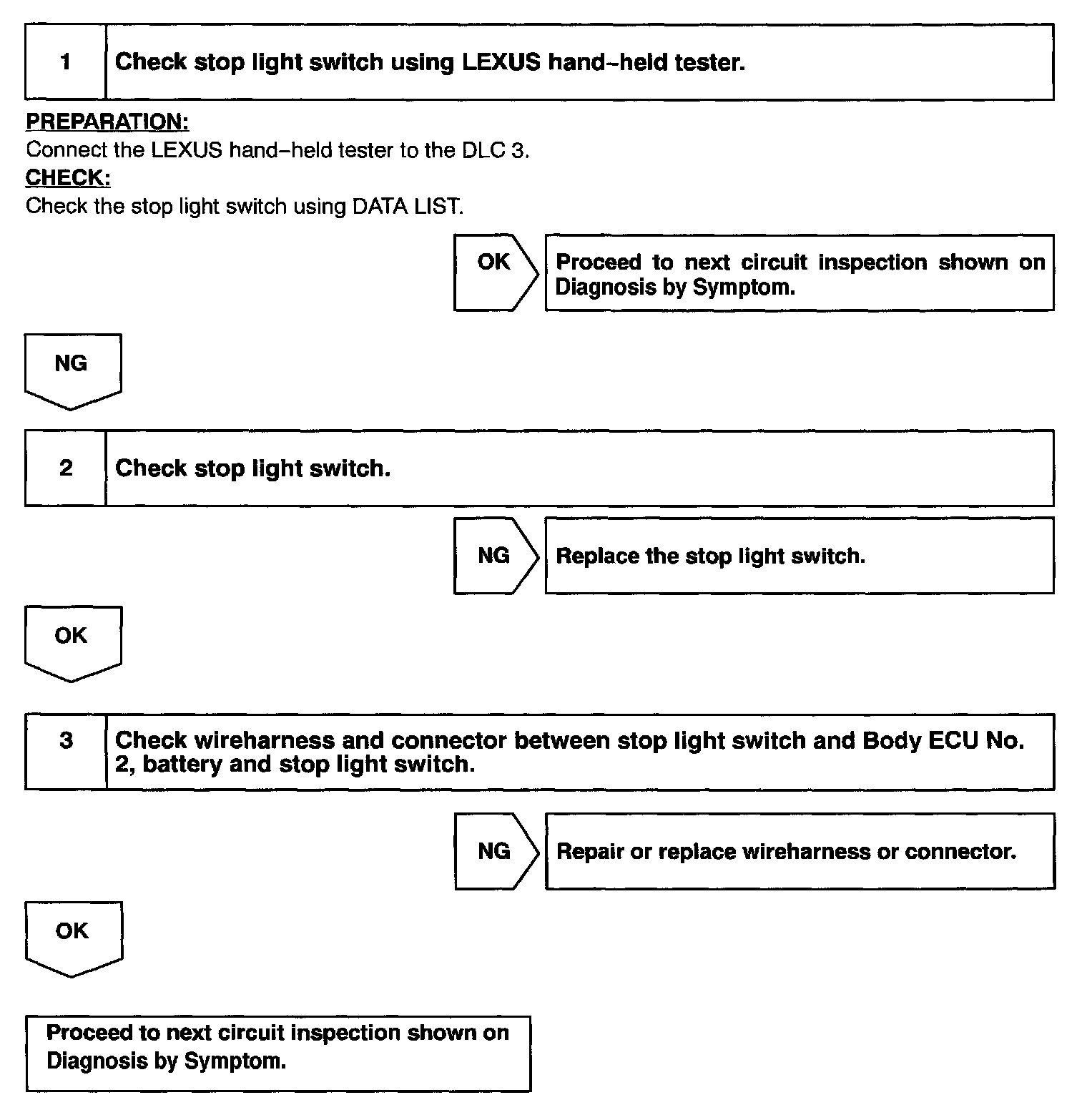

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
