Engine Control Module

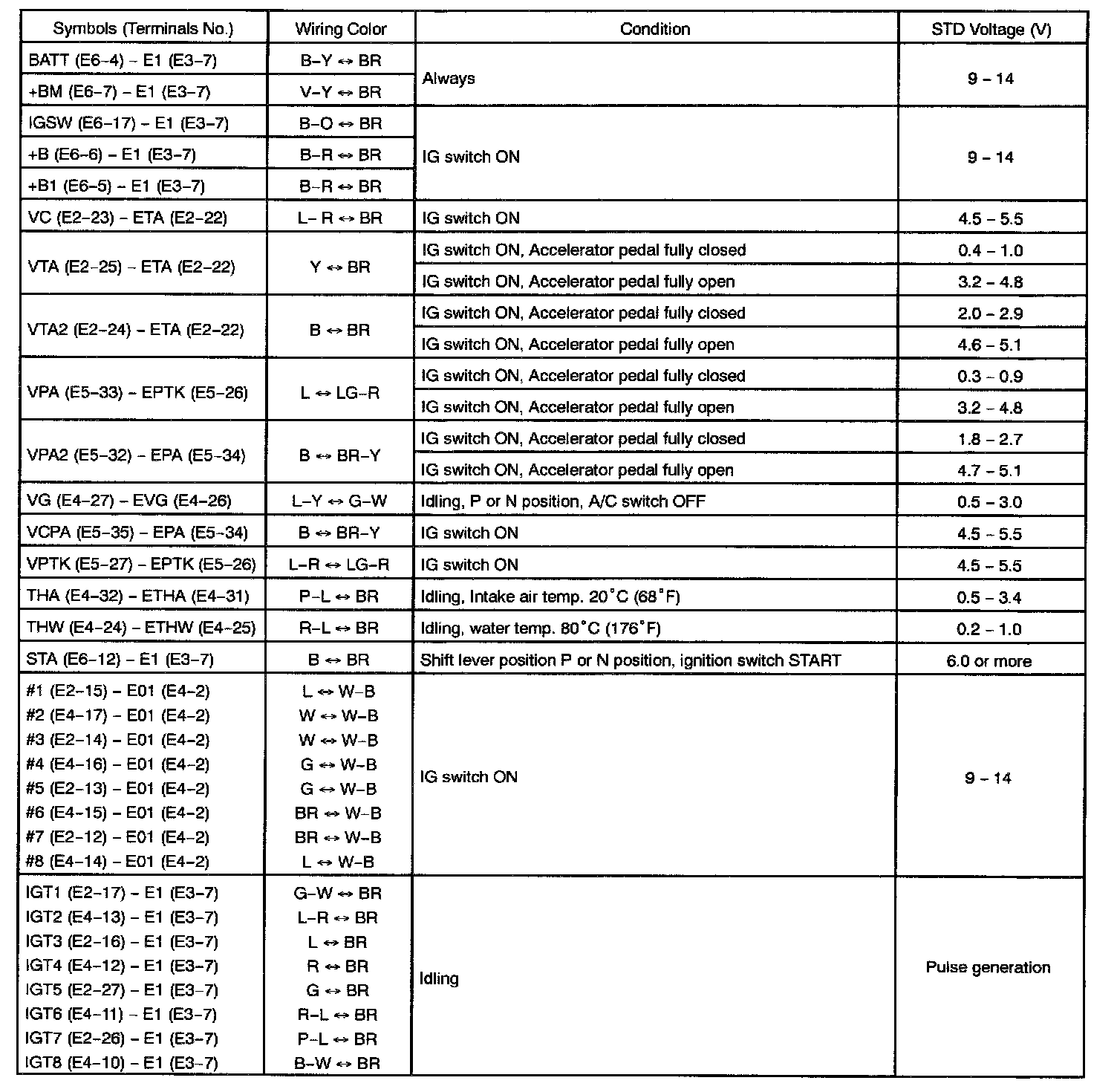

Terminals Of ECM - Connector Pinouts (Part 1):

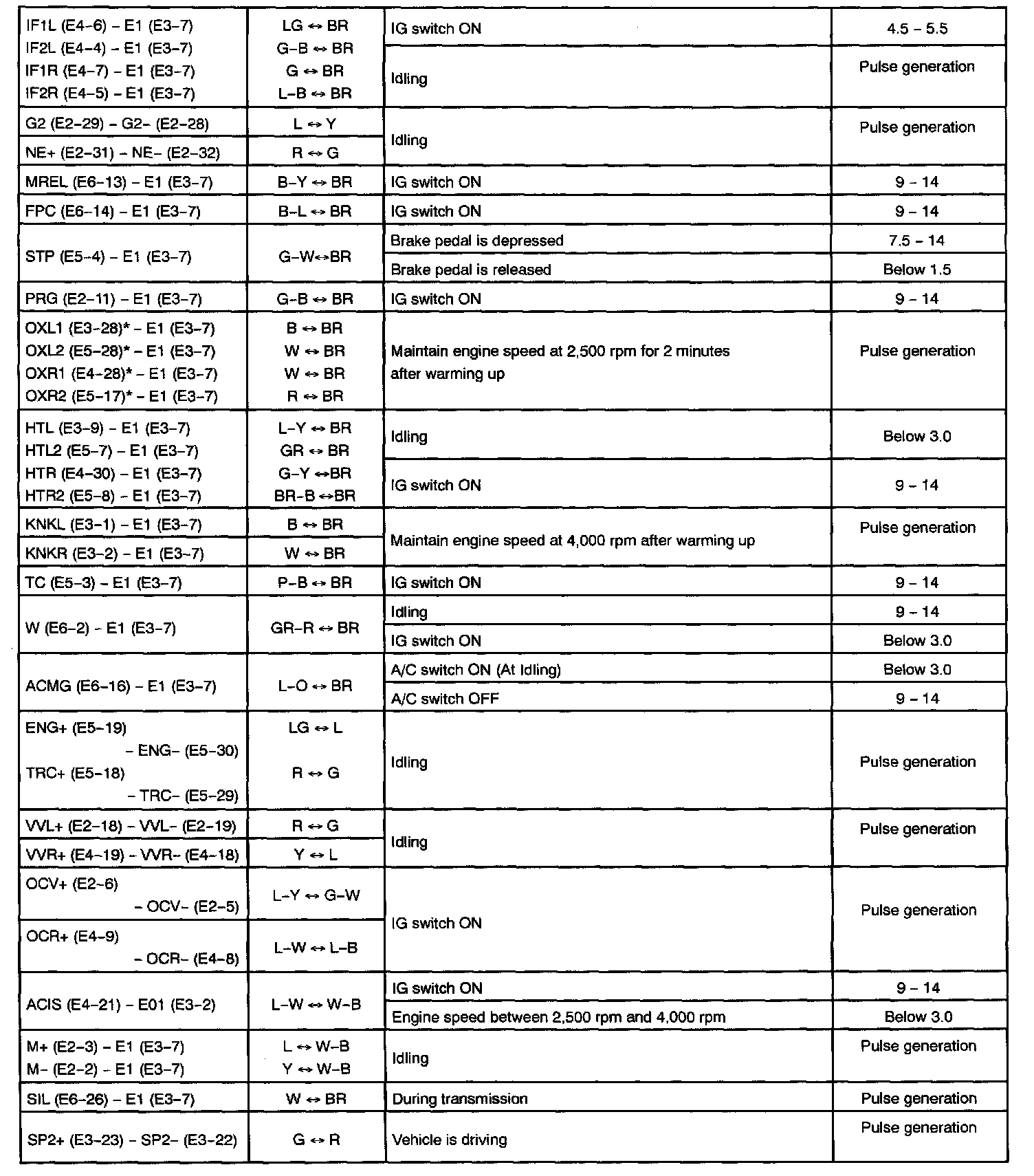

Terminals Of ECM - Connector Pinouts (Part 2):
