Charging Systems: Charging: Generator: Replacement

REPLACE FRONT BEARING.
1. Remove the 4 screws, bearing retainer and bearing.
2. Using SST (SST 09950-60010/09951-00260, 09952-06010) and a press, press out the bearing.

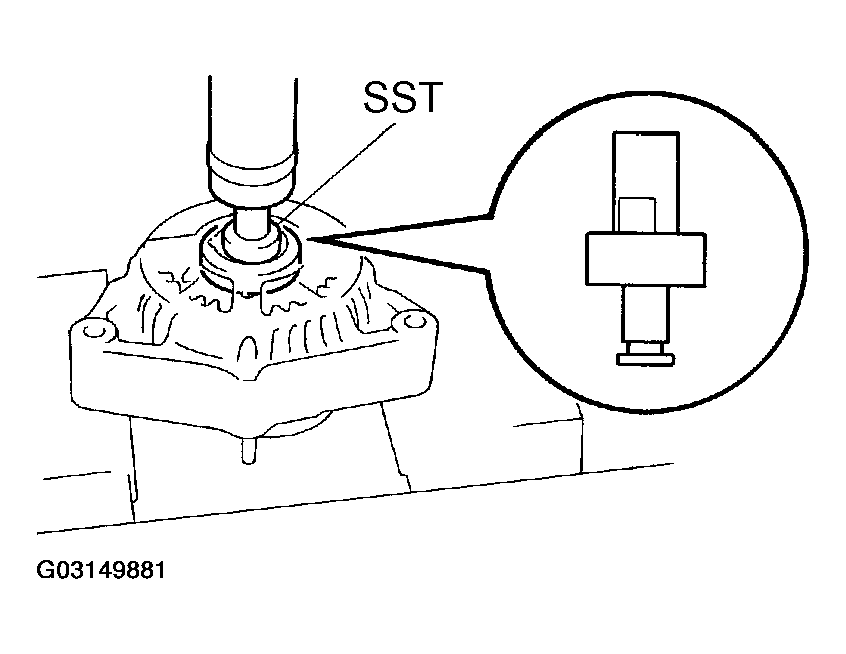

  Fig 1: Removing Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST (SST 09950-60010/09951-00520) and a press, press in a new bearing.
4. Install the bearing retainer with the 4 screws.
  1. Torque: 3.0 N.m (31 kgf.cm 27 in.lbf)

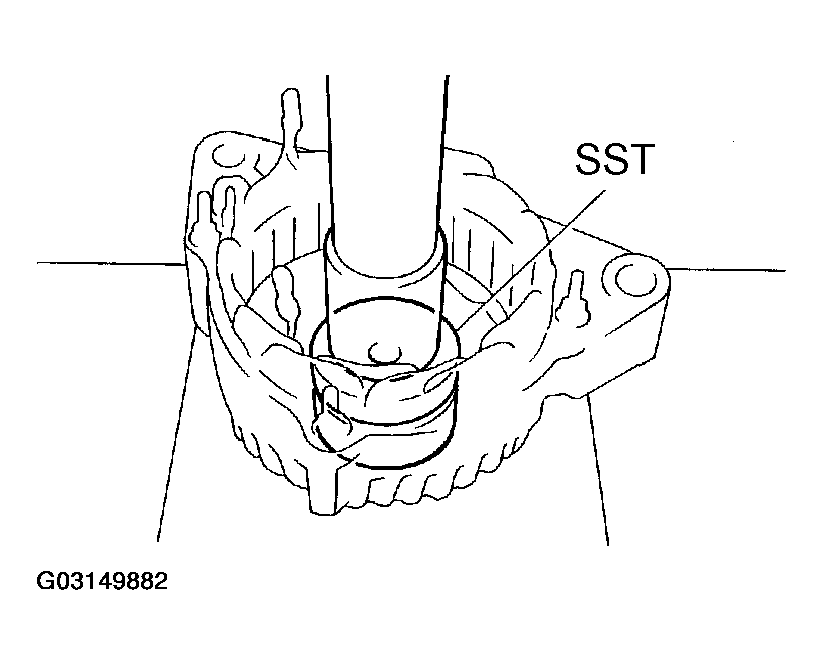

  Fig 2: Installing NEW Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE REAR BEARING.
1. Using SST (SST 09820-00021), remove the bearing cover (outside) and bearing.
  NOTE: Be careful not to damage the fan.

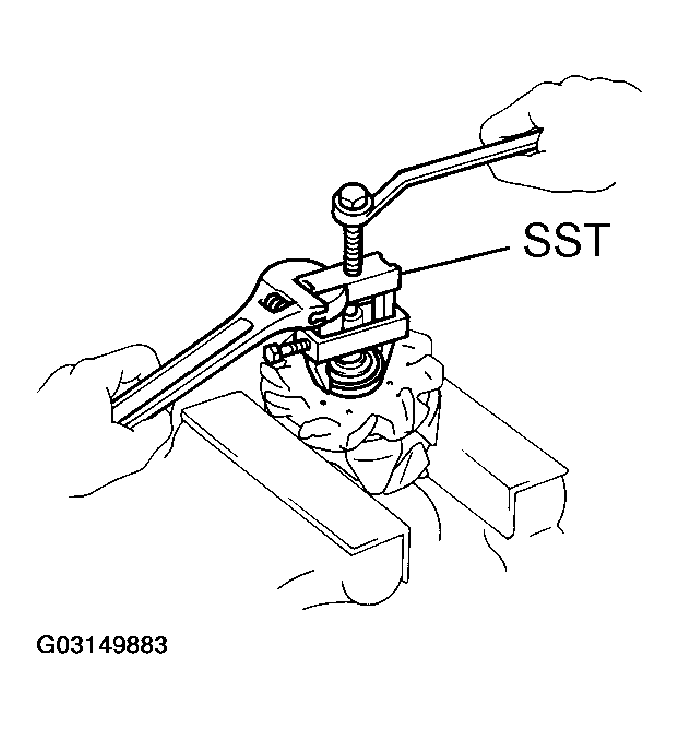

  Fig 3: Removing Outside Bearing Cover & Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bearing cover (inside).

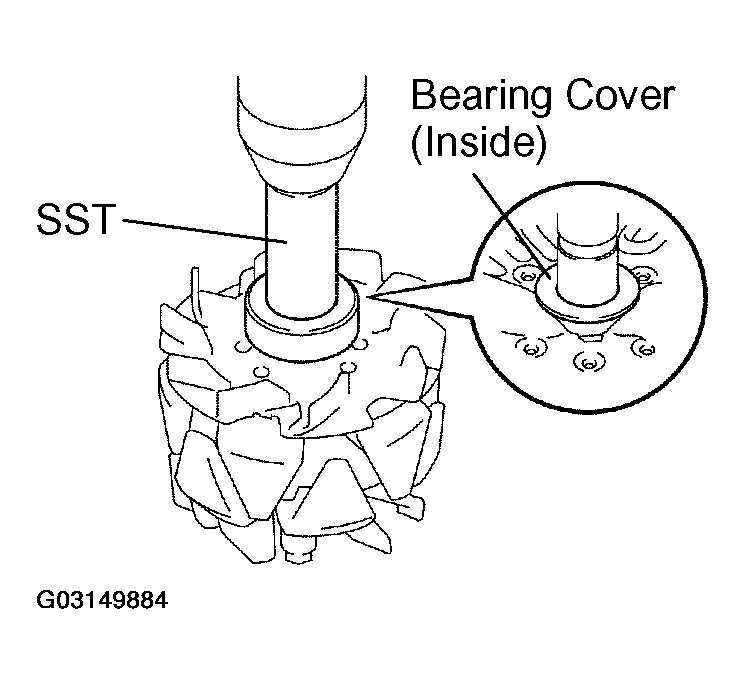

3. Place the bearing cover (inside) on the rotor.
4. Using SST (SST 09820-00030) and a press, press in a new bearing.

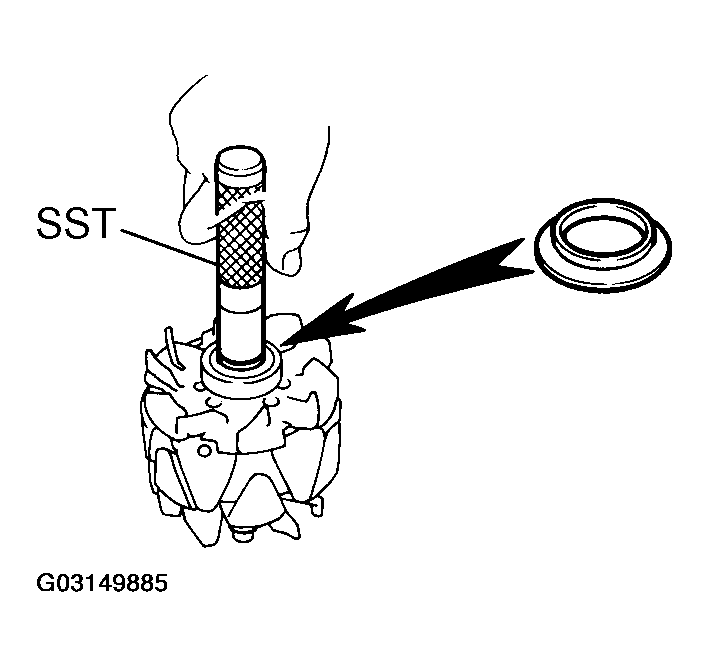

5. Using SST (SST 09285-76010), push in the bearing cover (outside).
