Rear Speed Sensor: Removal

DISCONNECT SPEED SENSOR CONNECTOR
1. Remove the seat cushion and seatback.
2. Disconnect the speed sensor connector and pull out the sensor wire harness with the grommet.
REMOVE REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
REMOVE SPEED SENSOR
1. Remove the clamp bolt holding the sensor wire harness to the toe control link.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
2. (b) Remove the clamp nut holding the sensor wire harness to the body.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

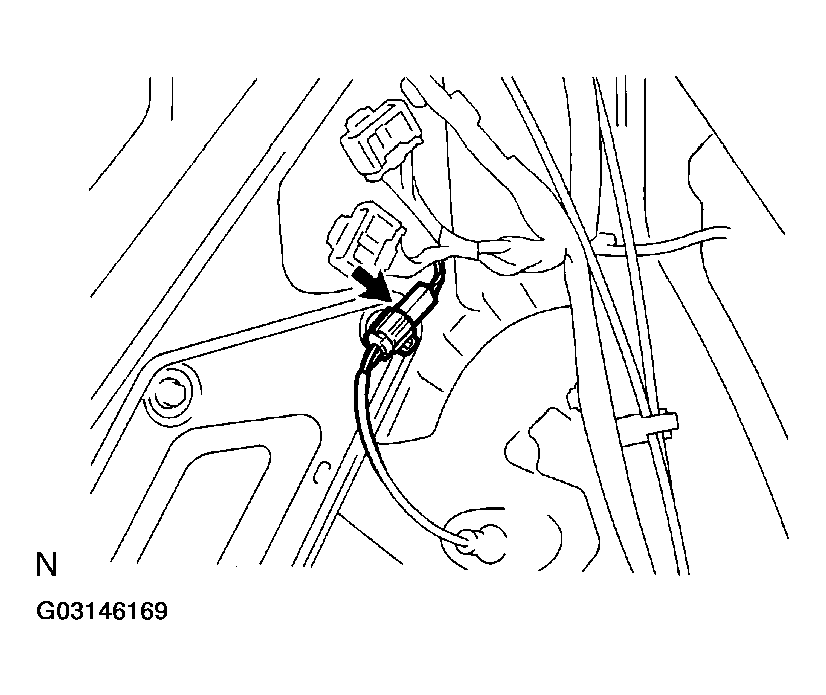

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the sensor installation bolt and speed sensor from the axle carrier.
  Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

  Fig 2: Removing Sensor Installation Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
