Riding Height Adjustment: Is300

  1. Measure from ground to front of No. 1 lower suspension arm mounting bolt center (dimension "A"). See Fig 1. Measure from ground to center of front wheel (dimension "B"). Subtract dimension "A" from dimension "B" for front ride height measurement. See RIDING HEIGHT SPECIFICATIONS  table.
  2. Measure from ground to center of rear wheel (dimension "C"). See Fig 1. Measure from ground to No. 2 lower suspension arm mounting bolt center (dimension "D"). Subtract dimension "D" from dimension "C" for rear ride height measurement. See RIDING HEIGHT SPECIFICATIONS  table.

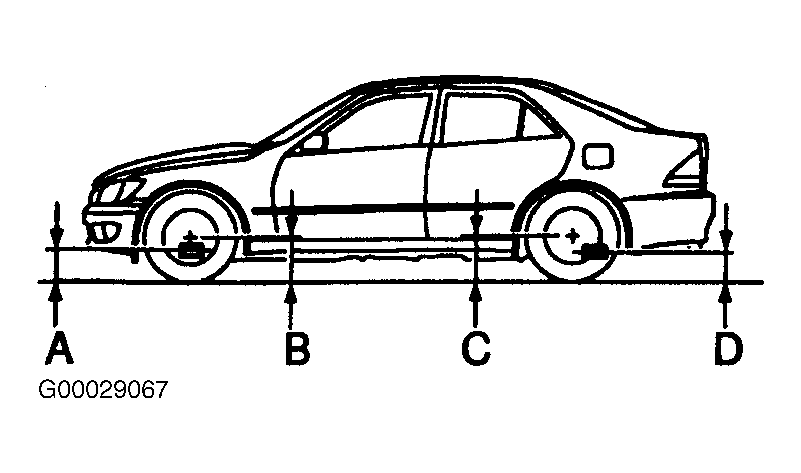

Fig 1: Measuring Riding Height (IS300)
G00029067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
