Accelerator Pedal Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION







INSPECT ACCELERATOR PEDAL POSITION SENSOR
a. Disconnect the accelerator pedal position sensor connector.

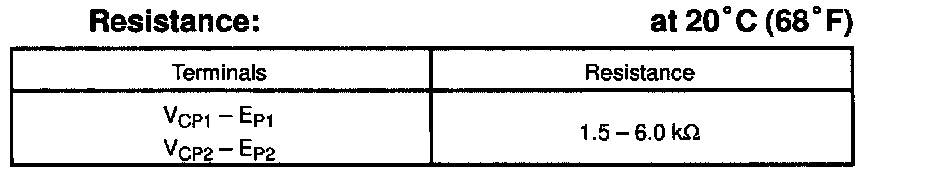

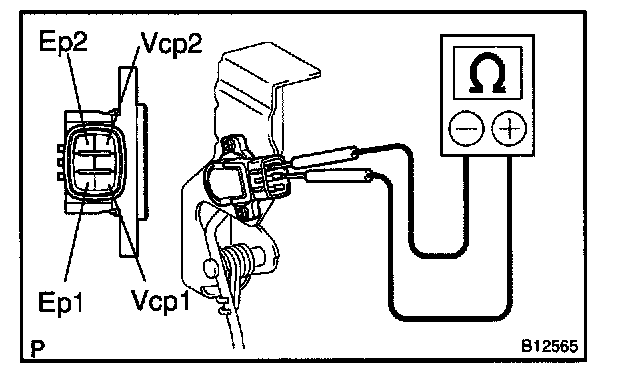

b. Using an ohmmeter, measure the resistance between each terminals.
If the resistance is not as specified, replace the accelerator pedal assembly with accelerator pedal position sensor.
c. Reconnect the accelerator pedal position sensor connector.
