Combination Meter Circuit

CIRCUIT DESCRIPTION

The Driver side J/B ECU receives the signals of the light control sensor and the rheostat light control volume to conduct the illumination control of the meter illumination.

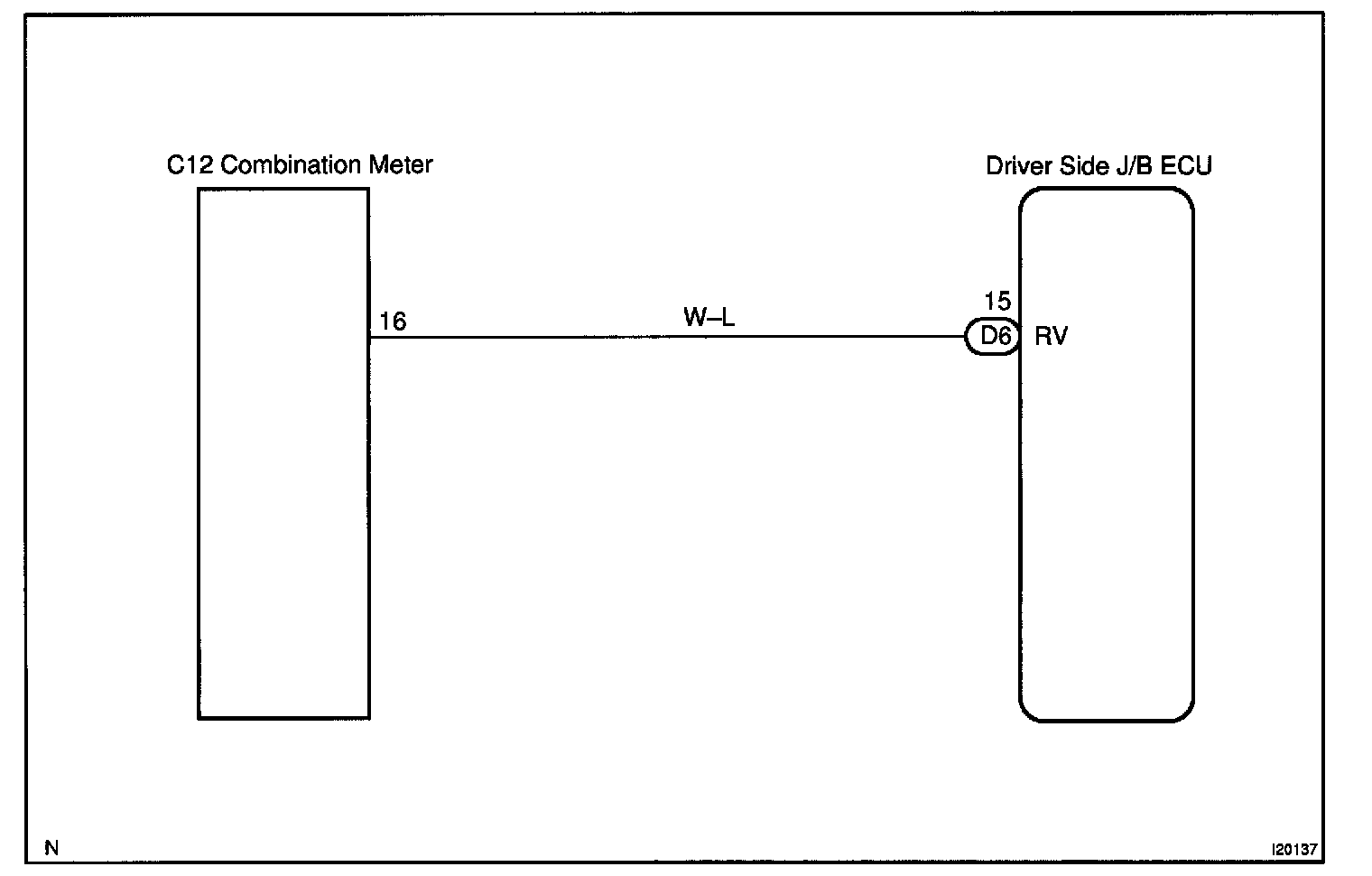

Wiring Diagram:

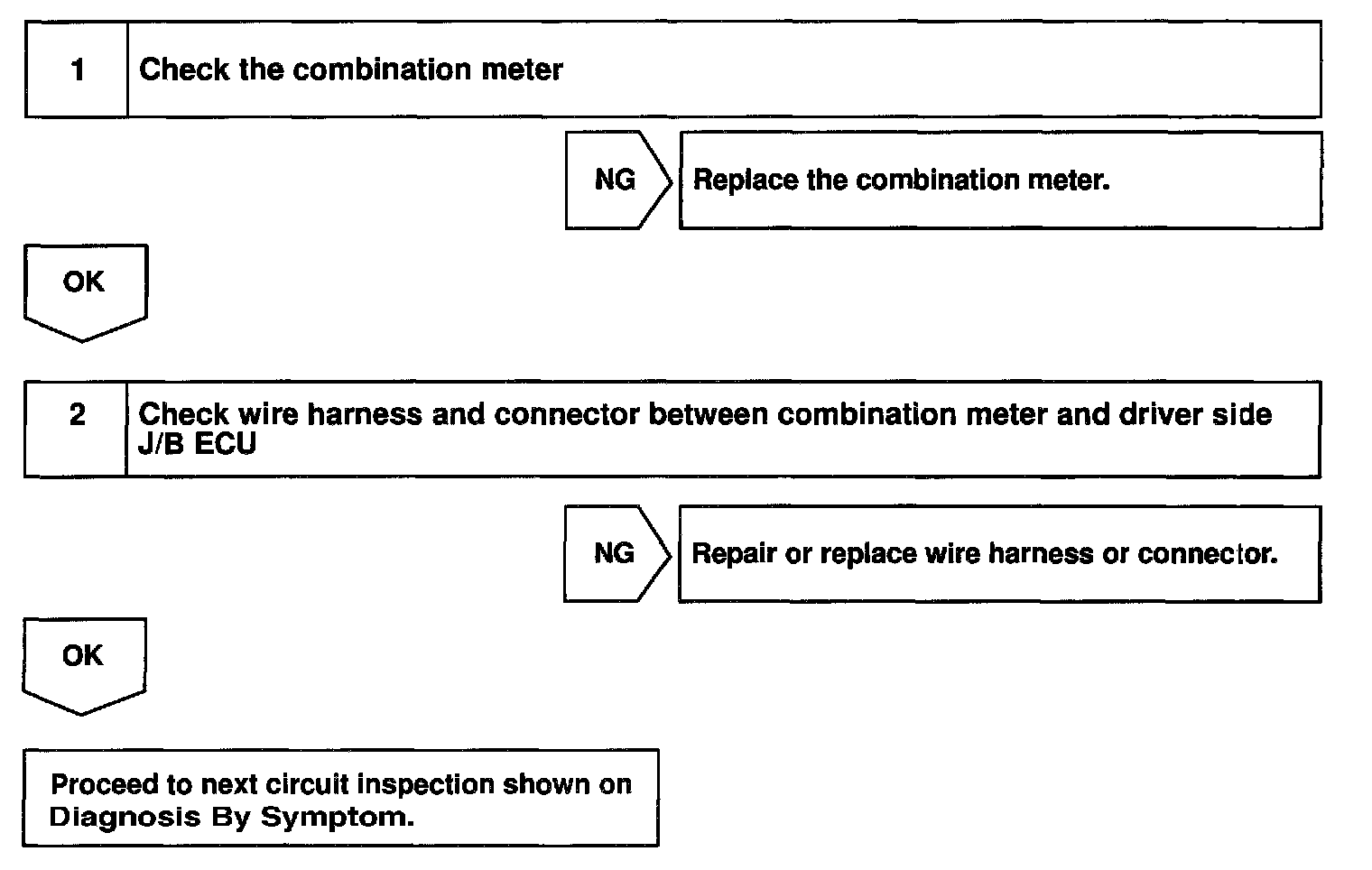

Steps 1 - 2:




INSPECTION PROCEDURE
