Driver Buckle Illumination Circuit
CIRCUIT DESCRIPTIONReceiving the courtesy signal from the door ECU, the Driver side J/B ECU makes the buckle illumination on the opened door side come on.
Wiring Diagram:

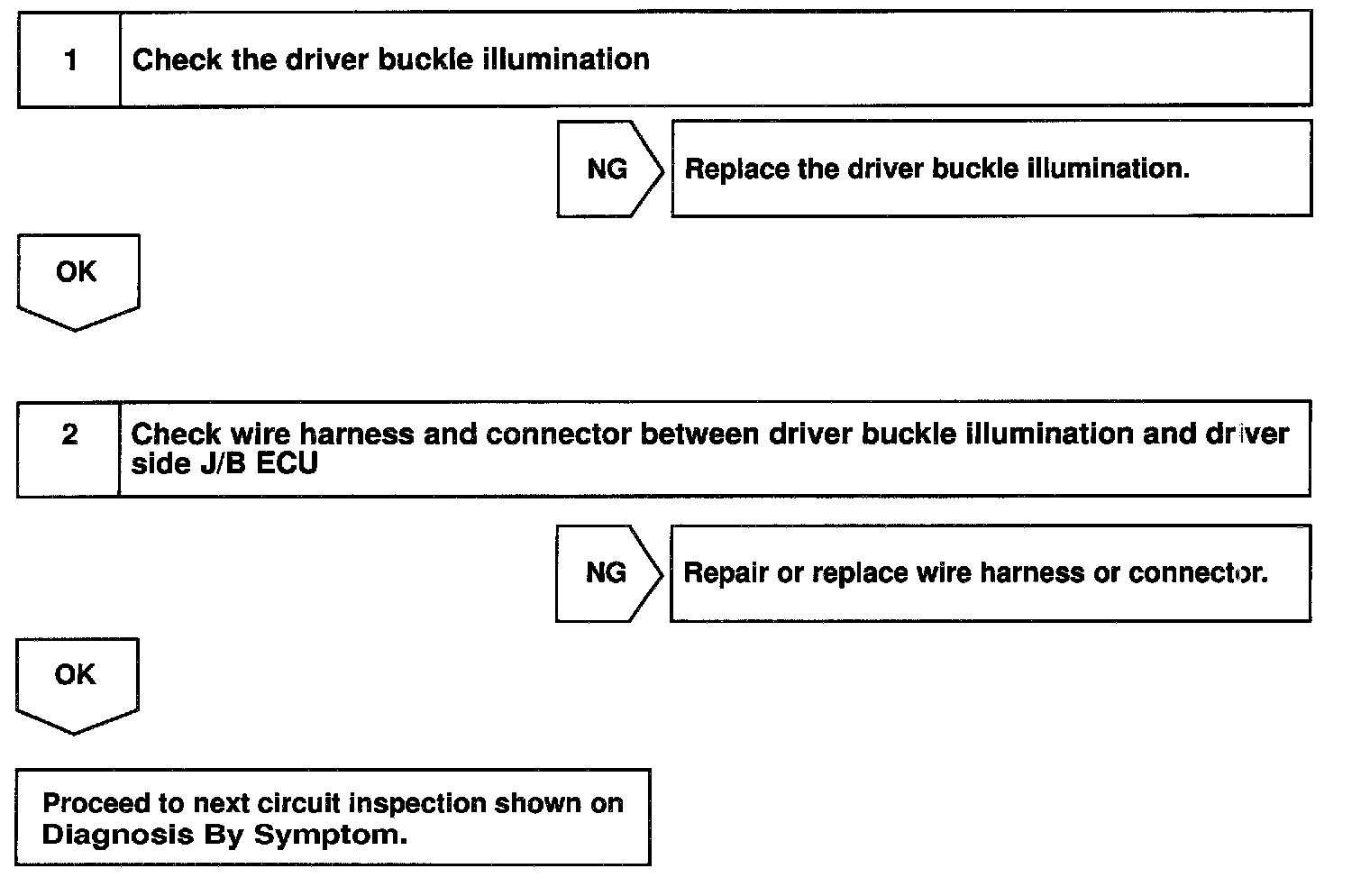

Steps 1 - 2:
INSPECTION PROCEDURE
Receiving the courtesy signal from the door ECU, the Driver side J/B ECU makes the buckle illumination on the opened door side come on.
INSPECTION PROCEDURE
