Head Light Cleaner Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the headlight cleaner switch.

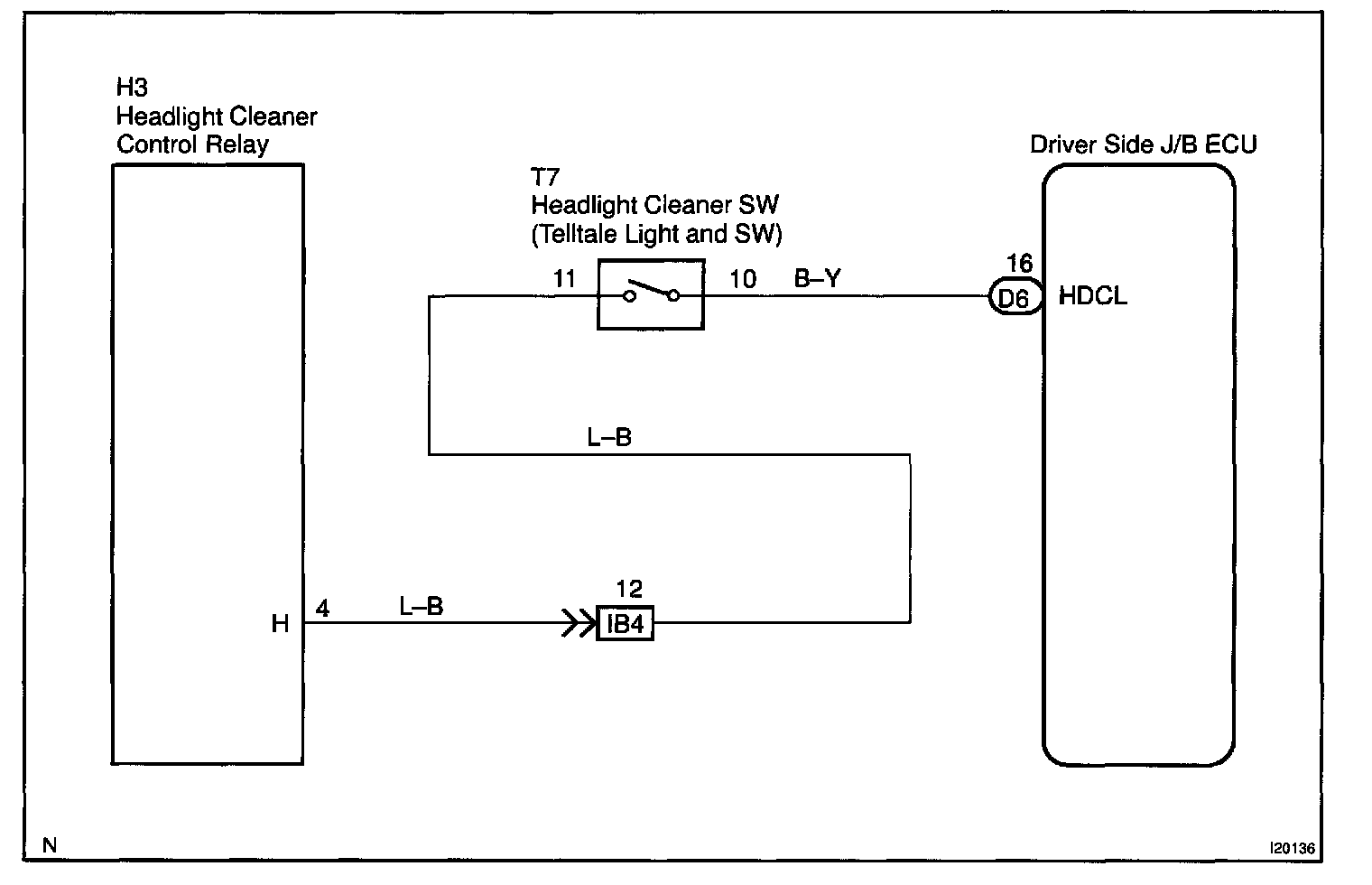

Wiring Diagram:

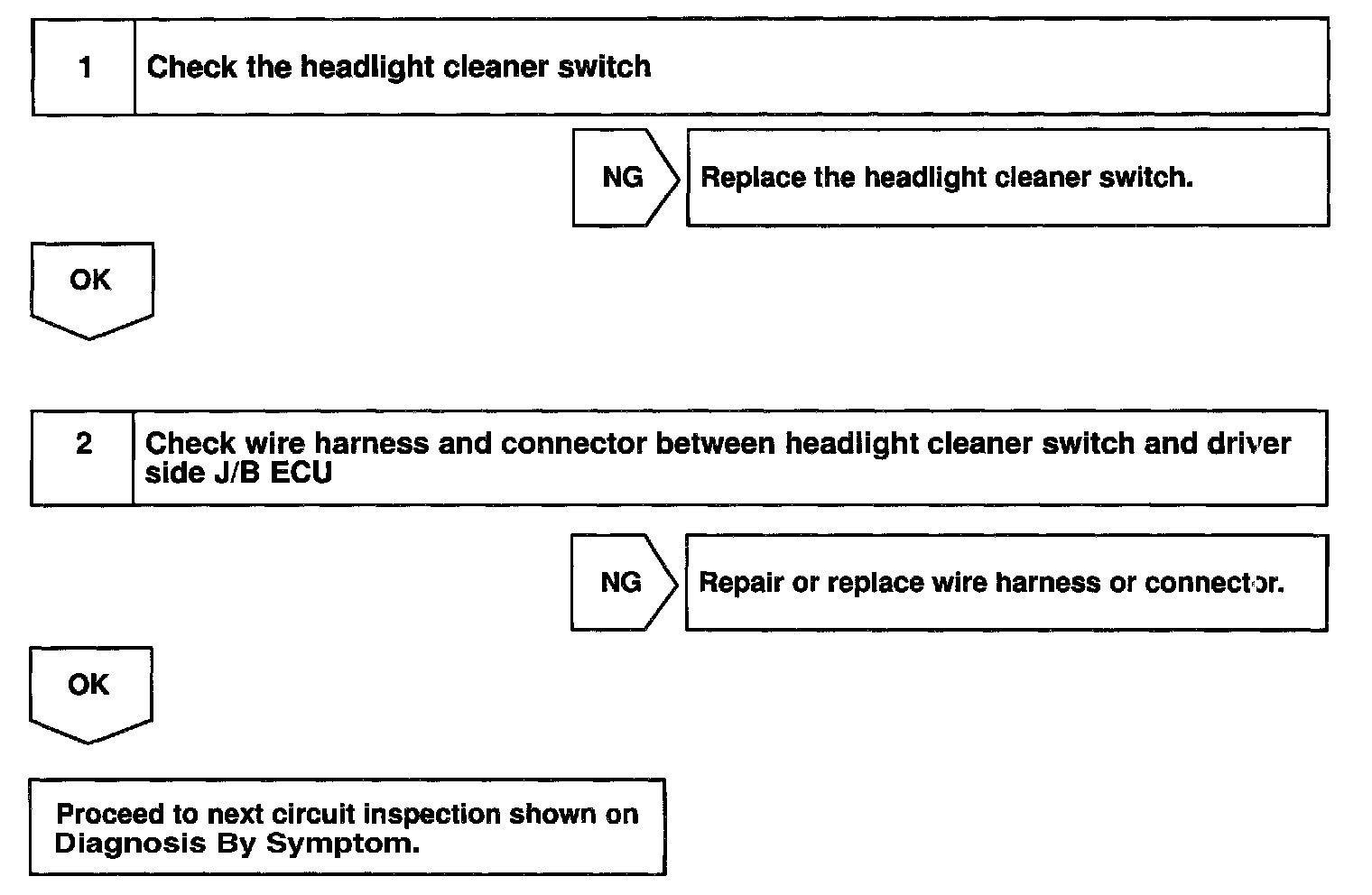

Steps 1 - 2:




INSPECTION PROCEDURE
