Shoulder Belt Anchor Sensor Circuit

CIRCUIT DESCRIPTION

This position detected by the seat belt position detection sensor will be memorized in the Driver side J/B ECU. This sensor is equipped in the seat belt anchor to operate the memory function.

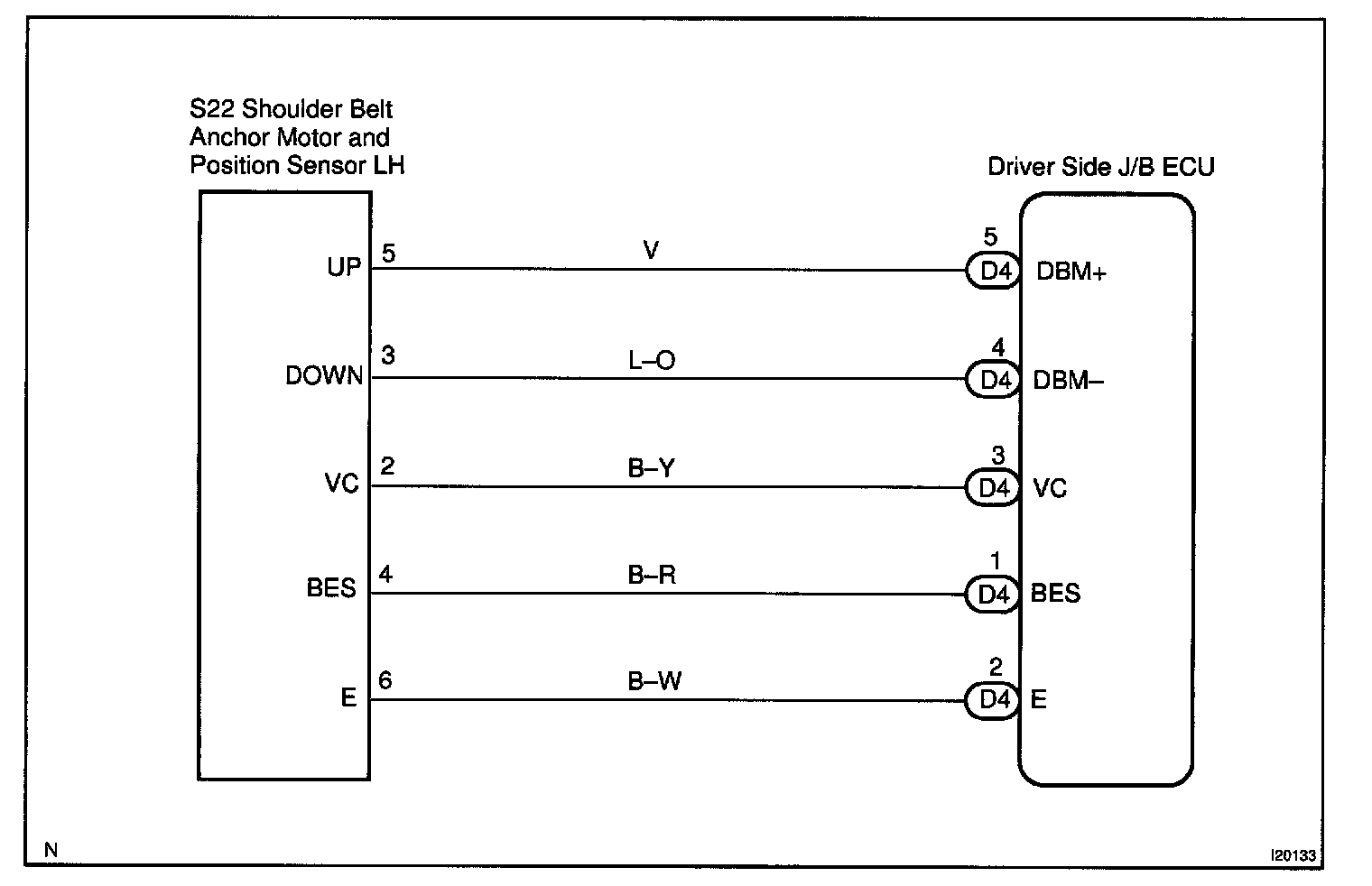

Wiring Diagram:

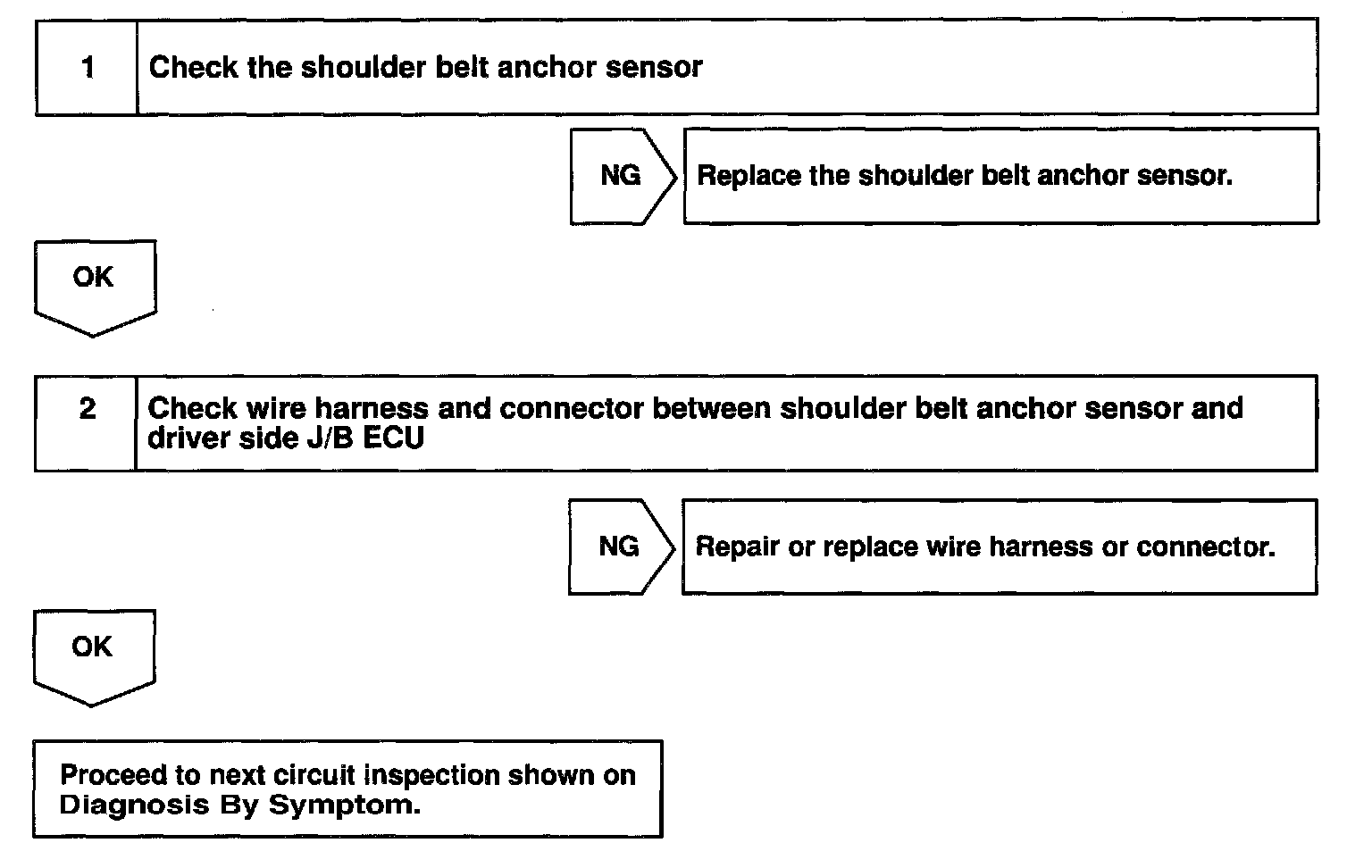

Steps 1 - 2:




INSPECTION PROCEDURE
