Navigation ECU Communication Circuit

CIRCUIT DESCRIPTION

Passenger side J/B ECU sends A/T reverse position signal to the Navigation ECU.

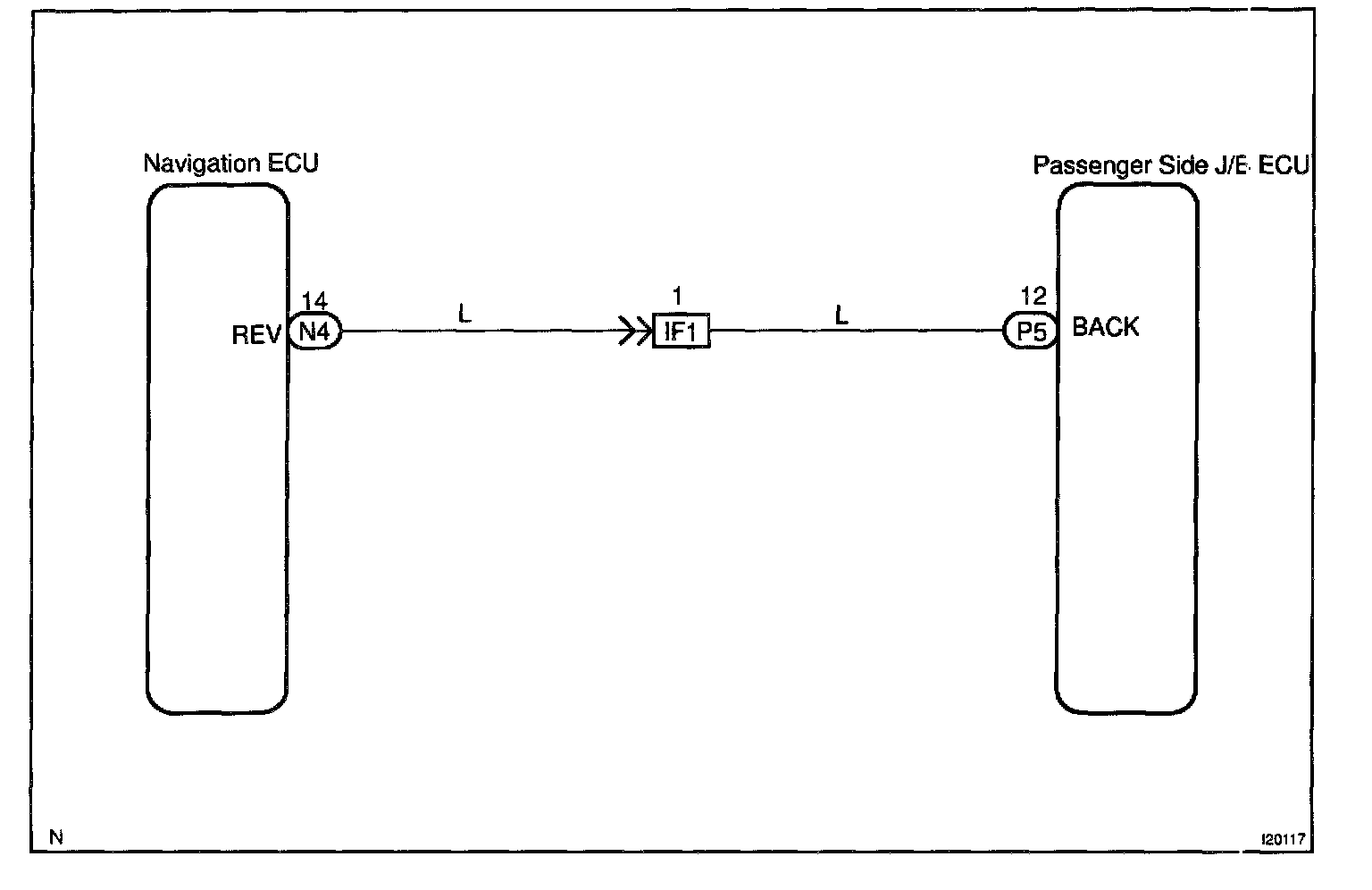

Wiring Diagram:

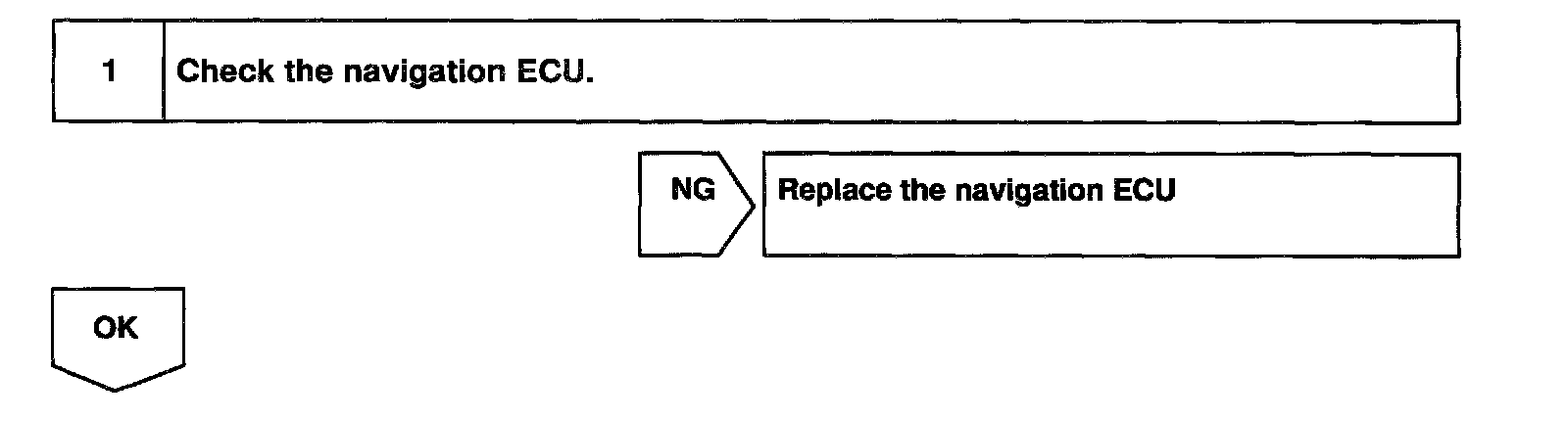

Step 1:

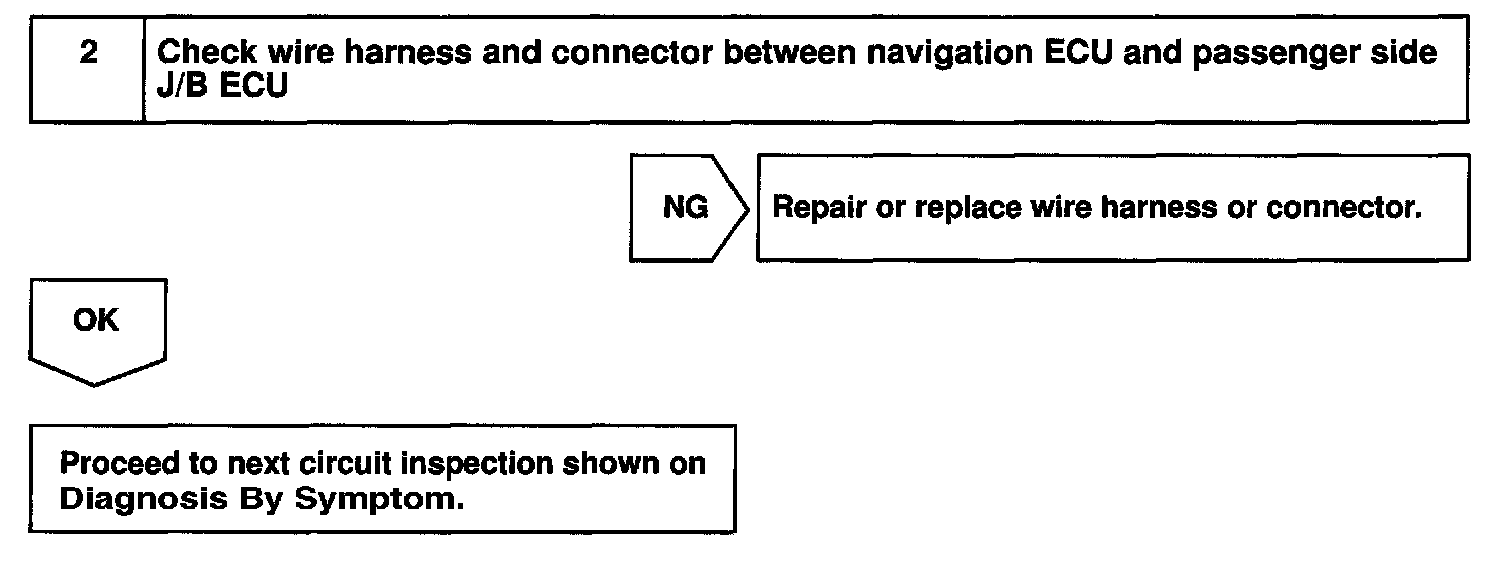

Step 2:




INSPECTION PROCEDURE
