Pattern Select Switch Circuit

CIRCUIT DESCRIPTION

Passenger sides J/B ECU detects the state of the ECT pattern select switch.

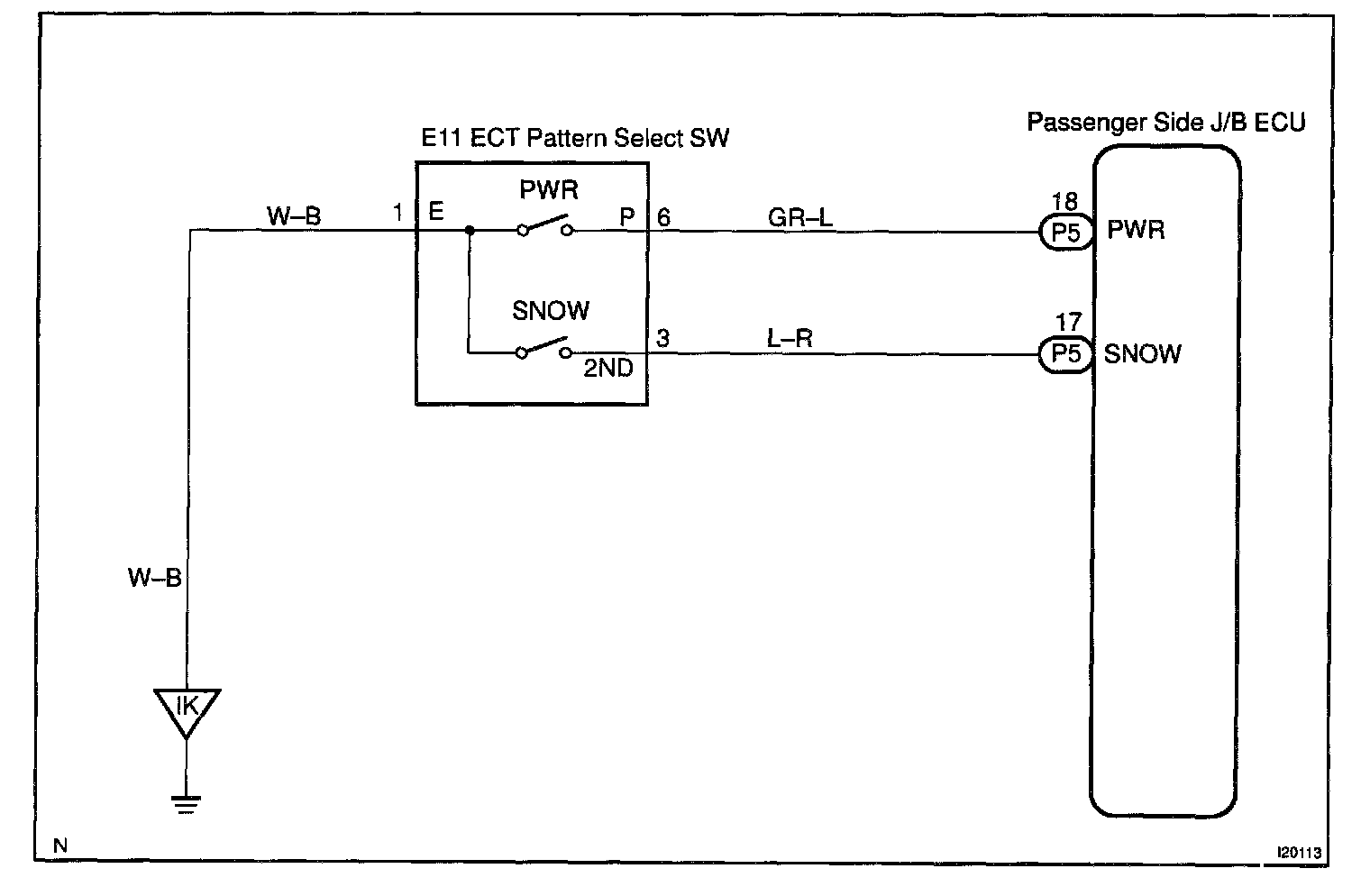

Wiring Diagram:

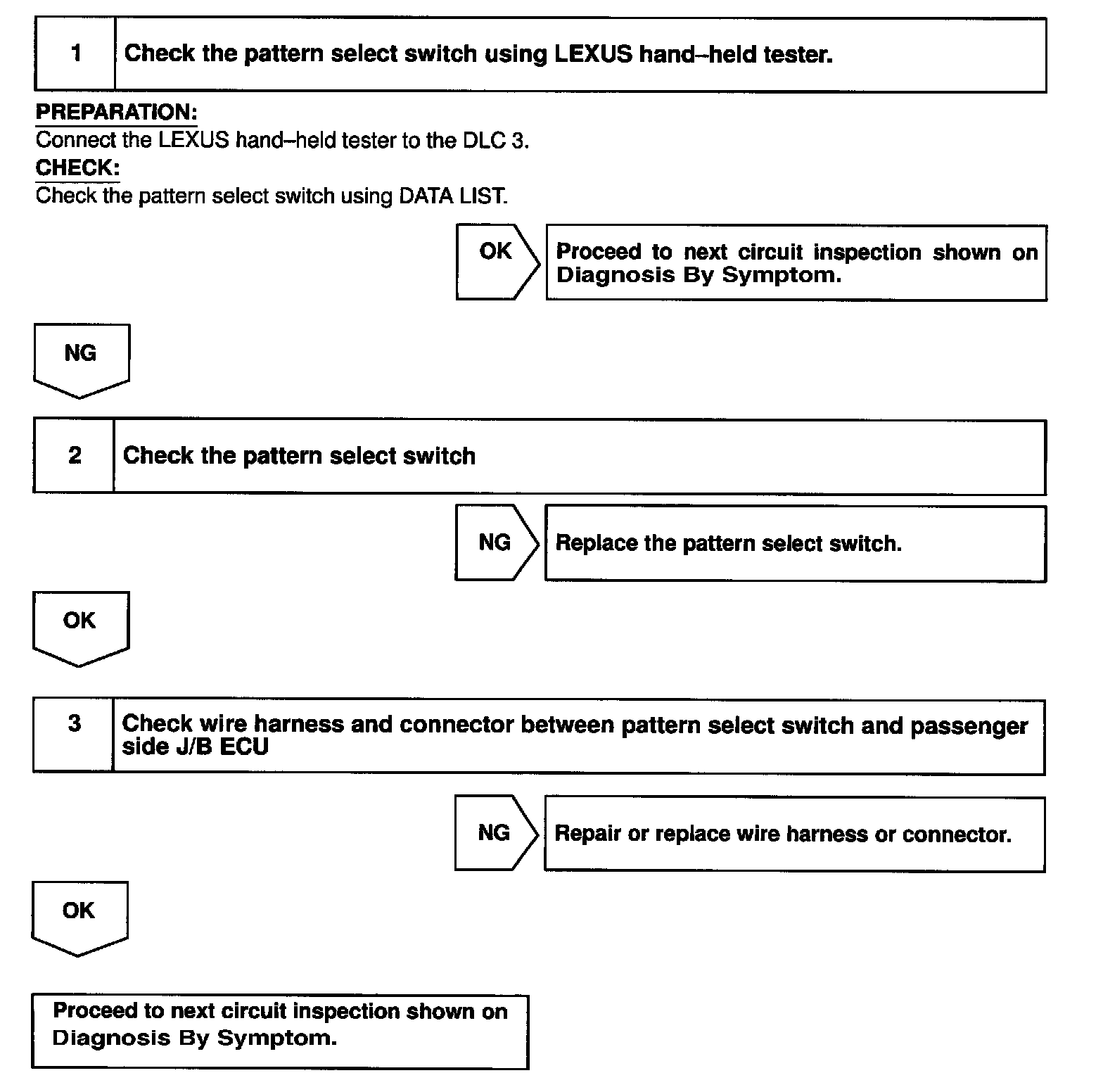

Steps 1 - 3:




INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
