Wiper Switch (Hi Speed) Circuit

CIRCUIT DESCRIPTION

Passenger side J/B ECU receives the HI position signal of the wiper switch to operate the wiper motor at HI speed.

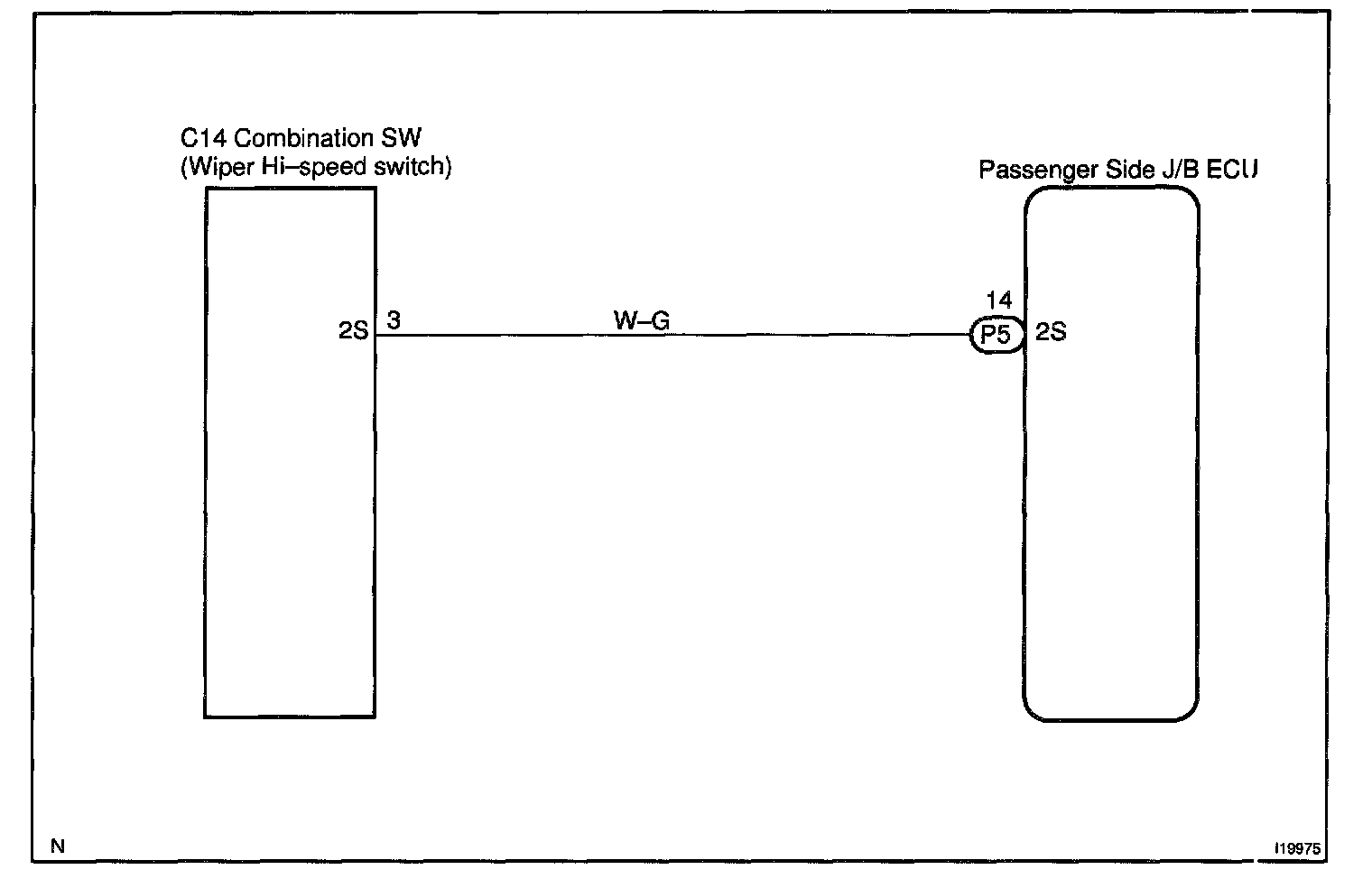

Wiring Diagram:

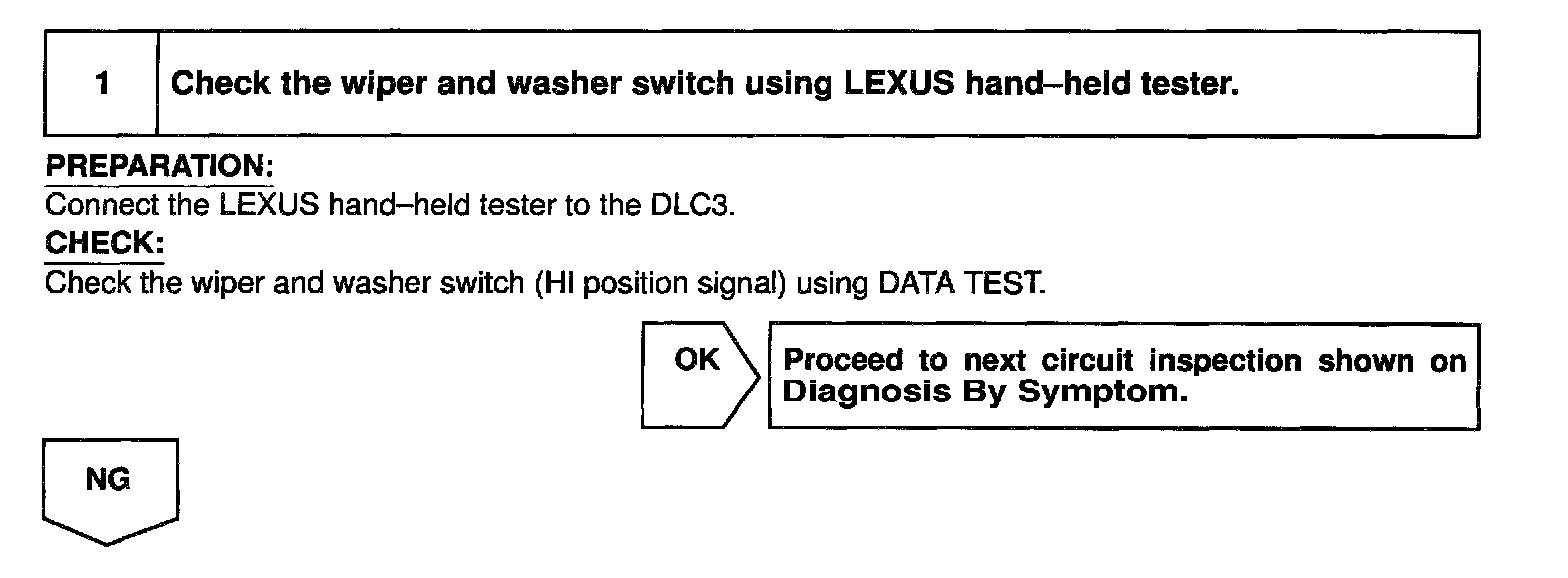

Step 1:

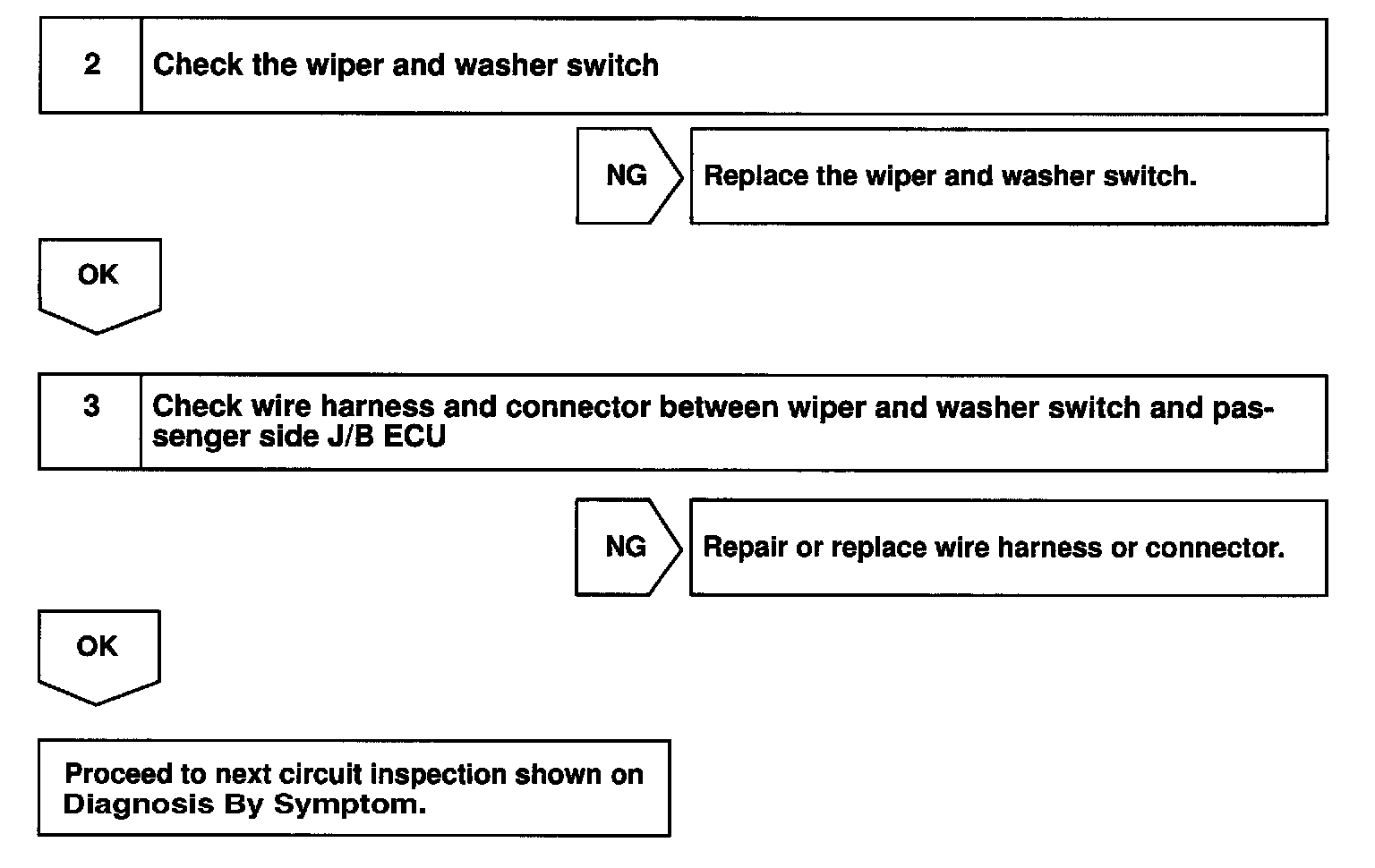

Steps 2 - 3:

INSPECTION PROCEDURE
