Fuel Lid Opener Motor Circuit

CIRCUIT DESCRIPTION

This circuit opens the fuel lid when the ECU sends signals to the fuel lid opener switch.

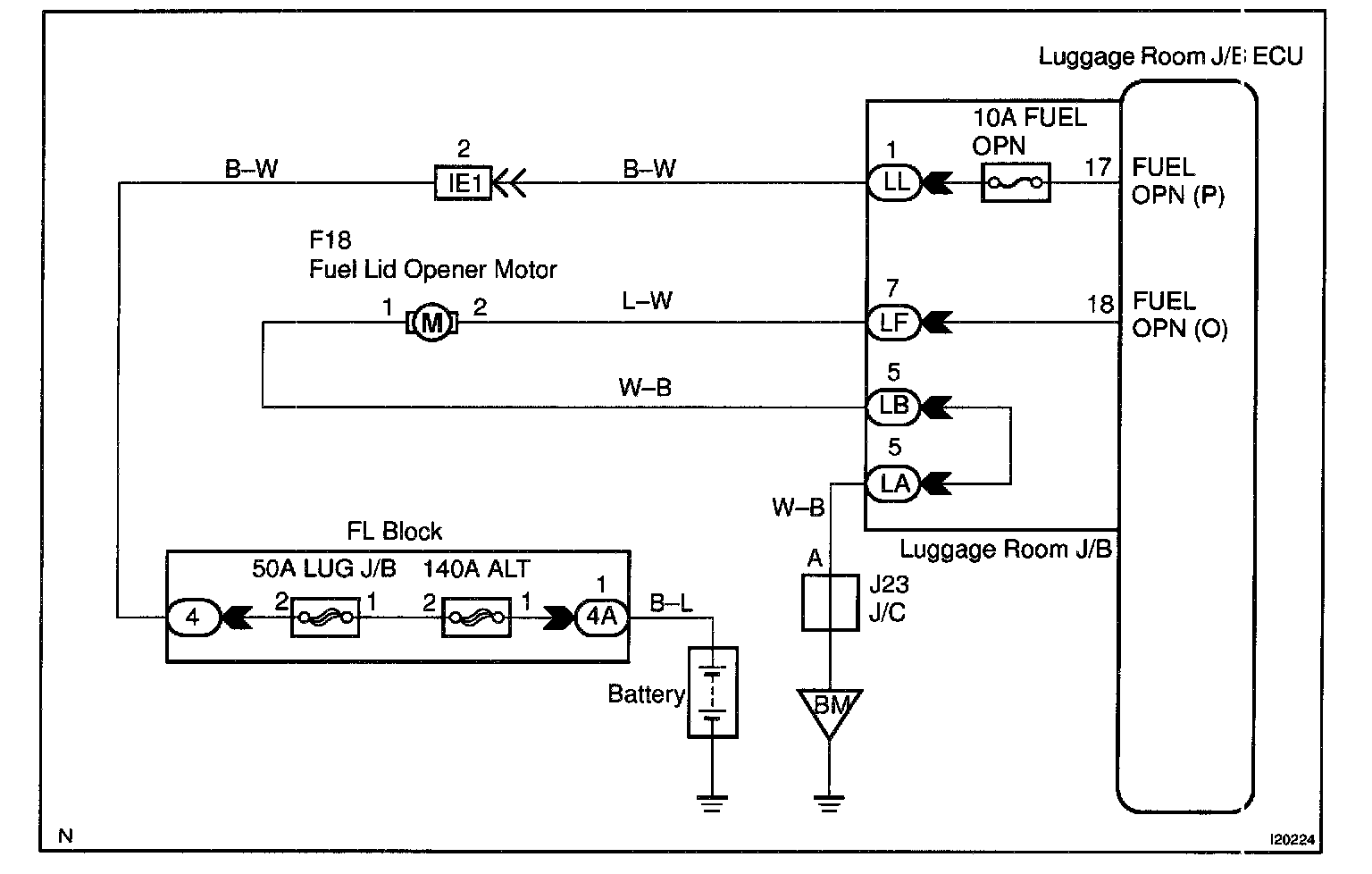

Wiring Diagram:

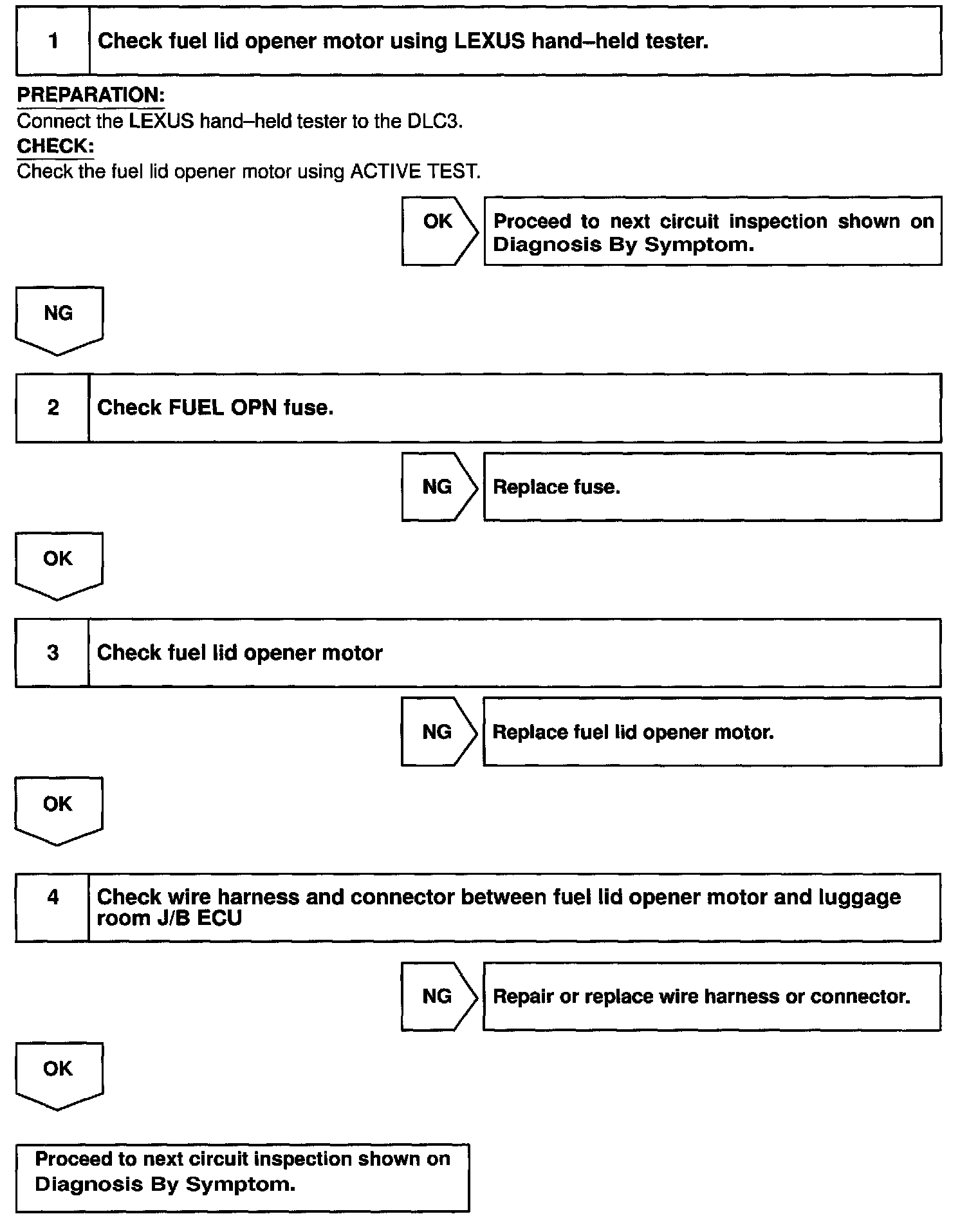

Steps 1 - 4:




INSPECTION PROCEDURE
