Luggage Room Light Circuit
CIRCUIT DESCRIPTIONThe luggage door courtesy switch goes on when the luggage door is opened and goes off when the luggage door is closed.

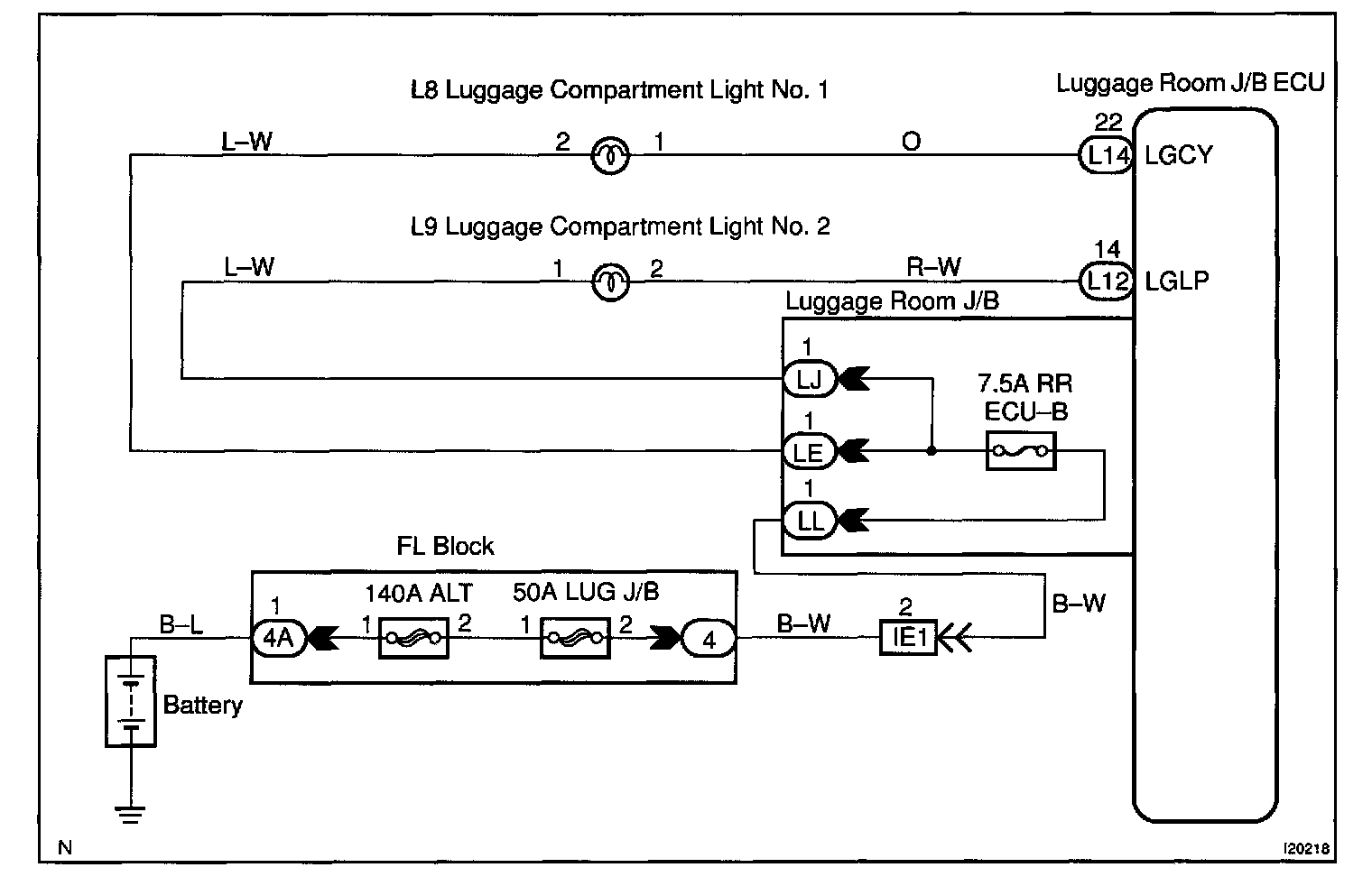

Wiring Diagram:

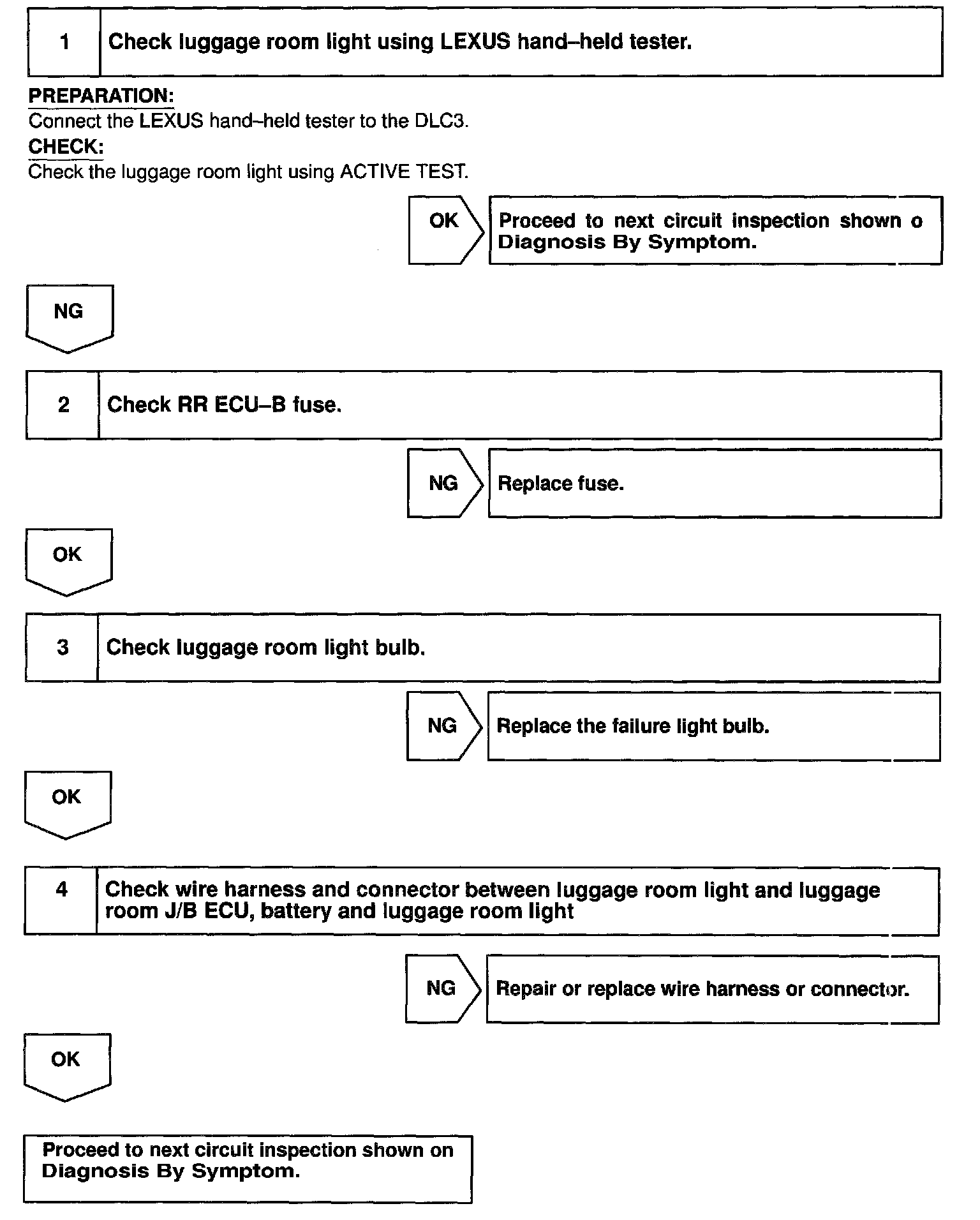

Steps 1 - 4:
INSPECTION PROCEDURE
The luggage door courtesy switch goes on when the luggage door is opened and goes off when the luggage door is closed.
INSPECTION PROCEDURE
