Side Marker Light Circuit

CIRCUIT DESCRIPTION

Front Light ECU receives taillight switch information from the combination switch, and lights the side marker light.

Wiring Diagram:

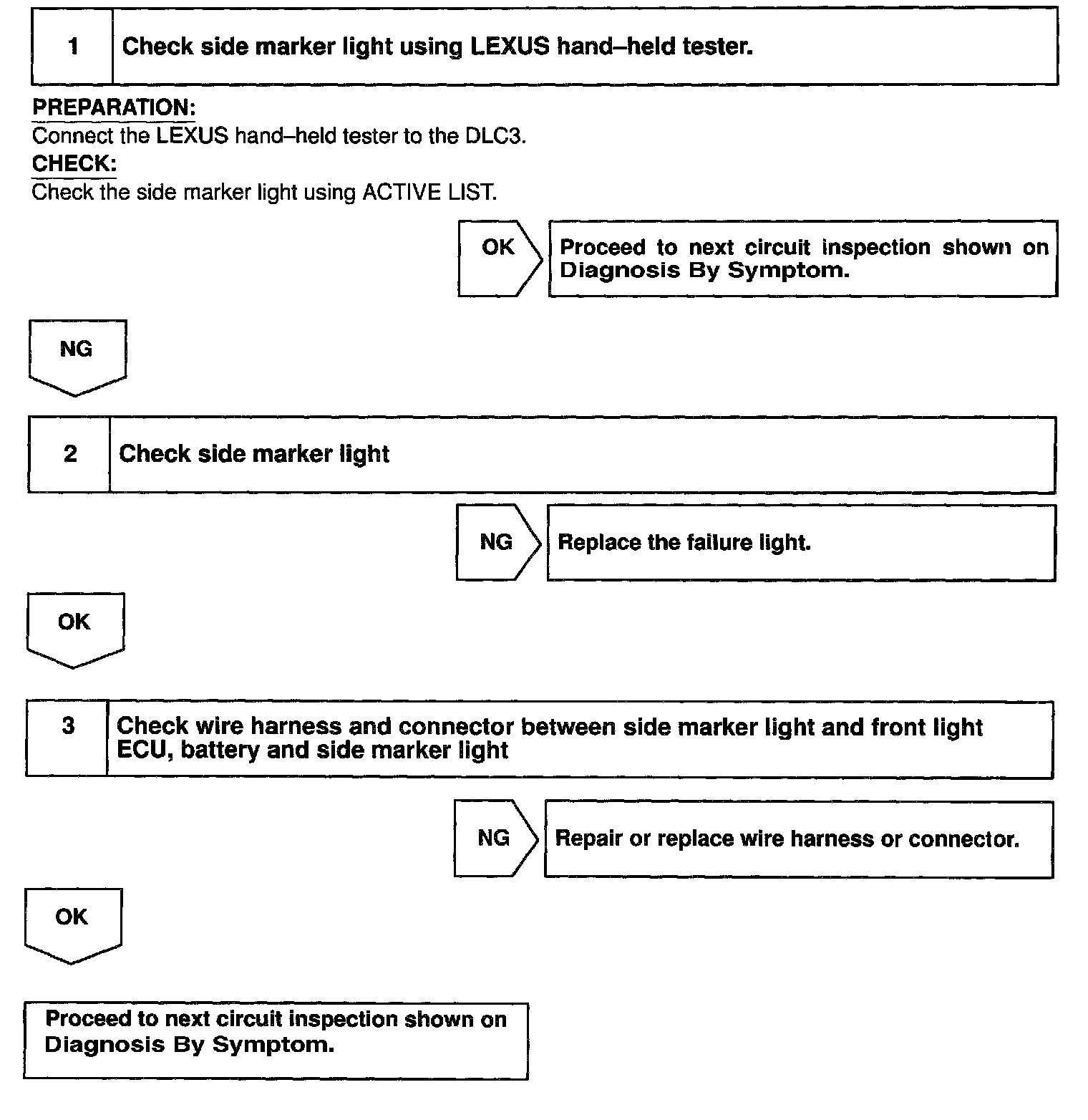

Steps 1 - 3:




INSPECTION PROCEDURE
