Washer Fluid Level Sensor Circuit

CIRCUIT DESCRIPTION

Front Light ECU receives washer fluid level sensor information, and sends it through the multiplex communication circuit to the combination meter.

The combination meter receives this information, and lights the washer fluid level warning when the washer fluid becomes less.

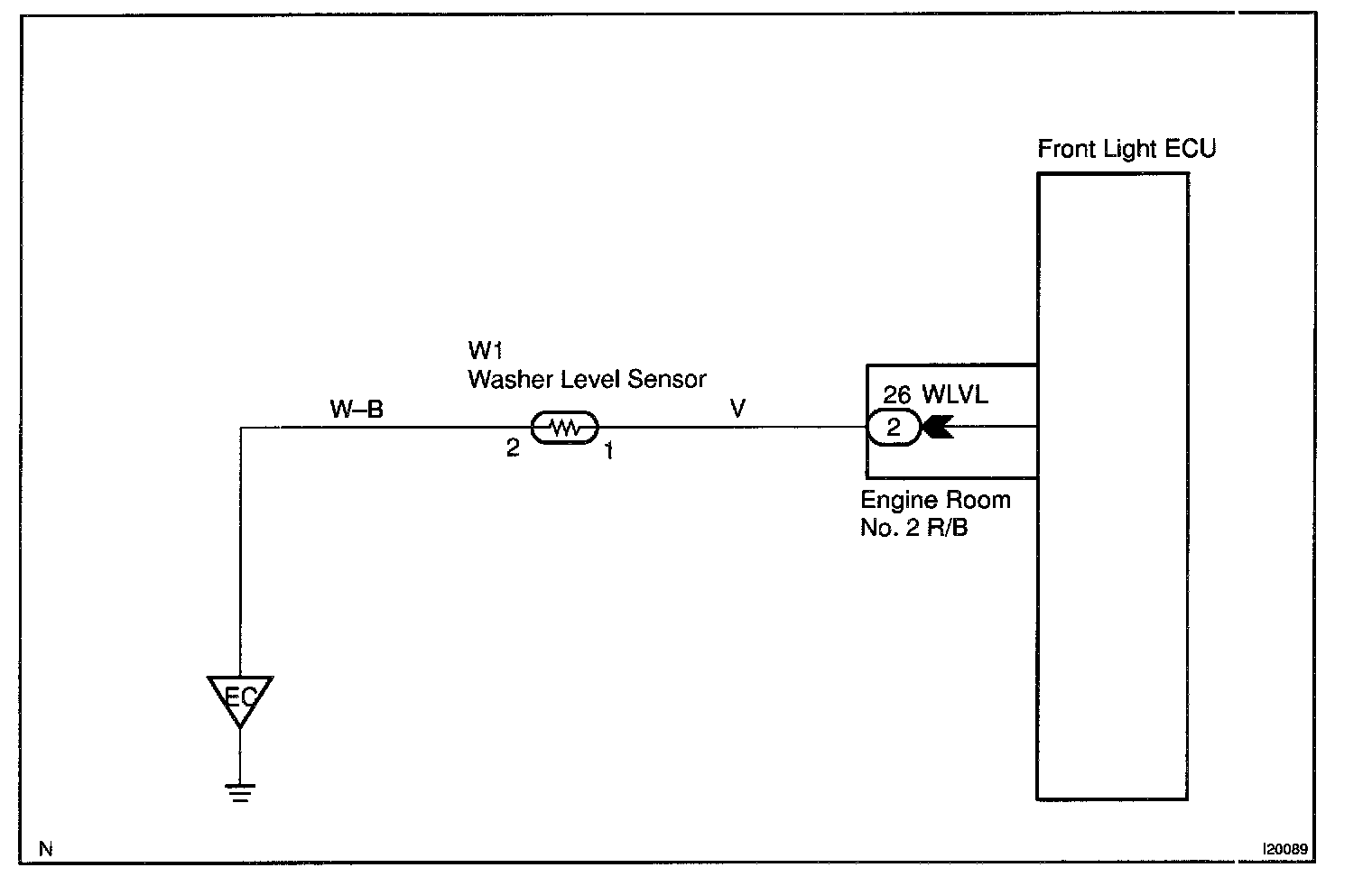

Wiring Diagram:

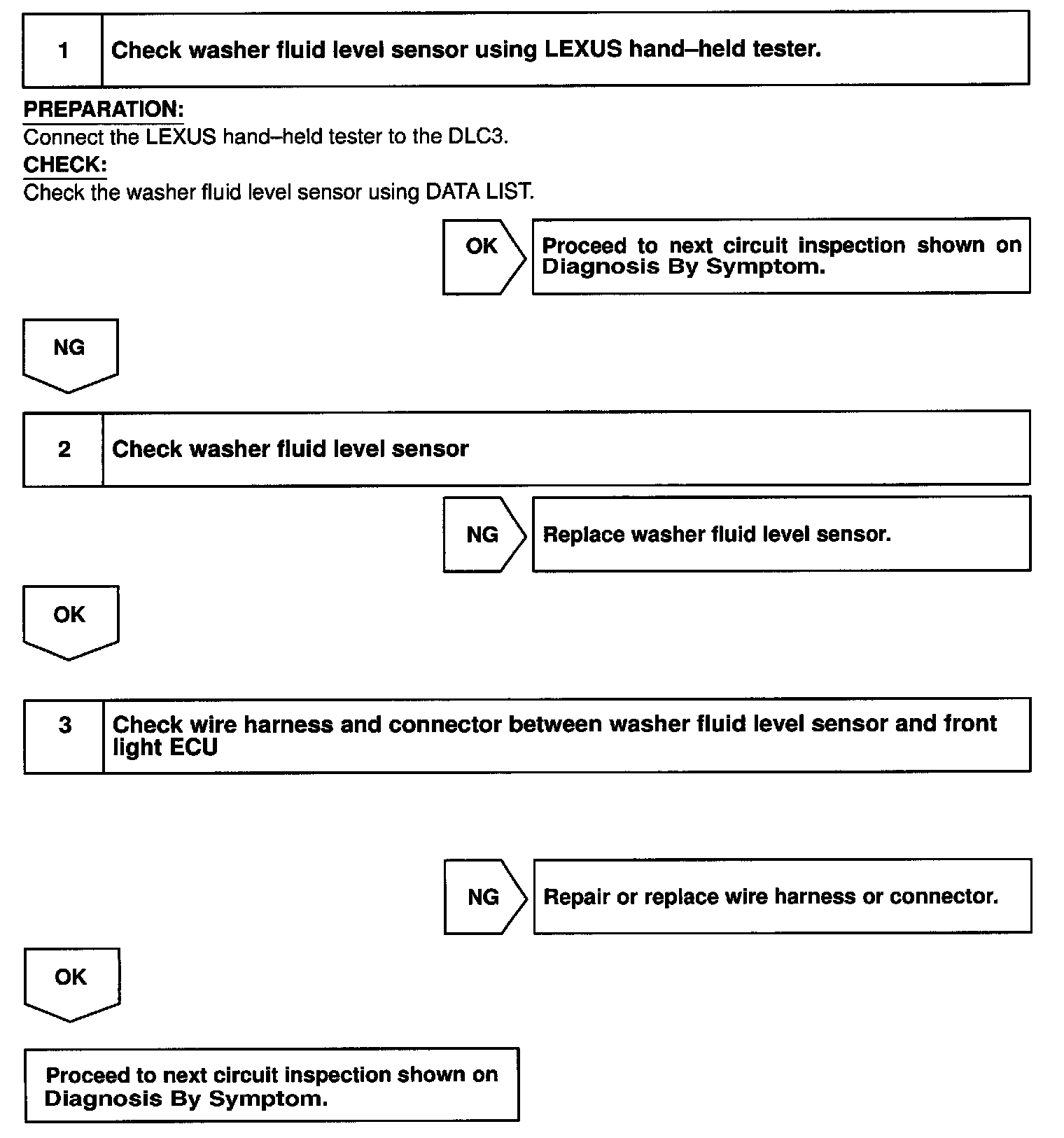

Steps 1 - 3:

INSPECTION PROCEDURE
