Wireless Door Lock Control Receiver Circuit

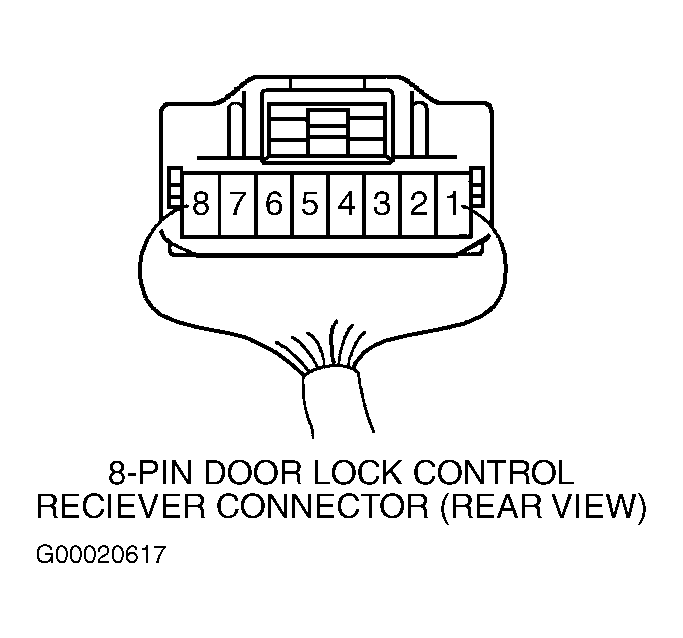

Ensure wireless door lock control receiver circuit 8-pin connector is connected. Measure voltage (backprobe) between specified terminals and ground. See Fig 1. See WIRELESS DOOR LOCK CONTROL RECEIVER CIRCUIT table. Replace wireless door lock control receiver as necessary.
WIRELESS DOOR LOCK CONTROL RECEIVER CIRCUIT
| Terminals No. | Condition | Voltage |
|---|---|---|
| 8-Ground | Ignition Switch Off, Key Removed, Transmitter Off | Zero |
| Ignition Switch Off, Key Removed, Transmitter On | 5 | |
| 7-Ground | Ignition Switch Off, Key Removed, Transmitter Off | 10-14 |
| Ignition Switch Off, Key Removed, Transmitter On | Less Than One | |
| 6-Ground | Ignition Switch Off, Key Removed, Transmitter Off | 10-14 |
| Ignition Switch Off, Key Removed, Transmitter On | Less Than One | |
