Right Rear Window Up Operation

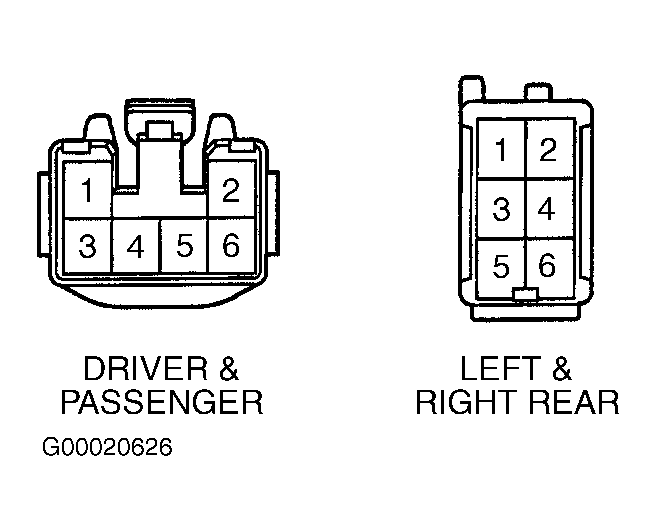

Disconnect window motor harness connector. Connect ohmmeter positive lead to window motor harness connector terminal No. 4 (Black/White wire) and negative ohmmeter lead to terminal No. 5 (Brown/Black wire). Apply positive battery voltage to terminal No. 1 (Red wire) and connect negative battery lead to window motor harness connector terminal No. 2 (Green wire). See Fig 1. Ensure continuity exists when window goes up, and does not exist when window is fully closed. If continuity is not as specified, replace window motor assembly.
