Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2-Fig 4 .

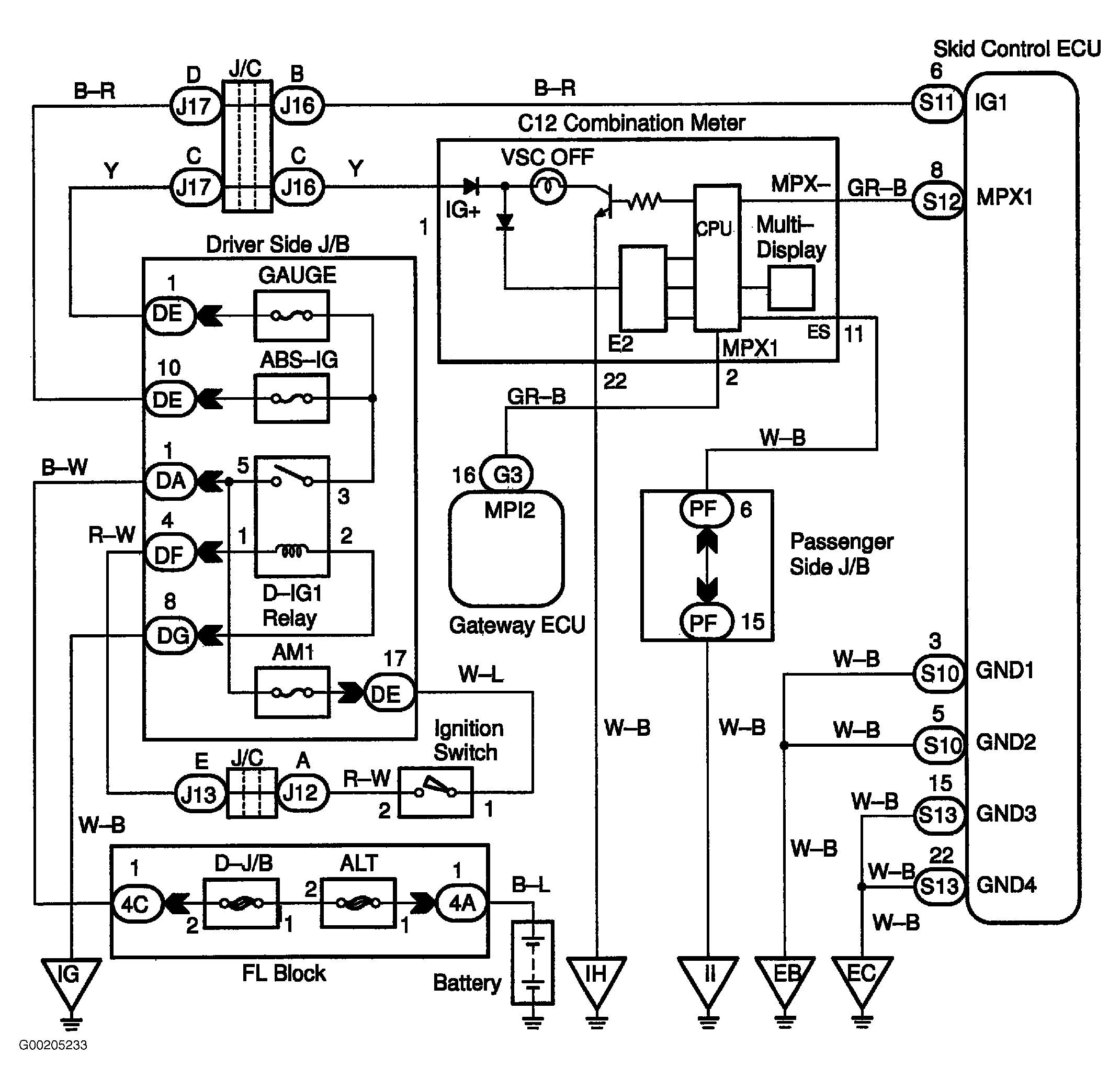

Fig 1: VSC Warning Indicator Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

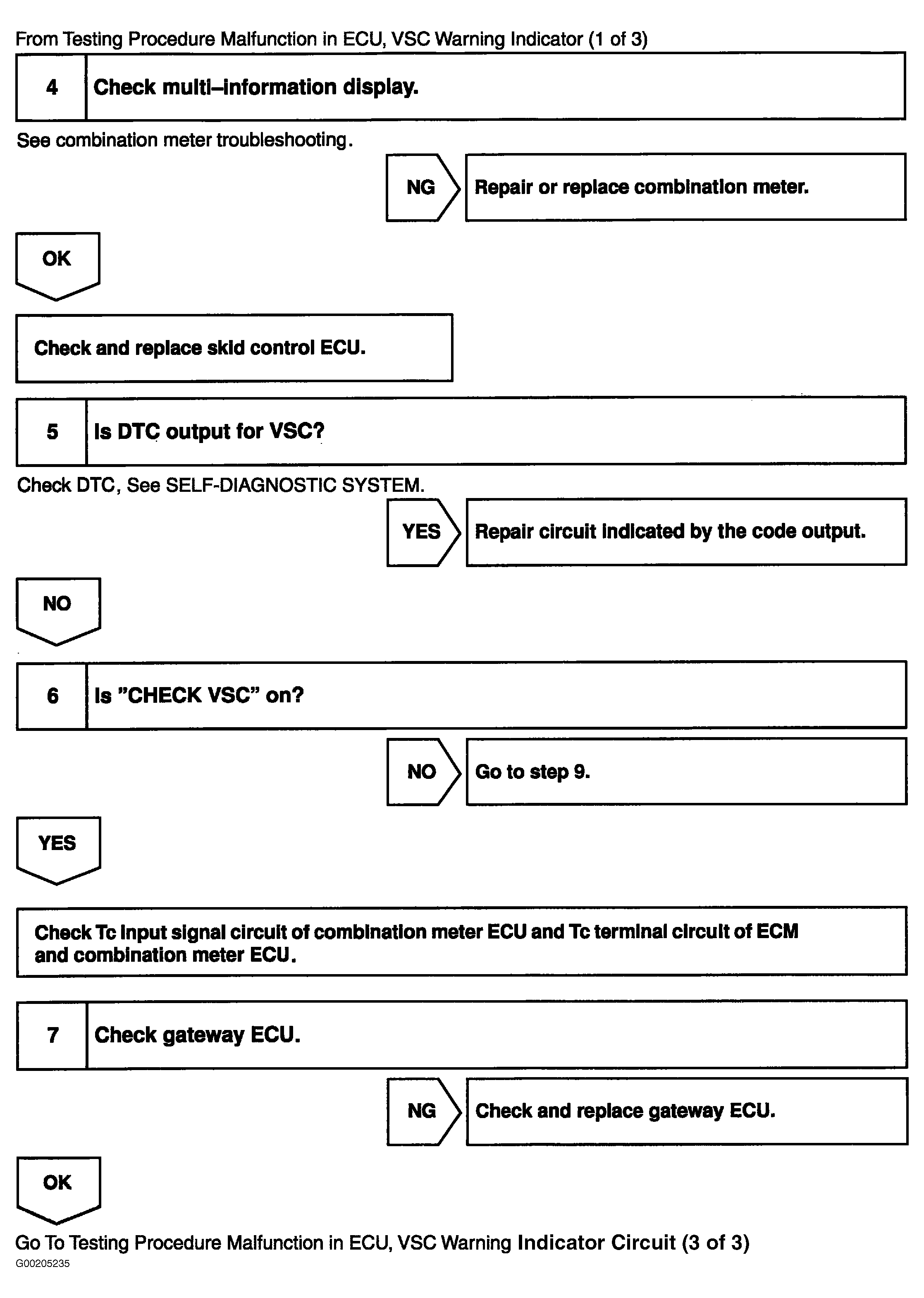

Fig 2: Testing Procedure Malfunction In ECU, VSC Warning Indicator (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

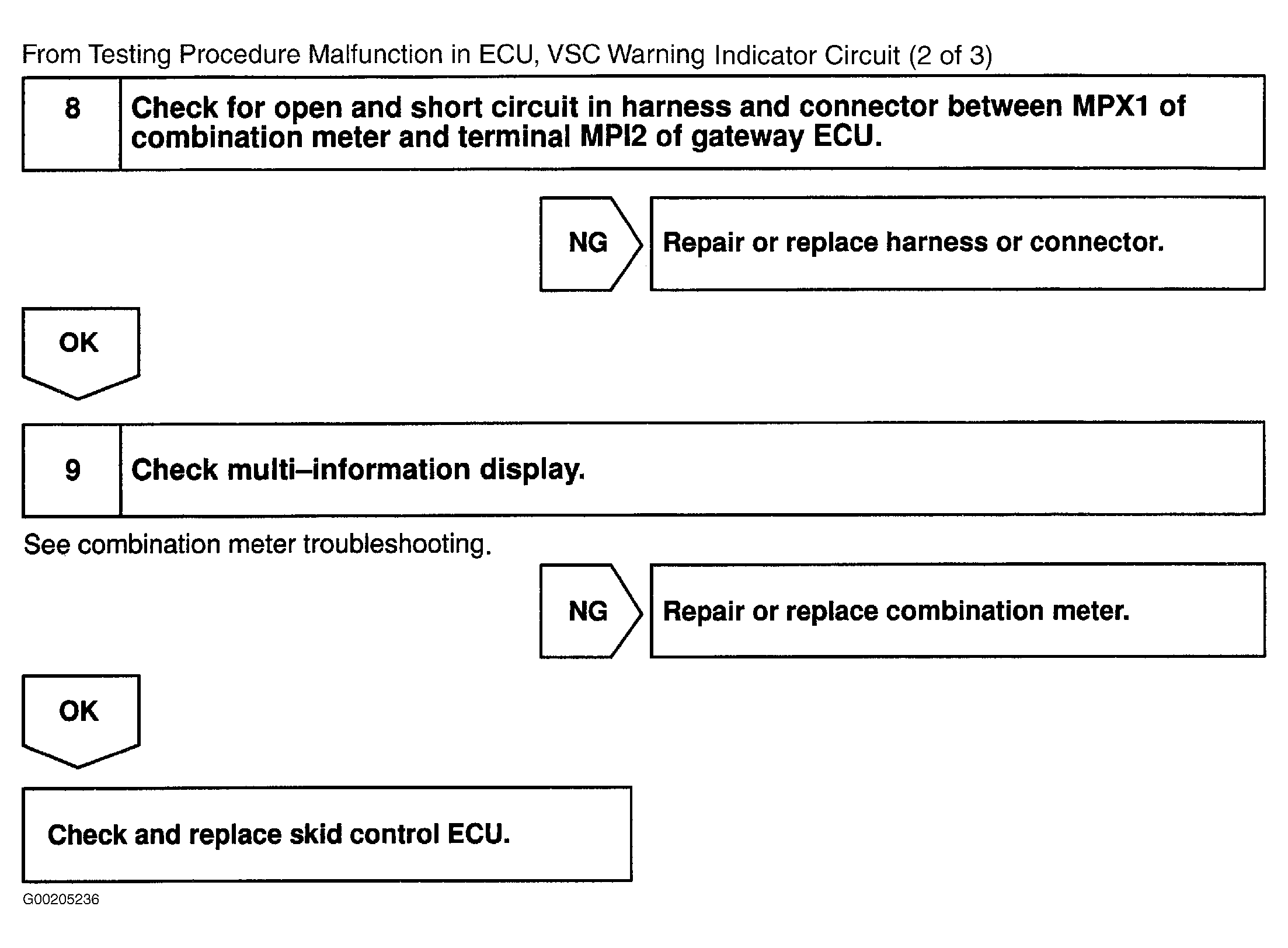

Fig 3: Testing Procedure Malfunction In ECU, VSC Warning Indicator (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

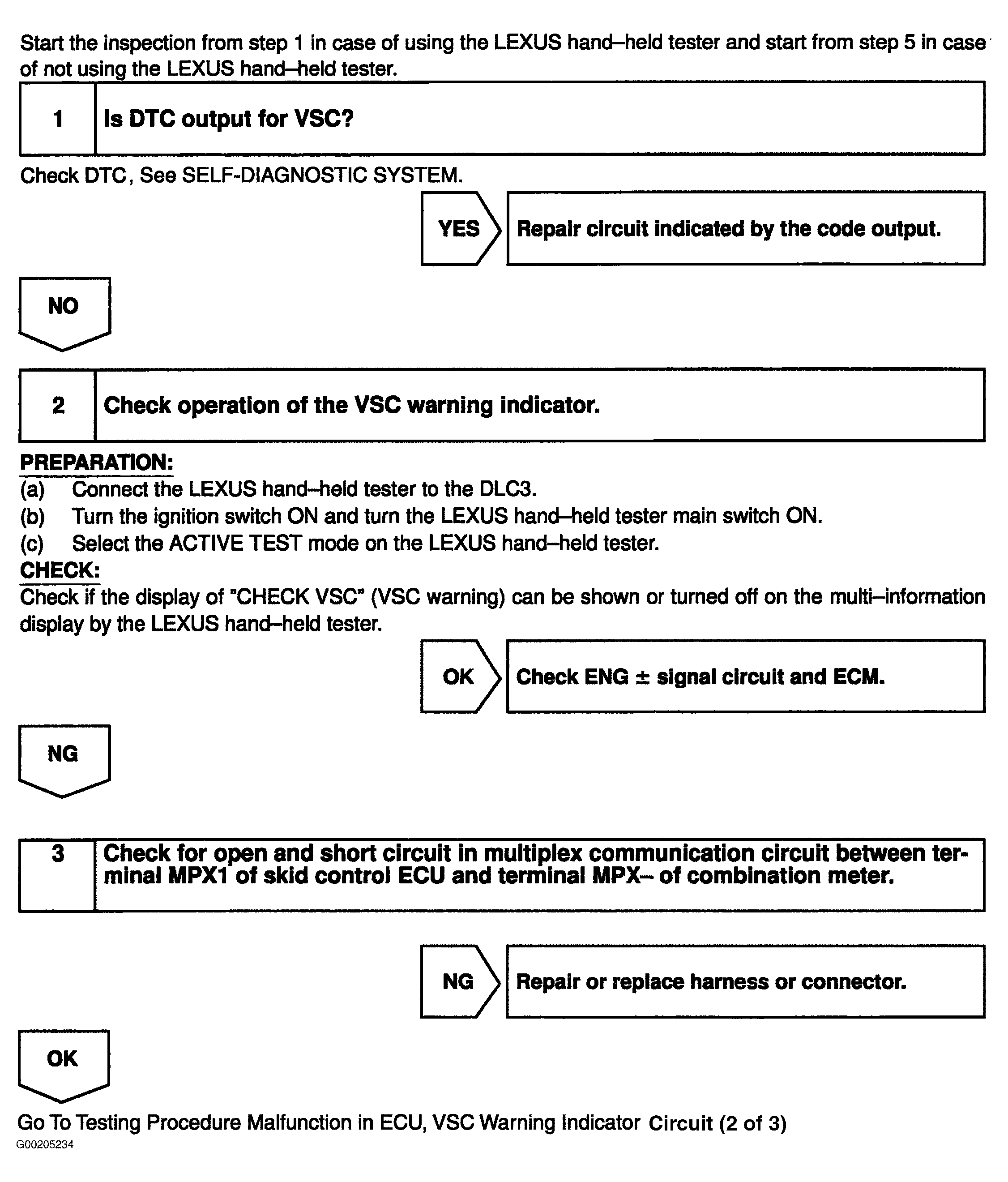

Fig 4: Testing Procedure Malfunction In ECU, VSC Warning Indicator (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
